Home > Products > H.265 PTZ Camera > Network P2P Low Cost H.265 25fps/30fps 4MP/10fps/ 15fps /5MP 20X optical zoom HD IP IR PTZ Camera with wiper

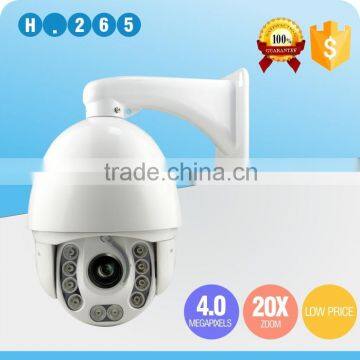

Network P2P Low Cost H.265 25fps/30fps 4MP/10fps/ 15fps /5MP 20X optical zoom HD IP IR PTZ Camera with wiper

FOB Price

US$ 199 - 299 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	AST
Model Number	ASRIH679-020-3042	Type	IP Camera
Style	Dome Camera	Sensor	CMOS
Technology	Pan / Tilt / Zoom	Special Features	Waterproof / Weatherproof

Product Description

Product Pictures

Product Description

Network P2P Low Cost H.265 25fps/30fps 4MP/10fps/ 15fps /5MP 20X optical zoom HD IP IR PTZ Camera with wiper

Camera:
1.1/3” 4.0M Pixel OV4689 CMOS
2.20X optical zoom, auto focus
3.4.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)

Network Features:
1.Main Stream:1-22fps 4.0Megapixels(2592*1520)22fps;( 2304*1296)1-25(30)fps; (1920*1080)30fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P

Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 150M
4. Highest ESD protection against lightning and power surges.
5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.

Form parameters
Mode	Name and Description	H.265 4.0MP HD IP IR High Speed Dome Camera with wiper
Mode	Name and Description	ASRIH679-020-3042
Camera	Image Sensor	1/3” 4.0M Pixel OV4689 CMOS
	Effective Pixels	4.0 Mpixels
	Min. Illumination	Color: 0.001Lux@(F1.6, AGC ON)
	Zoom	20X, f=4.7mm~94mm, D/N( ICR-Cut), F1.6~F3.0
	Day/Night	Day / Night / External control(IR Cut Filter)
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR, ≥73.7dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/2 - 1/20,000s
Network	Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		25921520, 1-22fps; 23041296, 1-25(30) fps; 1920*1080, 1-25(30)fps
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		19201080, 1280720, Close
	Bitrate	CBR/VBR, bitrate: 32Kbps~10Mbps variable
	Audio Compression	G711, PCM
	P2P	Android, IOS
	Protocols	TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
	Motion detect	Support
	Privacy Zone Masking	Support
	Onvif	Onvif 2.4
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	Mini SD Card	Up to 64GB(Optional)
	Alarm I/O	1/1(Optional)
	Audio I/O	1 input (Linear level, Resistance: 1000 Ohm); 1 output (Linear level, Resistance: 600 Ohm);
IR	Luminary	Array Φ20 10pcs
	Night vision distance	150M
	Lamp control	Auto, Manual, by Zoom
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255(soft address and hard address)
	Pan Range	360° continued rotation
	Tilt Range	0~90°(Auto Flip)
	Manual pan speed	0~240º/S
	Manual tilt speed	0~120°/S
	Preset speed	400°/S
	Actual preset Accuracy	±0.10°C
	Preset points	255
	Other function	8 Tour, Intelligent Three dimensional Scan, 8Pattern group, Operation recall, Manual continued Auto Scan
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
General	Work temperature	External–35°C~55°C
	Work Humidity	0%~90% (Non condensing)
	Power	DC12V±10%; 5A
	Consumption	< 50W

Product Effects

Size

Packaging & Shipping

Our Services

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.

FAQ

1. About the sample: How could I get a sample?

Once receive your payment for samples and their express delivery and then send samples

to you. The prices of the samples are the same as those on the pricelist. Express delivery

charge depends on the quantity of the samples.

2. About price list: can I get your price list?

Yes, please tell us the products (with their code number) and order quantity, then we will

offer the price by e-mail. And our price list will keep updated every month.

3. About the shipment: what type of shipment will you use?

We usually ship the products by express delivery to your door or by air freight to your nearest

airport. If the order quantity is large, we may ship by sea container.

4. About payment: what terms of payment do you use?

We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.

5. About the MOQ: What is your minimum order qty?

Our minimum order qty is 20pcs each model, but we accept small order as trial order.

6,About compensation: what is your company's compensation policy?

We can compensate buyer's loss if our products have quality problem. For small qty

problem products, we can replace with new products in next order. For larger qty problem

products, we can accept returned problematic products, then we check them and replace

them by good quality products.

7. About sole-distributor: How can I be your sole-distributor?

We have special policy for sole-distributor. Please contact our sales person to get related files.

8. About OEM: could we place order by OEM style to produce our own brand products in China?

Of course you can. Welcome to do OEM.

If any further problem, welcome to contact our sales person.
