Home > Products > H.265 PTZ Camera > Full Metal Housing H.265 Security 4.0MP Mini 10X zoom HD IR IP PTZ High Speed Dome Camera

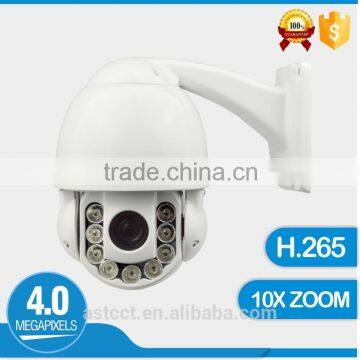

Full Metal Housing H.265 Security 4.0MP Mini 10X zoom HD IR IP PTZ High Speed Dome Camera

FOB Price

US$ 1 - 270 / Piece

1 Piece(Min. Order)

Port Shenzhen port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	AST
Model Number	ASRIH430-010-3044	Type	IP Camera
Style	Dome Camera	Sensor	CMOS
Technology	NetWork	Special Features	Waterproof / Weatherproof

Product Description

Product Name: Full Metal Housing H.265 Security 4.0MP Mini 10X zoom HD IR IP PTZ High Speed Dome Camera

Product Description

Camera:

1.1/3” 4.0M Pixel OV4689 CMOS

2.20X optical zoom, auto focus
3.4.0MP available

4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)

Network Features:
1.Main Stream:(1920*1080)30fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P

Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 120M
4. Highest ESD protection against lightning and power surges.
5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.

Form parameters
Mode	Name and Description	H.265 4.0MP HD IP Mini IR High Speed Dome Camera
Mode	Name and Description	ASRIH430-010-3044
Camera	Image Sensor	1/3” 4.0M Pixel OV4689 CMOS
	Effective Pixels	4.0 Mpixes
	Min. Illumination	Color:0.05Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)
	Zoom	10X , f=5.1mm~51mm, D/N( ICR-Cut) ,F1.6~F1.8
	Day/Night	Day / Night / External control(IR Cut Filter)
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR,≥73.7dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/2 - 1/20,000s
Network	Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		25921520, 1-22fps; 23041296, 1-25(30) fps; 1920*1080, 1-25(30)fps
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		19201080, 1280720, Close
	Bitrate	CBR/VBR, bitrate:32Kbps~10Mbps variable
	Audio Compression	G711,PCM
	P2P	Android,IOS
	Protocols	TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
	Motion detect	Support
	Privacy Zone Masking	Support
	Onvif	Onvif 2.4
	Network	10/100M Base-TX Ethernet, RJ45 Connector
	Mini SD Card	Up to 64GB(Optional)
	Alarm I/O	1/1(Optional)
	Audio I/O	1 input (Linear level, Resistance: 1000 Ohm); 1 output (Linear level, Resistance: 600 Ohm);
IR	Luminary	High power array Led-special IR LED 9pcs
	Night vision distance	80M
	Lamp control	Auto, Manual, by Zoom
Dome Features	CPU Type	32 bit ARM CPU
	Address	0~255(soft address and hard address)
	Pan Range	360° continued rotation
	Tilt Range	0~93°(Auto Flip)
	Manual pan speed	0~200º/S
	Manual tilt speed	0~120°/S
	Preset speed	400°/S
	Preset points	256
	Other function	5Tour, Intelligent Three dimensional Scan,5Pattern group ,Operation recall, Manual continued Auto Scan
	Intelligent power off real time memory	automatic save functions setting ,automatic wake up tour function
General	Work temperature	Indoor: 0°~ +40° ; Outdoor: -40°~ +60°
	Work Humidity	≤95% Non Condensing
	Power	DC12V±10%; 5A
	Consumption	< 50W

Packaging & Shipping

Packaging: Standard paper box packing + carton packing
Shipping: 3-7days since payment arrived

Connection

Our Services

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
