Home > Products > New Products > BONENS RI00 Chip Component Resistor
BONENS RI00 Chip Component Resistor
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | Bonens | |
| Model Number | RI00 chip resistor | Type | Variable Resistor | |
| Technology | Carbon Film | Package Type | Surface Mount | |
| Resistance | 1~500Ω | Resistance Tolerance | ±5% | |
| Rated Power | 1~1000W | Temperature Coefficient | ±300*10-6/℃ | |
| Operating Temperature | -55℃~+165℃ |
Product Description
Specifications
1,high power resistor2,1ohm--500ohms
3,RoHS compliant
4,RUV certification
5,free sample and high quality
Details of Products:
•Products of special resistance and specifications are provided. |
•Products of special standing wave ratio should be given a clear indication in contracts. |
•Special requirements of standing wave ration is tested and chosen only for products of 50Ω. |
•Products are corresponded to the standard of GB/T5729-94. |
•Any special requirement is appreciated. |

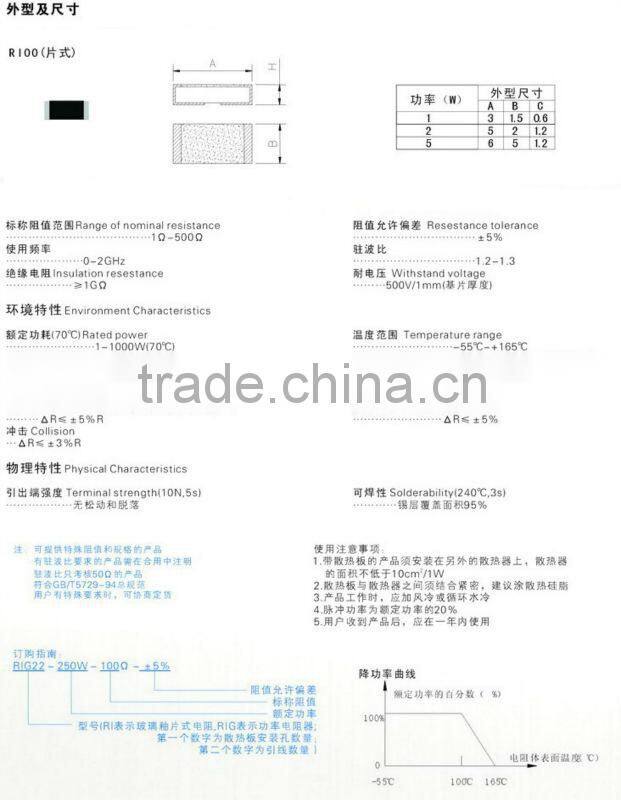

Electrical Characteristics |
Range of nominal resistance: 1 ~500Ω |
Frequency range: 0~2GHz |
Insulation resistance: ≥ 1GΩ |
Resistance tolerance: ±5% |
Standing wave ratio: 1.2~1.3 |
Withstand voltage: 500V/1 mm (Substrate thickness) |
Environment Characteristics |
Rated power: 1~1000W (70°C) |
TCR: ±300×10-6/°C |
Moisture proof (GJB306A-96-Method106): ΔR≤±5%R |
Test at low temperature (-55°C, 24h): ΔR≤±5%R |
Collision: ΔR≤±3%R |
Temperature range: -55°C~+165°C |
Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R |
Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage |
Load life (96): ΔR≤±5% |
Some parts of our certificates
Advantage of choosing our company and products:

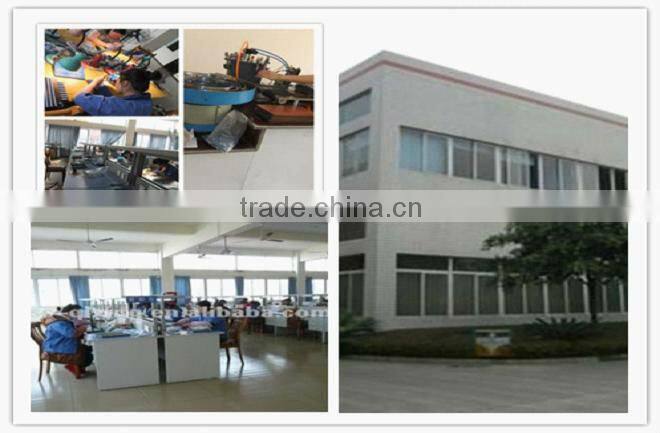

- Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wire-wound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.
- The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
- Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
- Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .
Our partners:
CHANGHONG
TAIWAN KEZHENGXIN ELECTRONICS CO.
XI’AN HONGXING ELECTRONICS CO.
JIALING MOTORCYCLE
KLS ELECTRONIC CO., LTD.
The Scope of Products:
The Work Flow:
Contact Us
- Sichuan Qixing Electronics Co., Ltd.
- Contact namesonya xu Chat Now
- Phone86-028-82767470
- Address two sides across the Taiwan Strait science and technology garden small and medium-sized enterprise gardenWenjiang area, Chengdu, Sichuan
