3329X single turn trimmer potentiometer 100K ohm
- 1000000 Piece / Pieces per Month
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Sichuan, China | Brand Name | BONENS | |
Model Number | 3329X | Type | Trimming Potentiometer | |
Technology | Cermet | Resistance | 10Ω~5MΩ | |
Resistance Tolerance | ±10% | Rated Power | 0.5W | |
Max. Operating Voltage | 300V | Operating Temperature | -55℃~+125℃ |
Product Description
Specifications
1.3329 trimmer potentiometers2.resistance tolerance:10%
3.single-turn
4.rated power:0.5W
5.Welcome trial order

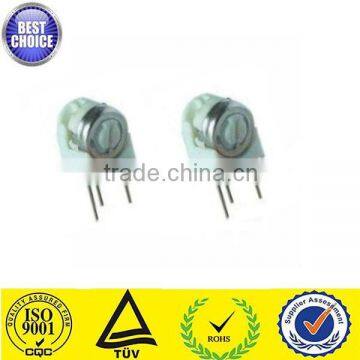

1.pictures of 3329X potentiometer
2. Drawing of 3329X potentiometer
3. Specifications and features of 3329 potentiometer
3329 trimmer potentiometer | ||||||
Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
Resistance tolerance | ±10% | |||||
Terminal resistance | ≤±1%R or 2Ω | |||||
Contact resistance variation (CRV) | ≤±1%R or 3Ω | |||||
Insulation resistance | ≥ 1GΩ (100V AC) | |||||
Withstand voltage | 250V (DC or AC peak value) | |||||
Effective electrical travel | ≥200° | |||||
Environment Characteristics | Rated power | 0.5W ( 300V max) | ||||
Temperature range | -55°C~+125°C | |||||
TCR | ±250×10-6/°C | |||||
Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |||||
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |||||
Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω), Insulation Resistance ≥100MΩ | |||||
Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |||||
Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |||||
Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | |||||
Physical Characteristics | Total mechanical travel | 280°±10° | ||||
Starting torque | ≤20mN.m | |||||
Stopper torque | ≤50mN.m | |||||
Standard package | 50 pcs /tube |
4.3329 Series potentiometer
5.Sample
1.can provide sample
2.1-10 pcs free sample
3. Need 1-2 working days
4. Can meet the special requirements,such as brand
6.Work Flow
7.Certificate
For more information, pls don't hesitate to contact us!
Skype ID :serena.shu16
QQ ID : 1153409713
Mobel:86-15680731820
