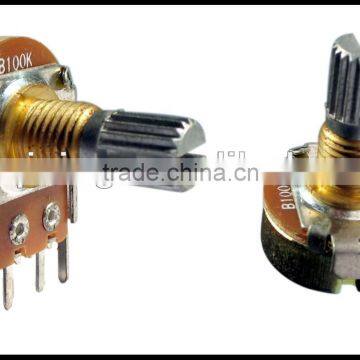

dual gang rotary potentiometer
- shenzhen
- T/T Credit Card PayPal
You May Like
-
WH148 carbon film preset 10k linear rotary potentiometer
-
WH148 16mm linear 5k rotary dual potentiometer
-
High quality 15mm carbon film preset trimming linear 5k potentiometer
-
PT10 10mm linear carbon film preset 10k ohm potentiometer
-
15mm long knob PT15 trimmer 10k carbon film preset potentiometer
-
Carbon film RoHs wx118 rotary potentiometer
Product Details
| Place of Origin | Sichuan, China | Brand Name | Bonens/BTR | |
| Model Number | WH148 potentiometer | Type | Rotary Potentiometer | |
| Technology | Carbon Composition | Resistance | 5KΩ~2MΩ | |
| Resistance Tolerance | ±20% | Rated Power | 0.125W | |
| Max. Operating Voltage | 200V AC | Operating Temperature | -55~125 |
Product Description
Specifications
1,WH148 rotary potentiometer2,5K~2M ohm
3,Carbon Film Potentiometer
4,high quality and best price
5,welcome trial order
Details of Products:
Mechanical specifications:
Total rotation angle | 300°±5° |
Rotation torque | 2~20mN.m(20~200gf.cm)
|
Shaft stop strength | 6Kgf.cm |
Push pull strength | 60N |
Electrical specifications:
Total resistance | 5KΩ~2MΩ |
Resistance taper | A,B,C |
Rated wattage | Curve B:0.125W Other curve B:0.063W |
Max operating voltage | Curve B:200V AC Other curve B:150V AC |
Insulation resistance | More than 100MΩat DC500V |
Dielectric | AC500V,1min |
Resistance tolerance | ±20% |
Rotational noise | ≤47mV |
Residual resistance | R≥250KΩ0.1%max of total resistance 250KΩ>R>10KΩ 20Ωmax 10KΩ≥R 10Ωmax |
Tracking error | ~-40db±3db |
Mechanical life:
Rotary life | 10,000cycles |
Some Main Products:
Advantage of choosing our company and products:
- Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wire-wound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.
- The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
- Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
- Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .
