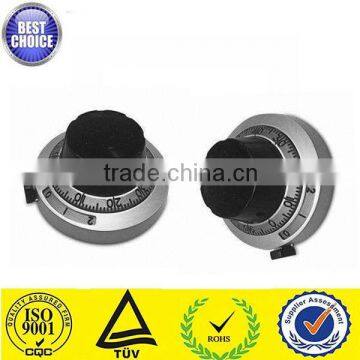

WXD3590 and WXD3540 potentiometer knob soft
USD $0.98 - $1.5
/ Piece
100 Pieces(Min.Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | Bonens | |
| Model Number | WXD3590 potentiometer | Type | Rotary Potentiometer | |
| Technology | Ceramic Composition | Resistance | 10 ohm~5M ohm | |
| Resistance Tolerance | +-5% | Rated Power | 2W | |
| Max. Operating Voltage | 500V | Operating Temperature | -55°C~+125°C |
Product Description
Specifications
1.10 ohm~5M ohm2. multiturn 3590 Trimmer Potentiometer
3. RUV certification
4. RoHS ISO compliant
5. competitive price
Details of potentiometer:
| Electrical Characteristics | Range of nominal resistance | 100Ω~100KΩ |
| Resistance tolerance | ||
| ±2%, ±5% | ||
| Terminal resistance | ||
| ≤±0.2%R or 5Ω | ||
| Peak Noise | ||
| ≤100Ω | ||
| Insulation resistance | ≥ 200MΩ (100V AC) | |
| Withstand voltage | 500V (DC or AC peak value) | |
| Electrical angle | 3600° ± 10 ° | |
| Environment Characteristics | Rated power | 2W ( 300V 70 °C ) |
| Temperature range | -55°C~+125°C | |
| TCR | ±100×10-6/°C | |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | |
| Electrical endurance (2W, 1000h) | ΔR≤± 3%R | |
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m | |
| Physical Characteristics | Total mechanical travel | 3600° ± 10 ° |
| Rotational torque | 2-10mN.m | |
| Standard package | 50 pcs /box | |
