Home > Products > Carbide plate > cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims for Insert
cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims for Insert
- 600 Ton / Tons per Month
- ShangHai/ShenZhen
- T/T Credit Card
You May Like
Product Details
Place of Origin | Hunan, China | Brand Name | Kerui | |
Model Number | Various | Alloy Specification | K10,K20,K30,K40 | |
Particle | 0.5-5.0um |
Product Description

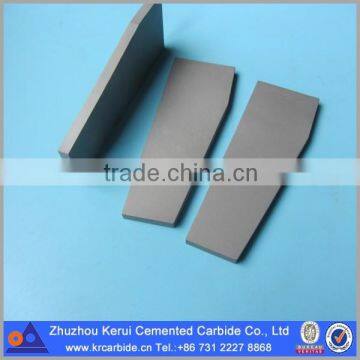

cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims for Insert
Kerui cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims for Insert,made from 100% virgin tungsten carbide raw materials.It can be used in wide application field. Kerui carbide of sintered carbide plate have high hardness, good red hardness,excellent wear resistance, High Elasticity Modulus and compressive strength.The chemical properties of our tungsten carbide plates is stable,also the impact toughness & dialatation coefficient is low. The heat-conducting property and electrical conductivity of tungsten carbide plate is close to iron or iron alloy.
It is a very good material to produce the parts to resist high temperature & corrosion, also it is widely used as wear parts and shielding parts. We provide you high quality sintered carbide plate which can enhance your productivity and save your cost.
Types of cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims for Insert:
Grade: K10,K20,K30,K40,
Surface: in Blank(unground) finish.
Usage: for cutting general wood, hard wood, and aluminum section bar, brass rod and cast iron.
Blank of K10,K20,K30,K40 cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims for Insert:
Grinding of cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims:
Other types of cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims:
Sizes of cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims for Insert:
unit:mm
Length | width | thickness | Length | width | thickness |
210 | 15 | 3.6 | 40 | 10 | 2 |
210 | 12 | 3.6 | 310 | 30 | 4 |
100 | 8.2 | 8.2 | 310 | 10 | 4 |
92 | 15 | 5 | 100 | 8 | 8 |
90 | 12 | 10 | 210 | 18 | 3.6 |
90 | 10 | 5 | 210 | 20 | 4.2 |
78.5 | 6.5 |
| 210 | 25 | 4.2 |
67 | 15 |
| 38 | 38 | 20 |
63 | 4.2 |
| 60.5 | 15 | 2.4 |
60 | 15 |
| 45 | 36 |
|
56 | 15 |
| 100 | 8 | 4 |
52 | 6.5 |
| 100 | 3 | 3 |
50 | 5 | 5 | 80 | 14.1 | 3 |
50 | 8 |
| 80 | 13.3 | 3 |
Customized design is available.
Grades of cemented carbide blank plates,tungsten carbide wear plate,High Quality Carbide Shims:
Grade | ISO Grade | WC % | CO % | Grain Size | Density | Rockwell Hardness | Vickers hardness | Bending Strength | Application field | |
g/cm3 | HRA | HRC | HV | N/mm2 | ||||||
GB16 | K20 | 92 | 8 | 1.6 | 14.7 | 90 | 76 | 1432 | ≥3500 | silicon steel sheet,upper mould |
GB22 | K30 | 89 | 11 | 1.6 | 14.3 | 88.5 | 73 | 1250 | ≥3650 | Silicon steel sheet of upper mould, The upper and lower mould of cold-rolled sheet materials |
GB30 | K40 | 85 | 15 | 1.6 | 14 | 87 | 70.4 | 1100 | ≥3800 | The upper and lower mould of Silicon steel sheet and Cold-rolled sheet. |
GB40 | K40 | 80 | 20 | 1.2 | 13.7 | 84.5 | 66 | 900 | ≥4200 | The upper and lower mould of silicon steel sheet(it is good choose for thick plate with high pressure resistance) |
Grade | ISO Grade | WC % | CO % | Grain Size | Density | Rockwell Hardness | Vickers hardness | Bending Strength | Application field | |
g/cm3 | HRA | HRC | HV | N/mm2 | ||||||
GB05 | K10 | 94 | 0.8 | 1 | 14.9 | 91.55 | 78.4 | 1600 | ≥3200 | For machining copper,aluminum and non-ferrors metal plate |
GB06 | K20 | 92 | 0.8 | 1 | 14.7 | 90.5 | 77 | 1500 | ≥3600 | For machinings copper pieces,aluminum pieces etc. |
GB07 | K40 | 87 | 1 | 1 | 14.3 | 88.5 | 73 | 1250 | ≥3850 | Has widely usage, like for copper pieces,aluminum sheet etc. |
GB08 | K40 | 85 | 1 | 2 | 14 | 88 | 72.2 | 1200 | ≥4000 | Processing for EI pieces,SPCC/stainless steel sheet etc. |
Product Advantages:
1,high speed tool steel
2,well-distributed carbide
3,good toughness
4,high abrasive resistance and hardness
1. How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
2. What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
3. What’s your delivery time?
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to push the production and shorten the delivery time.
