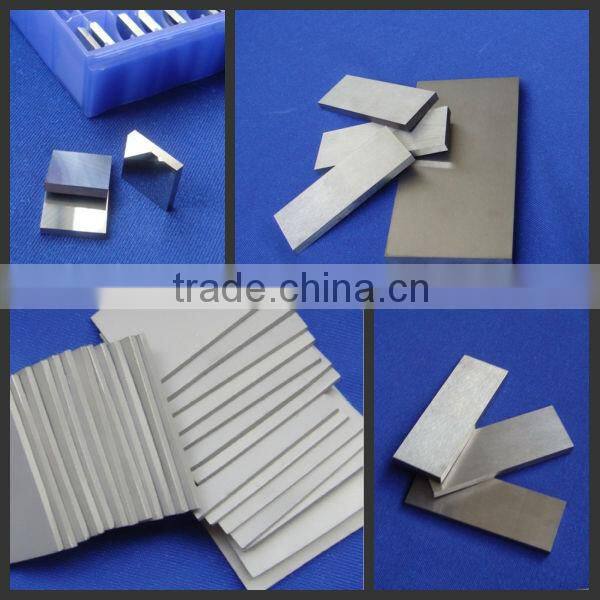

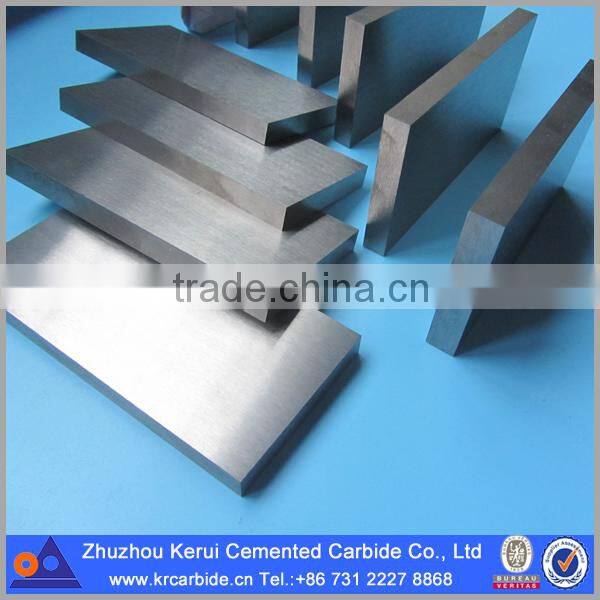

Grinding of Tungsten Carbide Board for IC Moulds

Kerui tungsten carbide board,made from 100% virgin tungsten carbide raw materials.It can be used in wide application field. Kerui tungsten carbide board have high hardness, good red hardness,excellent wear resistance, High Elasticity Modulus and compressive strength.The chemical properties of our tungsten carbide plates is stable,also the impact toughness & dialatation coefficient is low. The heat-conducting property and electrical conductivity of tungsten carbide plate is close to iron or iron alloy.

It is a very good material to produce the parts to resist high temperature & corrosion, also it is widely used as wear parts and shielding parts. We provide you high quality tungsten carbide plate which can enhance your productivity and save your cost.

Types of tungsten carbide board:

Grade:K10, K20,K30,K40,

New of Hot selling Size in 100x50.3x8.15mm,

Usage: widely used in machinery like for making IC moulds,

Advantage: with superior strength, toughness, and wear resistance

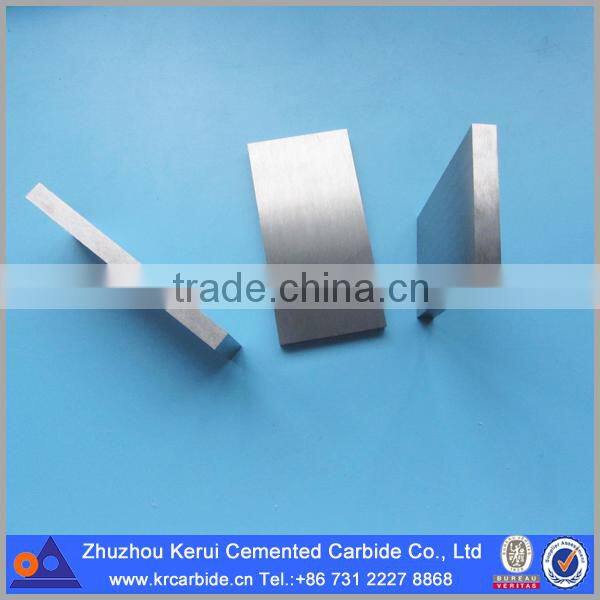

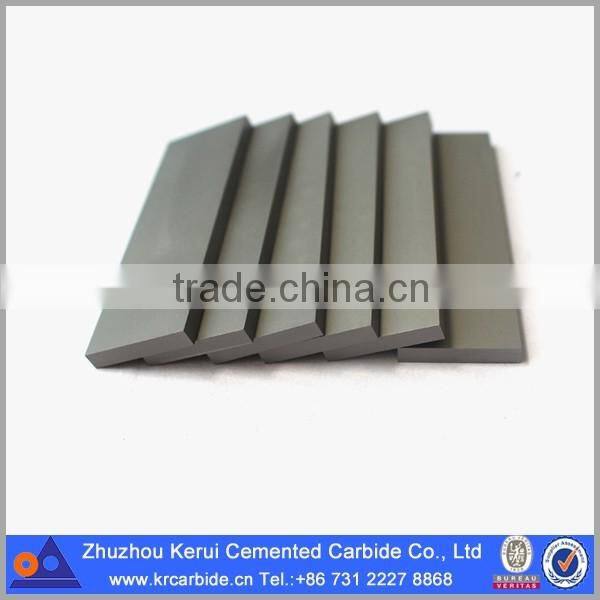

Blank of tungsten carbide board:

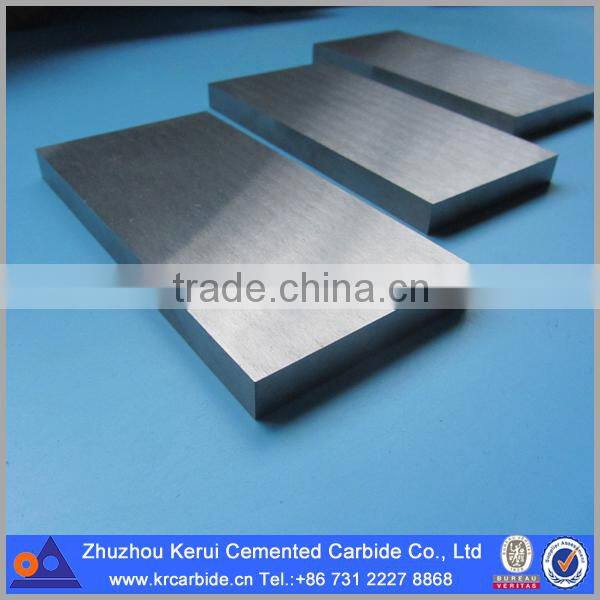

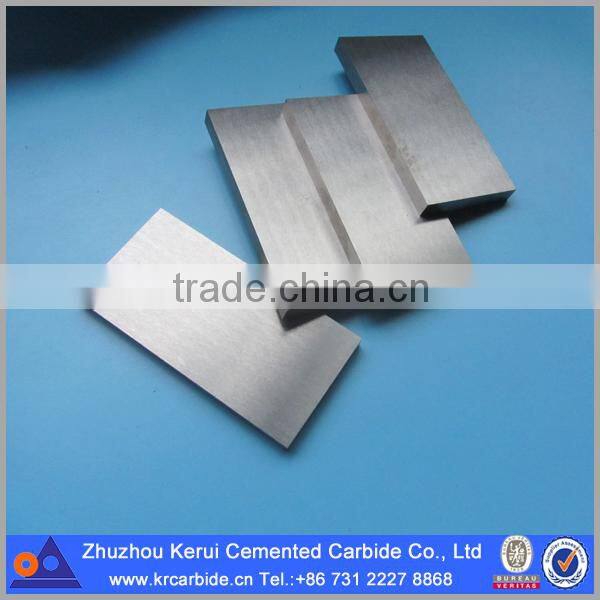

High polished tungsten carbide board in grinding surface:

Other types of tungsten carbide board may be offered according to customers' requirement.

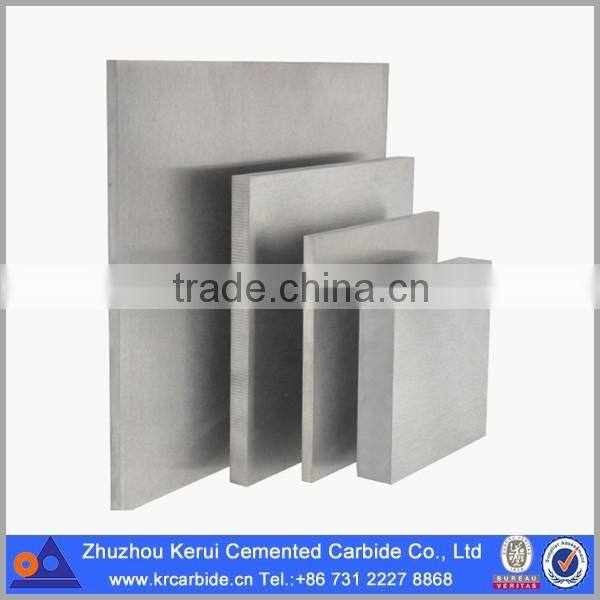

Sizes of tungsten carbide board:

Unit:mm

Customized design is available.

Grades of tungsten carbide board for IC molds

Grades of tungsten carbide board for molds of electric motor

Product Advantages:

1,high speed tool steel
2,well-distributed carbide
3,good toughness
4,high abrasive resistance and hardness

Features of Tungsten Carbide Board

Tungsten carbide also called hard metal, It is a class of materials widely used in machinery because of its superior strength, toughness, and wear resistance. The physical properties (hardness, TRS) of tungsten carbide are at least 3 times high than steel. it can take high pressure.

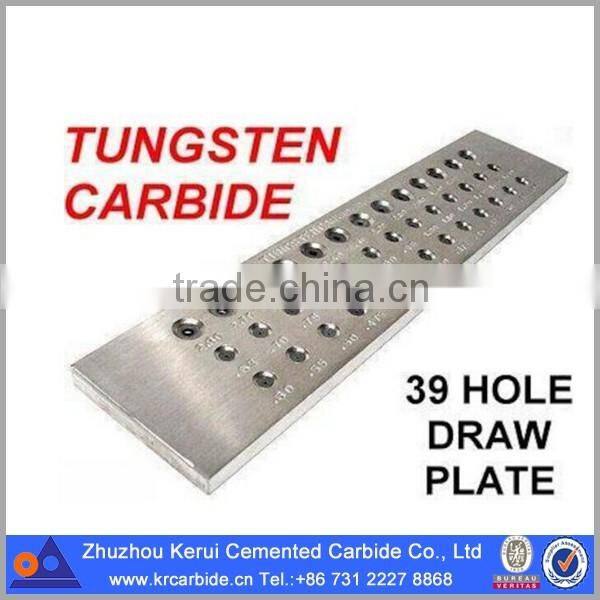

1) Tungsten carbide draw plate round holes
2) 24 holes: 0.26 - 1.00
3) 39 holes: 0.26 - 2.80
4) 24 holes: 2.30 - 6.00 large shape.

Hard metal plates are commonly used as the material of various tool parts. High densities, hardness, meet the ISO standard.
