Tungsten Carbide Turning Inserts With Coating TICN/AL 203

tungsten carbide turning inserts with Coating TICN/AL 203

 Product introduction:

Product: Tungsten Carbide turning inserts

Type: CNMG

Recommend Grade: YBG202, YBC151, YBC251..

Coating: MT-TICN / Al 203;

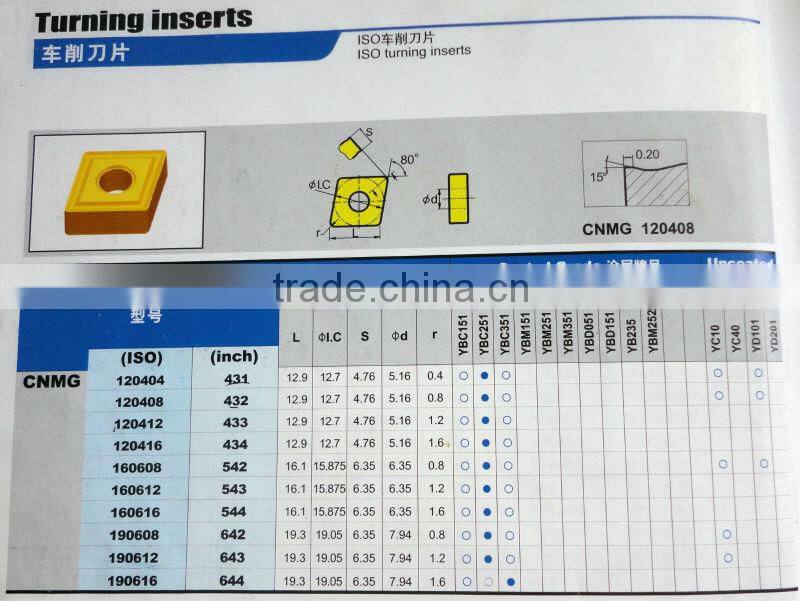

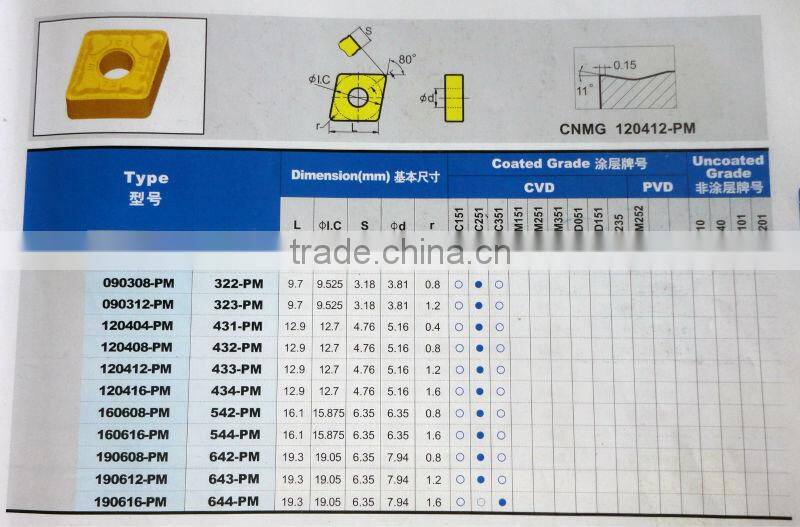

ISO Dimension Chart:

L: 12.9mm;

IC: 12.7mm;

S: 4.76mm;

D: 5.16mm;

r: 0.8mm

Max Turning Depth: 8.6mm.

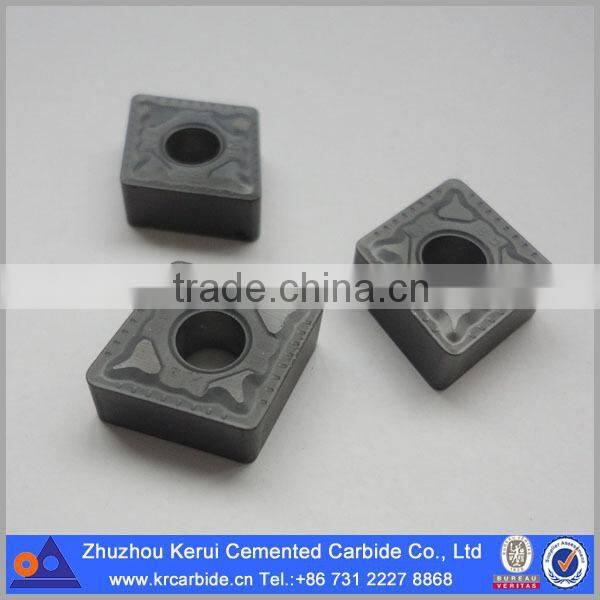

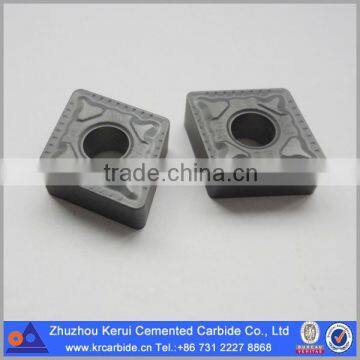

Tungsten Carbide turning inserts of Product picture:

Tungsten Carbide turning inserts Product application:

It is used for turning machine.

Application field:

High abrasion proof of Basic with MT-TICN/AL 203,TIN of coating processes.

It is suitable for turning Steel, Stainless steel, Cast iron, metal etc.

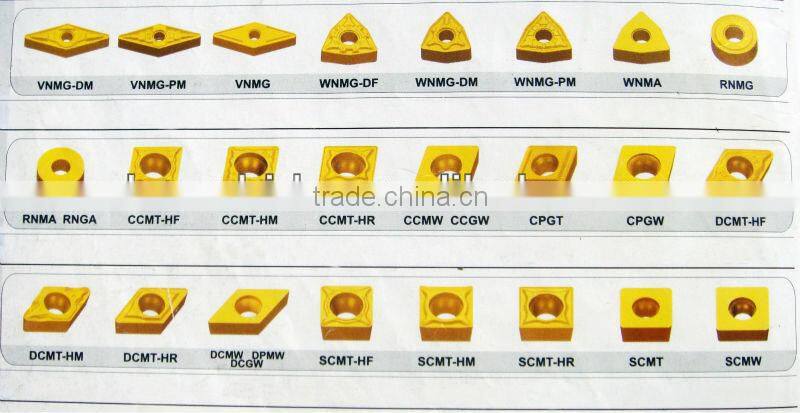

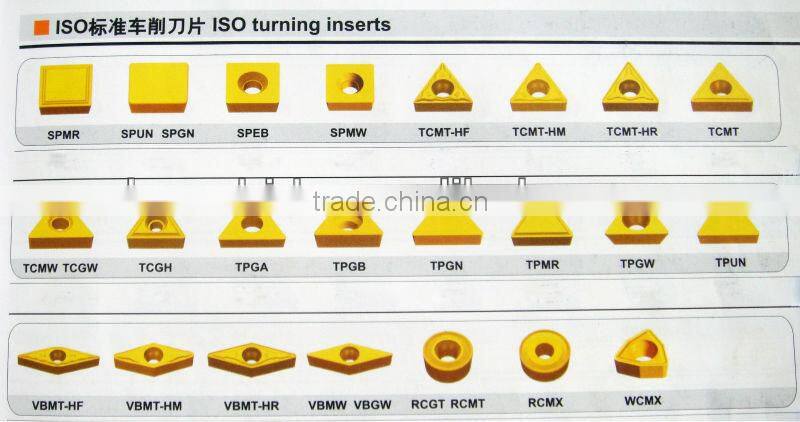

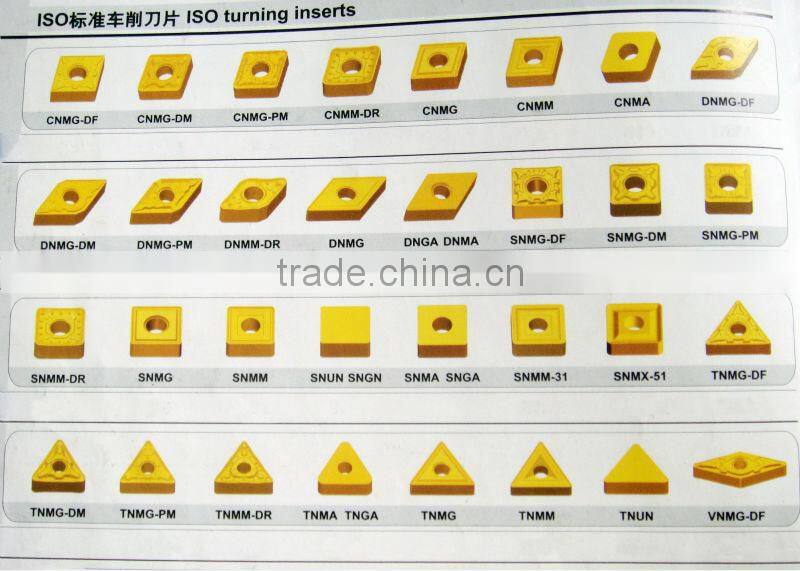

Other types of Tungsten carbide turning inserts:

 Physical and mechanical properties of main grades:

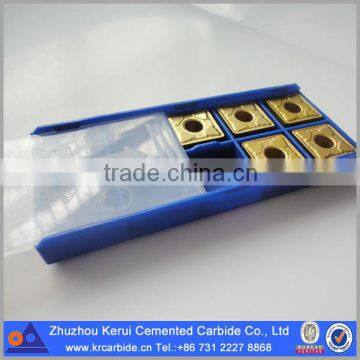

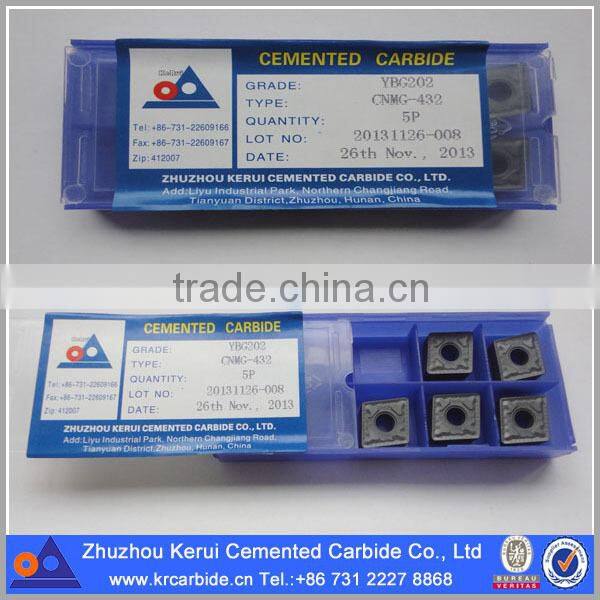

Reference packaging:

Interior packaging: plastic or paper box interior, (10pieces can packing in a plastic box)

Exterior packaging: carton or wooden case.

Also could be customized.

 Product advantages:

1)     efficient machining, good high-temperature stability;

2)     easy to assembly, no crack or chipping;

3)     smooth surface with beautiful and nice coating.

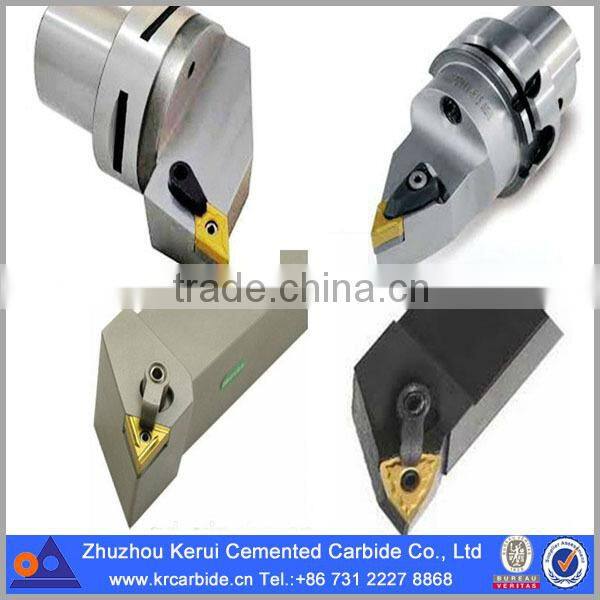

 Tips for use of turning machine/turning tool holders:

1)     structure of turning inserts should have enough rigidity;

2)     the turning inserts should be fixed strongly onto the holder;

3)     check and ensure good condition/suitable of the turning tool holder before fix the turning inserts;

4)     With two sides of high strength edges, Can be applied to unstable working condition of semi-finishing.

Company profile:

Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer

located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this

field for over 10 years, we have reach experience in production and research of carbide products.

We are also an assessed supplier by Alibaba and BV.

Our tungsten carbide products are exported to USA, Canada, Russia, Romania, Italy etc.

 Factory picture:

 Production process:

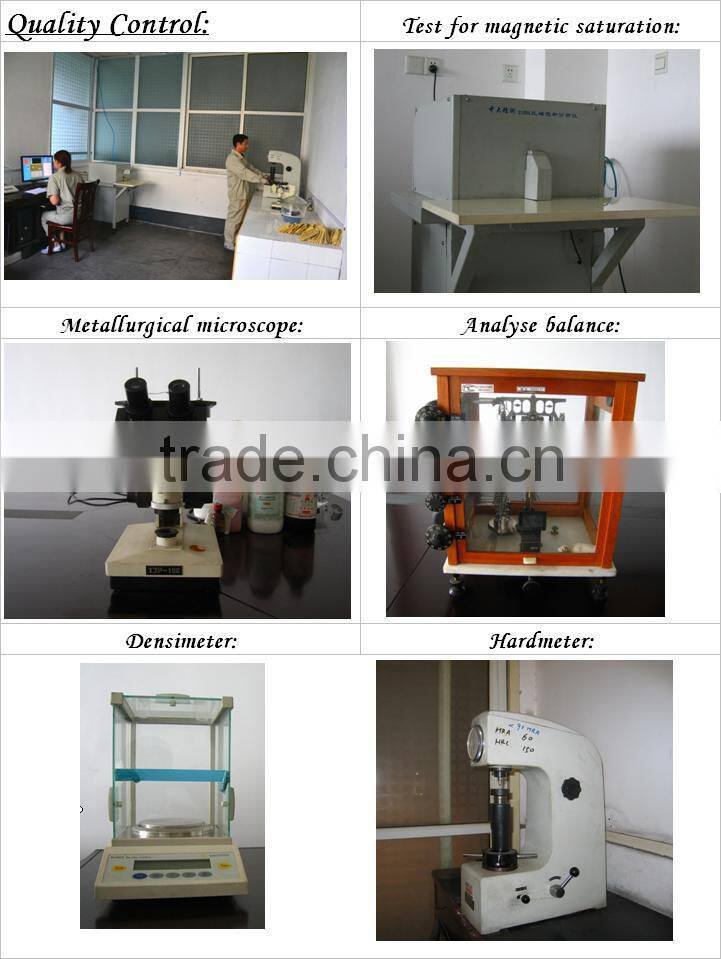

Quality inspection instruments:

Quality control:

1. All raw materials are tested in terms of density, hardness and T.R.S before use.

2. Every piece of product goes through in-process and final inspection.

3. Every batch of product can be traced.

Guarantee:

 Full payment refund if any quality problem.

Transaction process:

Inquiry => product conformation => quotation => price and terms => advance payment =>

Production => balance payment => delivery => after sales service

 Payment method:

 Transportation mode:

 By express, by air, by road, by railway, by sea etc.

 Our main markets:

North America: USA, Canada, Mexico

South America: Brazil, Peru, Chile

Europe: Italy, Spain, Russia, Poland, Romania, Azerbaijan, Germany

Mid East: Egypt, Turkey, Lebanon

Africa: Kenya, South Africa

FAQ:

Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.

Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.

Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below

50kg or 2000USD.

For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to

push the production and shorten the delivery time.
