Center Hole Tungsten Carbide Inserts for Metal Working
- ShenZhen/ShangHai
- T/T Credit Card
You May Like
-
Zhuzhou Tungsten Carbide Substrates for PDC With Special Small Dot on the Top of Surface
-
Tungsten Carbide Cutter Blade
-
SNEX 1207 Carbide Inserts
-
Round Carbide Turning Insert for Wood Cutter in 8mm Diameter and 12mm Diameter With TORX Headind Screws
-
Pipe and Tube Carbide Cutters
-
Tube Cutting Carbide Block
Product Details
| Place of Origin | Hunan, China | Brand Name | Kerui | |
| Model Number | Various | Alloy Specification | K0,K20,K30,K40,P0,P20 | |
| Particle | 1.0-1.25 |
Product Description

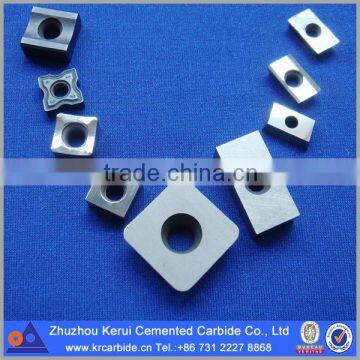

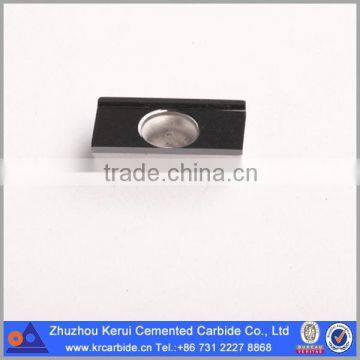

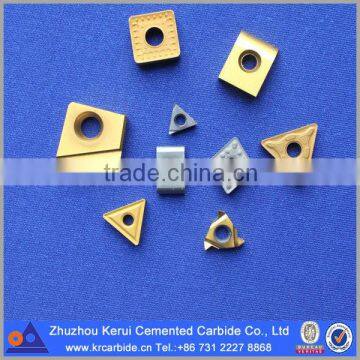

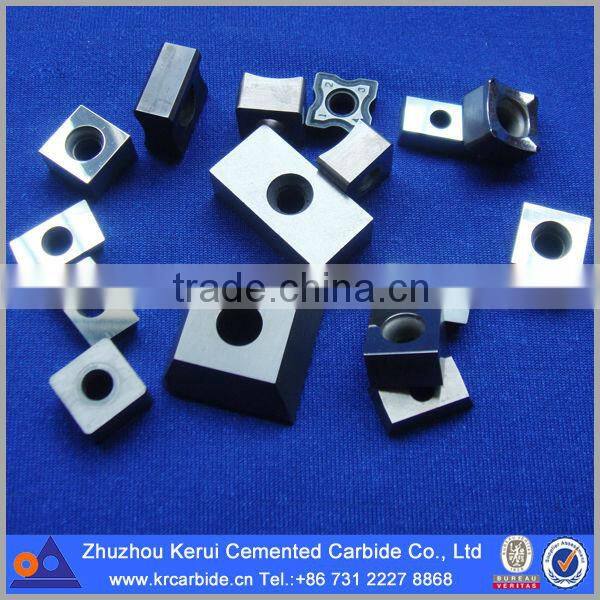

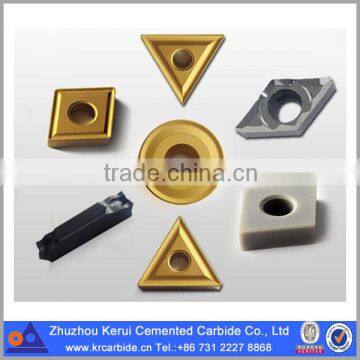

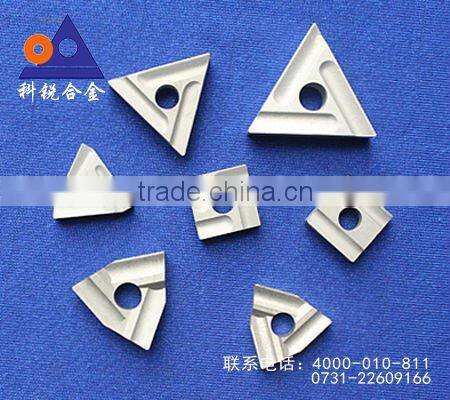

Center hole Tungsten Carbide Inserts for metal working
A# Tungsten Carbide inserts
are mounting on the turning or milling machine for metal working:
B#Tungsten Carbide inserts
are replaceable and usually indexable bits of cemented carbide used in machining steels, cast iron, high temperature alloys, and nonferrous materials. Carbide inserts allow faster machining and leave better finishes on metal parts. Carbide inserts can withstand higher temperatures than high speed steel tools.

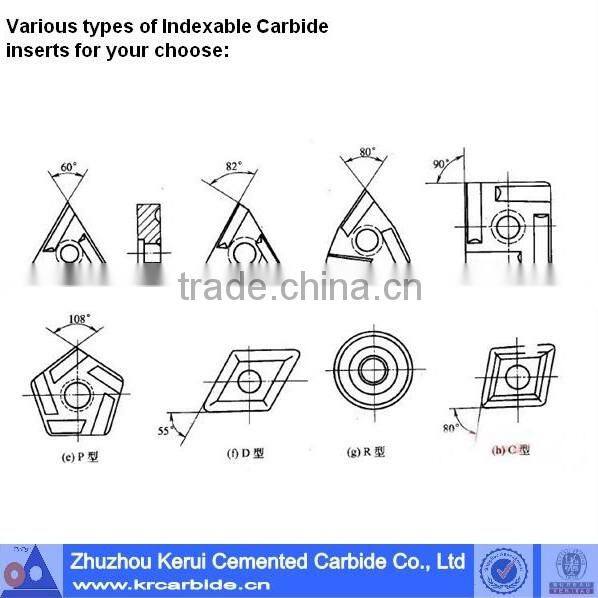

Various Indexable tungsten carbide inserts for your choose:
Physical and mechanical properties of grades for Indexable tungsten carbide inserts and their applications recommended:
| ISO Code | Grade | Density | Hardness | T.R.S | Performance & application recommended |
| g/cm3 | HRA(HV) | MPα | |||
| K05 | YG3X | 15.1 | 91.5 | 1300 | Suitable for the finishing of cast iron and nonferrous metals and Yd05 can be used for the machining of hardening steel. |
| YG3X | 15 | 90.5 | 1300 | ||
| K10 | YG6X | 14.8 | 91 | 1560 | For the finishing & semi-finishing of cast iron and non ferrous metals and also for the machining of manganese steel and hardening steel. |
| YG6A | 14.7 | 91.5 | 1510 | ||
| K15 | YG6 | 14.9 | 89.5 | 1670 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| K20 | YG8 | 14.6 | 89 | 1840 | |
| M10 | YS2T | 14.4 | 91.5 | 1960 | Suitable for the finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YM10 | 12.2 | 91.5 | 1350 | ||
| YW1 | 13 | 91.5 | 1290 | ||
| M20 | YW2 | 12.9 | 90.5 | 1460 | the grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
| P10 | YT05 | 12.6 | 92.5 | 1260 | Suitable for the finishing and semi-finishing of steel and cast steel with a moderate feed rate and a rather high cutting speed. |
| YT15 | 11.3 | 91 | 1300 | ||
| P25 | YT14 | 11.4 | 90.5 | 1400 | Suitable for the finishing and semi finishing of steel and cast steel. YS25 is specially used for the milling of steel and cast steel. |
| YS25 | 13 | 90.5 | 1780 | ||
| P25 | YT5 | 12.8 | 89.5 | 1570 | suitable for the heavy duty rough turning of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions |
| P40 | YC45 | 13.1 | 1320 | 1650 | Suitable for the heavy duty turning of steel and cast steel with a big feed rate and also for face milling. |
1. How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
2. What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
3. What’s your delivery time?
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to
push the production and shorten the delivery time.
