SHENZHEN Semi- Automatic Thermoforming Plastic Lids Machinery
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Automatic Vaccum Forming Machine, Vacuum Thermoforming Machine For Sale
-
Clamshell Box Making Machine Double Station
-
Plastic Clamshell Making Machine Clamshell Forming Machine
-
Clamshell Forming Making Machine China Factory Supply
-
Blister Forming Machine for PVC Blister Tray Packing
-
Small Thermoforming Machine Plastic Plate Forming Machine
Product Details
| Condition | New | Type | Vacuum Forming Machine | |
| Plastic Type | PVC | Product Type | Blister | |
| Automatic | No | Place of Origin | Guangdong, China | |
| Brand Name | HX High Quality Thermoforming Plastic Lids Machinery | Model Number | HX-61B | |
| Voltage | AC380V 50Hz | Power(W) | 12.5KW | |
| Weight | 600kg | Dimension(L*W*H) | L1600*W720*H1900mm | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SHENZHEN Semi- Automatic Thermoforming Plastic Lids Machinery To Different Country!!!
Pls check the following link to view the working vedio of the machine
/watch?v=ysVVZU_JRKA&feature=autoshare

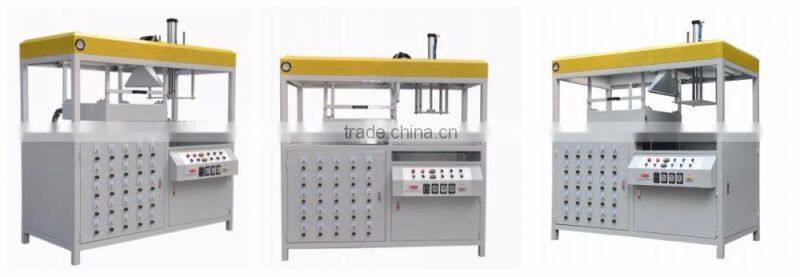

HX-61 Semi Automatic Vacuum Forming Machine:
could pack products of various specifications by vacuum forming. It is suitable for plastic material like PVC, PET, PE, PP, HIPS, ABS etc.This model machine is fine workmanship,simple mechanism,easy to operate,steady performance,suitable for producing products in miniature.

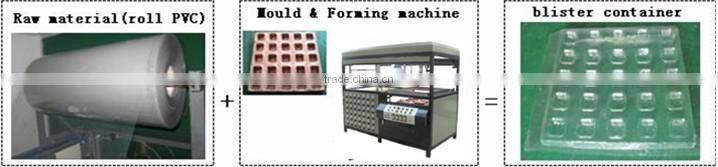

Forming Moulds Copper mould + PVC Plastic Sheet = Forming finished product
Basic units:
1. Programmable logic control
2. Digital temperature controllers
3. Radiant heater panel heating system
4. Automatic oven drive with deceleration system
5. Manual film clamp frame
6. Automatic cooling blower(s)
7. Automatic positive displacement vacuum system
8. Automatic blow-off system
9. Steel components polyurethane coated
10. Far infrared ray heating system, micro-adjustable temperature control
Main Parameter
| Model | HX-61B |
| Power Supply | 380V/3 phases,220V/ Phase |
| Max.forming area | 560*610mm |
| Height of Forming | 150mm |
| Power | 12.5KW |
| Capacity | 200-380times/hour |
| Machine size | 1600*720*1800mm |
| Materials wide | 610mm |

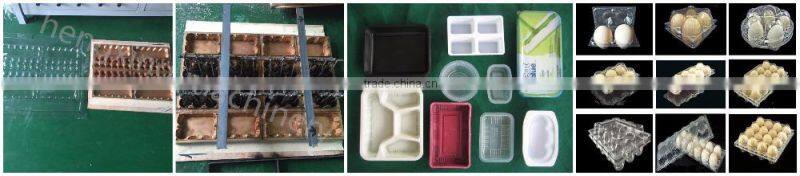

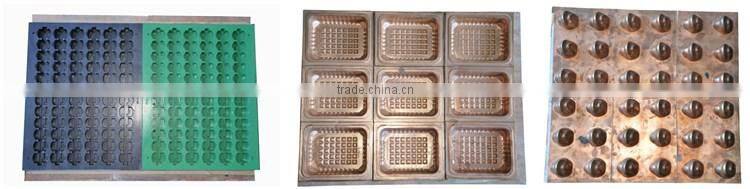

Mould and Samples

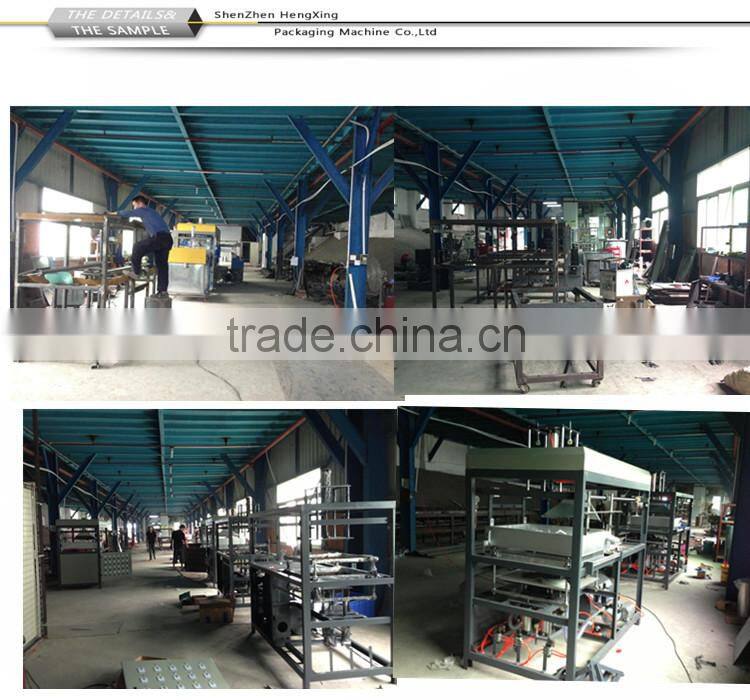

Factory overview

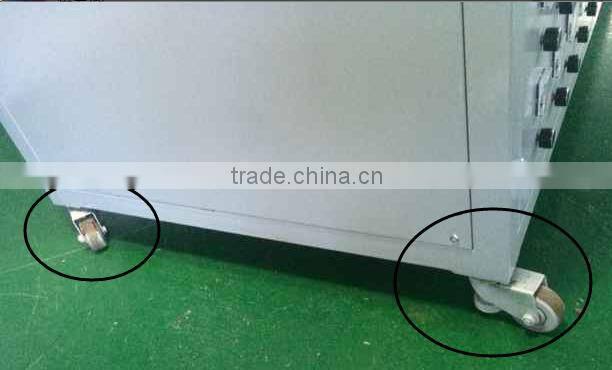

We are always keep moving , the new machine with wheeel . it is easy moving and will not corrosin your floor board .
Related Products:
Customer Feedback:
Noted:due to the shipping cost are need confirmed from the forwarder.and the frieght are will based on the actually when you place the order.
