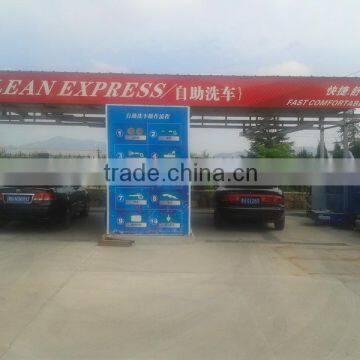

PE-WB-2 2 Bay Self-service Car Wash, Manual Washing Bay, Manual Car Wash

PE-WB-2 2 Bay Self-service Car Wash, Manual Washing Bay, Manual Car Wash

Self-service Almighty fine washing machine

High Pressure Prewashing

Detergent

Waxing

Water Wash

Coin Control

SUCKING & BLOWING MACHINE

HIGH EFFICIENT CLEANER

SMALL GAPS CLEAN IN THE CARS

SURFACE WATER CLEAN

COIN CONTROL

AIR BLOWING MODE

Car Mat Cleaning Machine

Car Wash Water Recycle System

Installation Request

1. Water pool include five pools (4 pools are ok), the standard size of grit chamber is 2*2.5*2m, other pools are 2*2*2m.

2. The space request is 20-30 square meter if water pool is on the ground; it just need to have a mainframe space if water pool is under the ground.

3. Power request of electrical source can’t be less than 3kw

4. AC380V,3 phase 4wires (three live line, the line section is not less than 4mm2;one line connect ground, the line section is not less than 2.5mm2,guarantee connect ground in safety)

Main Parts

Sewage treatment mainframe:1 set

The security filter

The built-in biological bacteria:

Recycle water pump: 2 sets

Water recycle pipeline: 1 set (buyer supply)

Sewage treatment pool: 5 pools (or 4 pools) (buyer is responsible for construction)

Techniques Introduction

 This system make waste water clean mainly by quartz sand multilayer filter

& activated carbon adsorption etc. multiple processing. First waste water will

stop some time in initial settling pool(or called oil removal pool) in order to

make quantities of silt & larger SS into pool bottom fully, and then enter into

waste water buffer pool in order to remove more petroleum substances. Thirdly

start multiple filtering by purified water pump pumping into quartz sand filter

drum, this step will filter left silt & small SS existed in left waste water; finally

proceed adsorbing by activated carbon adsorption device in order to absorb

abstergent & petroleum substances, also the activated carbon has color &

taste removal function.

Techniques Process

Performance

Exterior Structure

Frame welded by galvanized proximate matter, and outer plate by baking finish

Outer plate is galvanized; surface is baking finish (color according to buyer’s request)

Electric Control

full auto sewage recycle system use standard relay control circuit, and realize filte, backwash, flow out and water replenishing by control operation

Installation & debug

Put machine into a planed place,and fasten by M12expansion bolt

Connect input water,output,front wash,back wash etc.pipe line conrectly;and connect machine,water,electricity & other devices required by buyer in suit. Finally begin to

debug while checking no error carefully.

first debug by normal wash, and then debug by back wash while water flow is steady by normal wash; finally can use in normal if everything is ok.

Safety

1. Corresponding load thermal relay is matched on the main circuit in case of motor water pump overloaded.

 2. Liquid level detecting probe is installed in the clean water pool, and can detect water level. When water level is too low, it can light shortage water signal automatically, and begin water level alarm.

 3. Overflow pipe is settled in each water pool, it can flow out easily when water level is too high.

 4. Air pipe is installed in sewage pool, it can prevent water stink by compressing air periodically.

Nitrogen gas generator

Air compressor

Coin System
