10V Flush Diaphragm Pressure Sensor
- XI'AN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | HT | |
| Model Number | HT24V |
Product Description

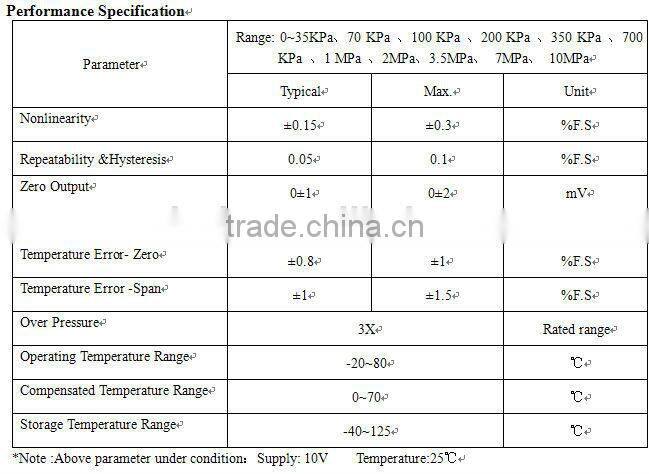

Specifications
Flush diaphragmHigh accuracy and high stability
Full 316L stainless steel
Description
HT24V piezoresistive silicon pressure sensor, the main part is diffused silicon element. Measured pressure was transfered to sensing element via diaphragm &silicon oil, utilizing the piezoresistance effect of diffused silicon to fulfill measuring pressure of liquids &gases. Flush diaphragm configuration is easy to clean, fitting to apply in food industry and sanitation etc.
Feature
Flush diaphragm
High accuracy and high stability
Full 316L stainless steel
Application
Measurement pressure of gas and liquid
Food industry
Process control
Medicine field, sanitation
Electrical Data
Supply: 10VDC
Input Impedance: 6KΩ~20KΩ
Output Impedance: 2.5KΩ~6KΩ
Insulation Resistance: ≥100MΩ/50VDC
Insulation Voltage: 500VAC betwwen the case and electrical connections will not cause damage
Medium Compatible: Liquids, gases which are compatible with 316LSS
