Oil Filled Pressure Sensor
- XI'AN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | HT | |
| Model Number | HT22 |
Product Description
Specifications
Wide measurement range:0~10KPa~100MpaPiezoresistive silicon sensing element
High Accuracy and stability
Description
HT22 is piezoresistive silicon pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. It used for high pressure measurement.
Features
Wide measurement range:0~10KPa~60Mpa
O-ring seal
High reliability and stability
Full 316L Stainless steel
Application
Measurement pressure of gas and liquid
Process control System
HVAC control
Pressure transmitter
Refrigeration system

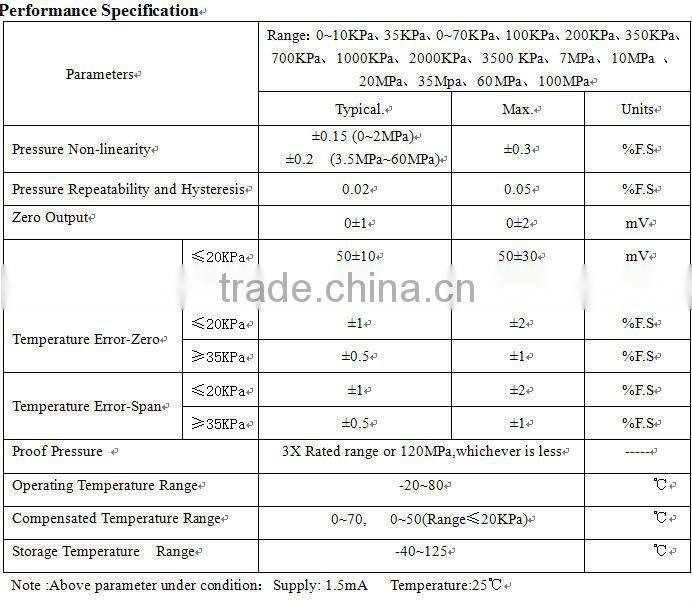

Electrical Data
Supply :1.5mADC Input impedance:3KΩ~6KΩ
Output impedance:2.5KΩ~6KΩ Insulation resistance:≥100MΩ/50VDC
Insulation voltage: 500VAC between the housing and electrical connection will not cause damage
Medium compatible: liquid, gas compatible with 316L stainless steel
