exported to Tunisia 400 meters depth HFC400 truck mounted water drilling rig
USD $230000.00 - $230000.00
/ Set
1 Set(Min.Order)
- Tianjin
- T/T
You May Like
-
200m depth ! HFW200L Track Type Water Well Drilling Rig, high efficiency
-
Top rotary drilling rig HF100T Tractor Mounted Portable Water Well Drilling Rigs
-
400 meters depth HFC400 truck mounted water drilling machines
-
HF510T trailer mounted water well drilling rig 260m depth
Supplier's Choice
-
Full set accessories!HF120W trailer type easy operation water well drilling rig
Quality Choice
-
Best sale!HFW-A Powerful All Formation Water Well Drill Equipment
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | Hanfa | Model Number | HFC400 | |
| Usage | Water Well | Power(W) | 118kw | |
| Dimension(L*W*H) | 12600mm x 2500mm x 4230mm | Weight | 24t | |
| Certification | ISO CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

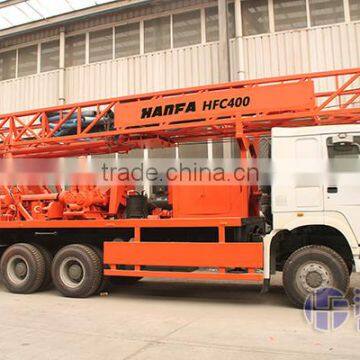

HFC400 truck mounted drilling rig
Specifications of HFC-400 Truck mounted drill rig
| Drilling capacity | Moving force | BF6L913G55 or 6135AN |
| Hole depth | 400m | |
| Diameter max | 500mm | |
| Drill rod | 89mm x 10mm x 6000mm / 73mm x 9mm x 6000mm | |
| Max. turntable diameter | 505mm | |
| Active Kelly | 108mm x 108mm x 7315mm | |
| Drill tower | Effective height | 11m |
| Hook rated load | 25t | |
| Hoisting system | 3 x 4 | |
| Dimensions for transport | 12600mm x 2500mm x 4230mm | |
| Weight | 24t | |
| Power | model | BF6L913G55 |
| name | intercooled turbocharged diesel enine | |
| Cylinder diameter | 102 x 125mm | |
| Power | 118kw / 2500r/min | |
| Max. torque | 555N.m / 1600r/min | |
| Transmission box | Output speed | 1107r/min |
| Chain box | Input speed | 1107 r/min |
| Output speed | 964r/min | |
| Gearbox | Input speed | 1107r/min |
| Double hydraulic cylinder-cable driving mechanism | Pressure capacity | 196000N |
| Reduce pressure capacity | 135000N | |
| Decompression strock | 7.6m | |
| Unloading pipe cylinder | Strock | 185mm |
| Cylinder inside diameter | 110mm | |
| Rated torque | 60000N.m | |
| Mud pmp BW900 | Max. pressure | 2.5Mpa |
| Max. displacement | 900L/min | |
| Hydraulic pump | Type | GPC4-50 |
| Displacement | (cm3/r) 52.5 |
