Aqua Drill Rig on Crawler Type
- Qingdao other ports are also available
You May Like
-
HFD-C Natural VLF Water Detector/ Mine Locator Water Finder Mine Finder
-
Portable HFDX-2 Full Hydraulic Professional Core Wireline Drilling Machine
-
HFD-C Natural VLF Water Detector/ Mine Locator Deep Water Detector/water Finder
-
HFD-C Natural VLF Water Detector/ Mine Locator Deep Water Detector
-
HF-20 Hydraulic Drilling Rig,core Sampling Rig, Soil Sampling Drilling Rig
-
Cheapest !!! HFD-C Water Detector/ Mine Locator Deep Underground Detector 500m Depth
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | China | |
| Brand Name | HANFA | Model Number | HF130Y | |
| Usage | Other, Drilling Aqua | Voltage | Diesel Engine Driven | |
| Power(W) | 56kw | Dimension(L*W*H) | 4460*1950*2460(mm) | |
| Weight | 4360kg | Certification | CE | |
| Warranty | 1year for main machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

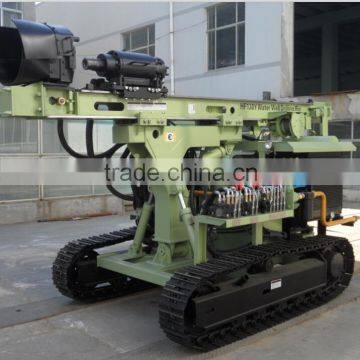

HF130Y Aqua Drill Rig on Crawler Type
using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection .
The drilling machine structure is compact,.whilethe mast has adjustable compensation function.when drilling,the mast supported on the ground, borehole stability is good.
HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costsand improve the efficiency
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:
Technical parameters
Bore diameter(hammer) | 90-300mm |
Bore depth | 20-100m |
Air consumption | 10-26m³/min |
Air pressure | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Pipe diameter | 76mm/89mm |
For rock | F=6-20 |
Bore diameter(screw) | Max 400mm |
Bore depth | 0-30m |
Screw pipe diameter | 130-400mm |
Once promotion | 2000mm |
Skid pitch | 100° |
Swinging angle of skid | Left and right total 40° |
Rotation speed | 0-70r/min |
Host power | 56Kw |
Climb ability | 35° |
Dimension(L*W*H) | 4460*1950*2460(mm) |
weight | 4360Kg |
Walk speed | 0-2.5km/h |
