OEM Toray T700 carbon road bike frames with 28C width of tyre balance carbon road bike frame set Quality Choice
- Xiamen China
- T/T Credit Card
You May Like
-
2015 new style 700c road Carbon Frames chinese carbon bike frame road cycling frame include fork front UD/3K
-
oem carbon road bicycle frame UD carbon frame for road bike chinese carbon fiber bicycle frame
-
Carbon Fiber Bike Frame 700C Carbon Road Bicycle Frame Road Bike Carbon Frame China Road Bike Frame Carbon Di2
-
chinese carbon road bike frame oem bicycle carbon framset ud/3k road bike carbon frame china road cycling carbon frame
-
New design carbon bicycle frames super light carbon fiber bike frame 3K/UD frame include carbon fork
-
Cheap road bike carbon frame china with 28C width bicycle frame carbon BB30/BSA Toray T700 carbon road frames
Product Details
Material | Other, Carbon, 60% T700/40% T800 | Foldable | No | |
Size | Other, 700*28C carbon road bike frame | Use | Road Bicycles | |
Weight | 950+/-50g | Place of Origin | Fujian, China | |
Brand Name | OEM | Model Number | HK-CR-01-T carbon road bike frame |
Product Description

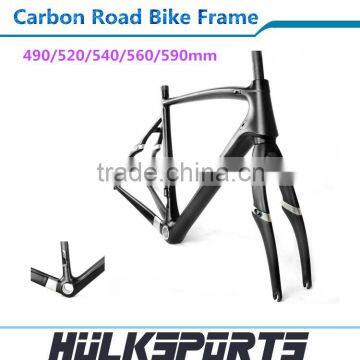

Carbon road bike frame
Specificiations | |||
Frame | HK-CR-01-T | Seat Tube | Φ27.2 |
Fork | HK-CF-01-T | Clamp | Φ31.9 |
Material | 60% T700/40% T800 | Crankset | 53-39T |
Appearance | UD | Front Derailleur | Brazed-on type |
Frame Weight | 950+/-50g | Rear derailleur | 11-speed |
Fork Weight | 380+/-50g | Sporcket | 11-speed |
Size | 490/520/540/560/590 | Type Size | Max 700*28c |
Headset | 1-1/8"&1-1/2" | Frame technology | X-Grid&Vibration reduce system |
Bottom bracket | BB30/BSA | Fork Technology | Vibration reduce system |
Physical Test STD | EN 14781:2005(E) |
Making carbon products involves compressing layers of carbon fiber and epoxy resin into a mould to get the the shape your purpose. We use EPS molding process and high temperature against resin to improve the stiffness and performance of the tradition way can not deliver to.
We can make EPS molding to the exact shape that we desired before laminating carbon fiber around them and put into the mould. Using EPS as the core mould, and then laminate the carbon fiber around them. And when heated, these EPS will help the pressure to formers well with consistent thickness and no wrinkles. After heated, the EPS part will become 20% of original size, and easily to clear out.
Warranty:
· All our products are in good quality and under strict quality test before shipment.
· We promise warranty for quality in 18 months. We will repair or replace it free of charge if defective part was found in 3 months. You will only need to pay the shipping cost if the defects are found after 3 months and within 18 months.
· This warranty is non-transferable and valid to the original purchaser of the product only.
· The following improper use will void your warranty
· 1 Crashes and accidents
· 2 Misuse (off-road riding, jumping, trick riding, Cyclocross, etc)
· 3 Modification of wheels or Improper assembly
· 4 Tire pressure exceeding 140psi
· 5 Normal wear and tear
· 6 Improper follow-up maintenance or maintenance by an unauthorized technician.
· 7 Installation of parts or accessories not originally intended for, or not compatible with the wheelset as sold
· 8 Damage or deterioration on the surface finish or appearance which has no effect on the function
· 9 Damages caused by natural disaster
· This warranty does not cover
· 10 Normal wear items (bearings, skewers, spokes etc)
· 11 Surface finishes and cosmetic treatments (anodizing, decals, etc)
· 12 All other bicycle components
· 13 Consequential or incidental damages (where applicable)
· Warning: If you do not follow these guidelines the warranty will be void.
· 14 Use brake pads for carbon rims only. Change brake pads when wear is indicated.
· 15 Use high pressure rim tape for clincher wheels.
· 16 Clean rim surface and brake pads before you use your wheels.
· 17 Exceed the maximum tire inflation pressure recommended. Road: 130psi; MTB: 65psi
Return & Refund
The items can be returned and refunded in original condition within 15 days after the products received. Please be noted that free return or refund just applys to products which are damaged in transit or due to manufacturing defective reason. We will NOT accept unreasonable return or refund.
Crash Replacement
If our wheels are crashed within 1 year under normal usage, we will replace new wheels for you.
