Home > Products > Carbon Road Frame > Ultra light road bicycle carbon frame set 700c include fork and seat post carbon bike frame 2016

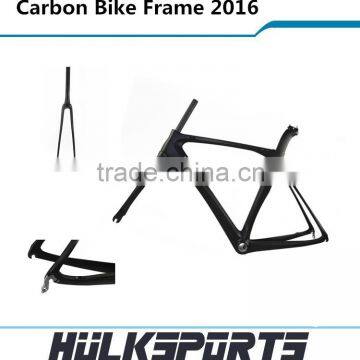

Ultra light road bicycle carbon frame set 700c include fork and seat post carbon bike frame 2016
USD $388.80 - $486.00
/ Piece
1 Piece(Min.Order)
- Xiamen China
- T/T Credit Card
You May Like
-
Full Carbon Road Frame Carbon Bike Frame 2016 Carbon Aero Road Frame
-
700C Racing Bike Frame Carbon Road Carbon Aero Road Frame Carbon Bike Frame 2016
-
Full carbon cyclocross bicycle frame 700C cyclocross carbon frame super light carbon road bike
-
Wholesale Chinese cyclocross bike frames BB30 carbon road bike frame V-brake cyclocross carbon frame
-
Disc brake Cyclocross bicycle frame Toray T700 Full carbon road bike frame 700C carbon cyclocross bike frame disc brake
-
carbon cyclocross bike frame disc brake cyclocross carbon frame
Product Details
| Material | Carbon | Foldable | No | |
| Size | Other, 480/500/520mm(include:seatpost, front fork) | Use | Road Bicycles | |
| Weight | 1050+/-40g | Place of Origin | Fujian, China | |
| Brand Name | OEM carbon bike frame 2016 | Model Number | HK-CR-023-Z carbon bike frame 2016 |
Product Description
Carbon bike frame 2016
| Type | 700C Road cycling |
| Frame model | HK-CR-023-Z |
| Material | 100% Full carbon |
| Weave | 3K/UD |
| Frame weight | 1050+/-40g |
| Headtube-Top | 1-1/8" |
| Headtube-Down | 1-1/2" |
| Seatpost | Φ31.6 |
| Seat Clamp | Φ37 |
| BB | BAS/BB30/PF30 |
| Available size | 480/500/520(include:seatpost, front fork) |
EPS MOULDING PROCESS
Making carbon products involves compressing layers of carbon fiber and epoxy resin into a mould to get the the shape your purpose. We use EPS molding process and high temperature against resin to improve the stiffness and performance of the tradition way can not deliver to.
We can make EPS molding to the exact shape that we desired before laminating carbon fiber around them and put into the mould. Using EPS as the core mould, and then laminate the carbon fiber around them. And when heated, these EPS will help the pressure to formers well with consistent thickness and no wrinkles. After heated, the EPS part will become 20% of original size, and easily to clear out.
High TG Epoxy Resin
The braking surface we are using the high TG point resin to against the high temperature during the down hill braking power. High TG epoxy resin enhance the toughness of whole rims,and also maintain the stiffness of carbon fiber.It also helpful to resist the deformation of speeder and continuous braking power .
We check every rim before shipment.
EN & UCI
