2016 Portable ventilator breathing machine respirator CE marked

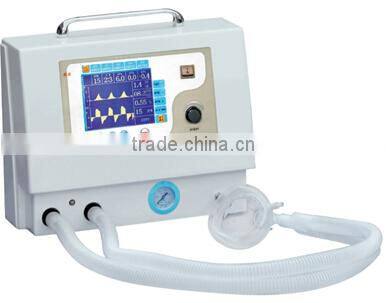

Portable Medical Ventilator AJ-2202

Main technical parameters

Display                     Colored 5.7” LCD, touch screen setting, big font display, free changeable angles of views

Various ventilation modes       SIPPV,SIMV,PCV,SPONT,MANUAL,CPAP

Ventilation parameters          PEEP,SIGH,IRV,Inspiratory platform

Tidal Volume                  50-1500 mL

Rate                         1~99bpm

SIMVrate                     2~20bpm

I:E                          4:1~1:8

Trigger sensitivity             -1.0~1.0kPa

PEEP                        0~25cmH2O

Pressure control               3~50cmH2O

SIGH                  1.5 times the inspiratory time (60 ~ 120 times adjustable)

Inspiratory platform            0~50%

Oxygen concentration          48%~100%

Pressure limit                5~60cmH2O

Parameters for ventilation monitoring     tidal volume, ventilation volume, IPPV rate, total respiratory rate, peak pressure of airway, pressure - time waveform, flow rate - time waveform, inspiratory trigger pressure, Inspiratory platform, Oxygen concentration, battery capacity

Safety alarm system

Airway pressure alarm                 upper limit setting range   0.3~6.0 kPa

lower limit setting range    0.2~5.0 kPa

Per-minute ventilation volume alarm      upper limit setting range 3.0~30L/min

lower limit setting range  1.0~10L/min

Vt alarm                            upper limit setting range 10~2000ml

lower limit setting range  0~1800 ml

Sustained high-pressure alarm       it will give alarm when stress have consistently been higher than 2.5 kPa

Suffocation alarm                 it will give sound and light alarm if there is no tidal volume input for 15 seconds

Power failure alarm

Power                            AC 220V±10%     50Hz±1Hz

                               UPS, Storage battery

Battery under-voltage alarm

Power loss alarm

Intubation off alarm
