Good Price Echo Doppler Machine and Ultra Sound Scanner

Specifications

 Trolley LCD Display Ultra sound scanner :
1.OB measurements:BPD,GS,CRL,FL,AC,HC
2.Back-lit keyboard
3.2 probe connect

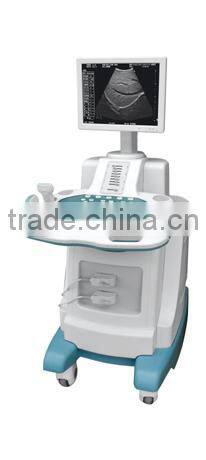

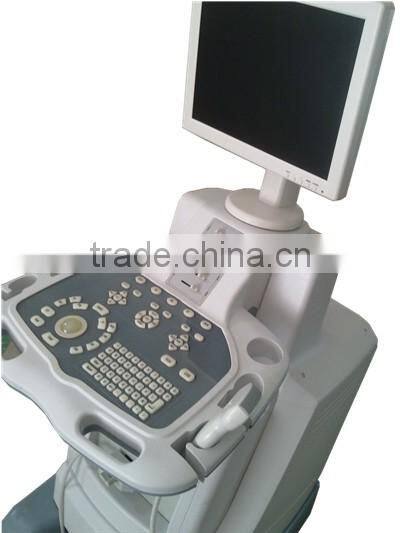

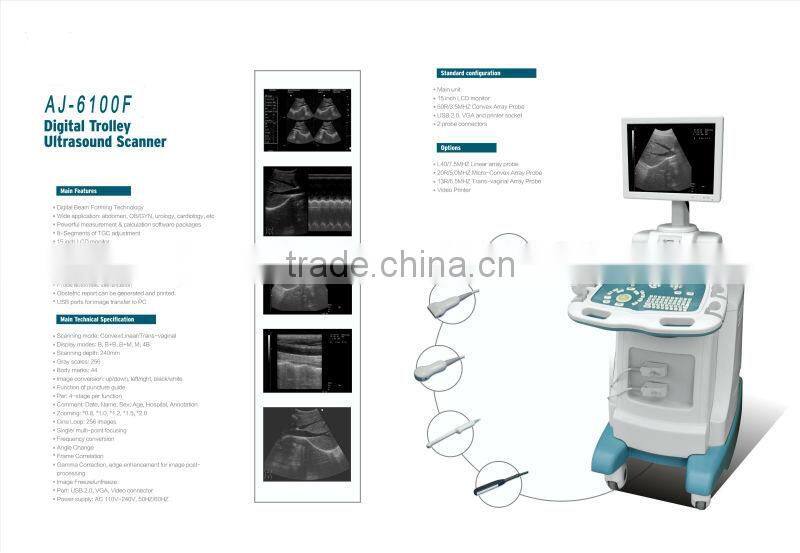

Trolley LCD Display Ultrasound Scanner AJ-6100F

This product is suitable for the diagnosis of the soft tissue of the human dynamic graphics, such as the liver, gallbladder, kidney, spleen, pancreas, uterus, bladder, fetal, and family planning to check pregnant, check ring, obstetrics and gynecology.

Features

Powerful measurement & calculation software packages

8-Segment TGC adjustment

15 inches LCD monitor

OB measurements: BPD, GS, CRL, FL, AC, HC, etc

Permanent function of image store: 32 images

Back-lit keyboard

2 probe connectors

Probe automatic identification

Specification

Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;

Display modes: B, B+B, B+M, M, 4B;

Scanning depth: 240mm;

Gray scales: 256;

Body marks: 33;

Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;

Image conversion: up/down, left/right, black/white;

Function of puncture guide;

Max dynamic range>=100db;

Detecting depth>=190mm, scanning depth>=240mm;

The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;

Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<170mm);

Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<depth<160mm);

Gamma: 4 gray scale γ transform function;

Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;

Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.

Fixed characters and real-time clock and calendar display;

Software reset function;

Printer function: can connect laser printer and Video printer directly;

Comment: Date, Name, Sex, Age, Hospital, Annotation;

Zooming: *1.0, *1.2, *1.5, *2.0;

Port: USB 2.0, VGA, Video connector;

Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;

USB Function of image store: more than Sixteen thousand images;

Power supply: AC 110V-240V, 50HZ/60HZ;

Probe connector: 2;

USB/VGA/ ports;

Video connector;

Measurement

General menu: Distance, Area, Volume, Angle, Ellipse

Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight

Heart menu: Distance, Time, Slope, Rhythm

Standard Configuration

Main unit 1 set

15 inches LCD monitor

60R/3.5MHZ Multi-frequency Convex array probe 1pc

Power line 1pc

Ground line 1 pc

Fuse 4 pcs

User’s manual in English 1pc

Packing list 1pc

Warranty card 1pc

Options

L40/7.5MHZ Linear array probe

20R/5.0MHZ Micro-Convex array probe

13R/6.5MHZ Trans-vaginal array probe

7.5R/7.5MHZ Trans-rectal probe

Video printer; HP laser jet printer
