Multi Function Mesh Belt Drying Equipment

FOB Price

USD $1,000 - $90,000 / Set

1 Set(Min. Order)

Port Tianjin Shanghai Qingdao port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, mesh belt drier
Place of Origin	Henan, China	Brand Name	huahong
Model Number	GX 1.6-8	Voltage	380v
Power(W)	11.4kw	Dimension(LWH)	9.561.92.4
Weight	5300	Certification	ISO,CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Mesh Belt Dryer
1.High efficiency
2.Low price
3.Energy Saving
4.ISO,CE

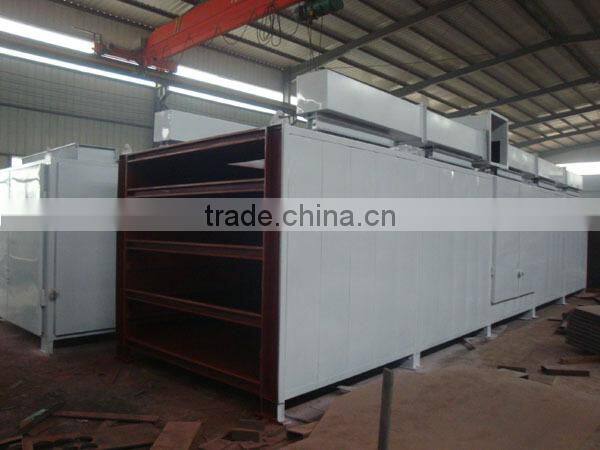

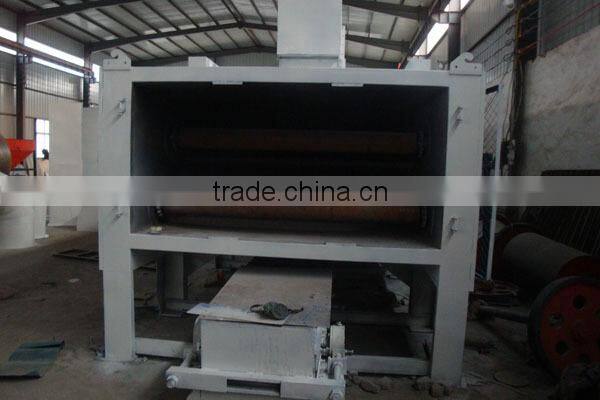

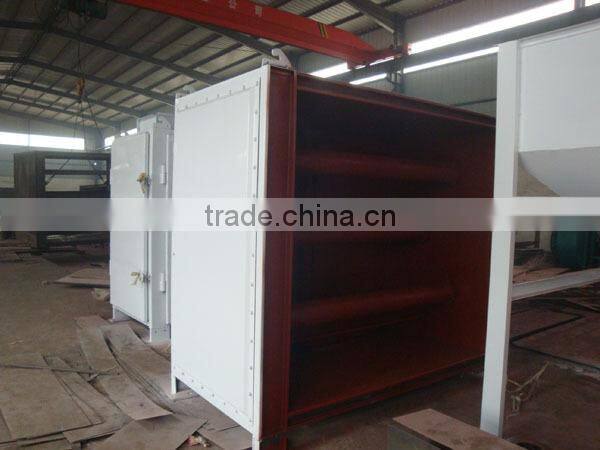

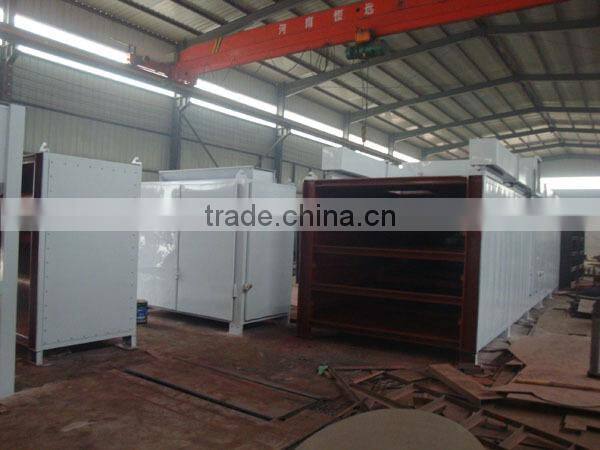

Multi Function Mesh Belt Drying Equipment

Introduction

Mesh belt dryer is a kind of batch, continuous production drying equipment, mainly for better ventilation sheet, strip, granular materials, such as: preserved fruit, pepper, potato chips, cassava chips/slice, briquettes, grain straw, etc., the main heating electric heating, coal fuel heating, hot air heating.

Features

1. Air quantity, heating temperature, materials staying time and feeding speed of mesh belt dryer could be adjusted to achieve the best drying effect.
2. The equipment configuration is flexible, mesh belt washing system and materials cooling system could be used.
3. Mesh belt dryer is equipped with unique air dividing apparatus, which makes hot air distribute better uniformly and ensures that fruit quality is not affected.

Parameters

Type	GX-1.2-8	GX-1.2-10	GX-1.6-8	GX-1.6-10	GX-2-8	GX-2-10
Quantity of unit	4	5	4	5	4	5
Width of belt(m)	1.2		1.6		2
Length of drying section(m)	8	10	8	10	8	10
Thickness of spread raw material(mm)	≤60
Temperature of operation(°c)	50~140
Pressure of steam(MPa)	0.2~0.8
Consumption of steam(kg/h)	120-300	150-375	150-375	170-470	180-500	225-600
Drying time(h)	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5
Drying strength(kg/h)	60-160	80-220	75-220	95-250	100-260	120-300
Total power of equipment(kw)	11.4	13.6	11.4	13.6	14.7	15.8
Overall dimensions(LWH) (m)	9.561.492.3	11.561.492.3	9.561.92.4	11.561.92.4	9.562.322.5	11.562.322.5
Weight(kg)	4500	5600	5300	6400	6200	7500
