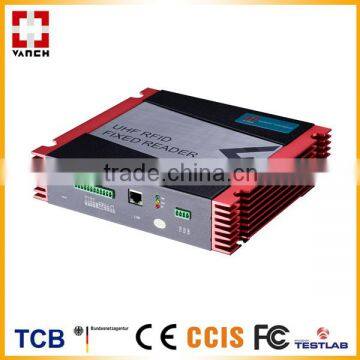

Long Range Fixed Mounted UHF RFID Reader 4 Port Antenna reader Quality Choice
- shenzhen
- Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Vanch | |
Model Number | VF-647 |
Product Description
Introduction
l Based on the development of independent intellectual property rights, the reader adapt to the global frequency band setting.
l Adopt high-performance Impinj UHF reader chip IndyR2000 to achieve the best Intensive reader mode, the maximum read speed and optimum read ranges.
l Application: warehousing and logistics supply chain, fixed asset management, transportation and vehicle management, manufacturing, etc.
Features
1, Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation
2, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard
3, operating frequency is between 860-868MHz / 902- 928MHZ (can be adjusted according to different countries or regions)
4, RS232, RS485 and TCP / IP communication
5, Support 1, 2, 4 external SMA antenna connections
6, Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.
7, Reading buzzer and LED status indication; support online upgrade for hardware by communication port.
8, Reader supply multi I/O input output connectors, convenient for device to integrate and application
9, highly reliable design for industrial structure to meet the demanding work environment
Tag air interfaces | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Frequency ranges | 902~928MHz(customize for your requirement) |
Work style | For FHSS or fixed frequency |
Antenna port | 4SMA (female) antenna port |
RF power control | +10.0 to +32.5 dBm |
Read distance | 3~20M(Tags dependent) |
Max receiving sensitivity | -82 dBm; Maximum return loss: 10 dBm |
Communication interface | LAN, RS232, RS485, Wiegand26/34 |
Communication rate | serial port rate 9600~115200bps, RJ 45 is 10Mbps |
Reliable firmware update | extensible upgrade mechanism |
Input/output(GPIO) | 2 route input, 1 route output |
Power | External 22OV AC, +12V/3A DC adapter |
Consumption | Average Power<20W |
Non-condensing Enclosure | IEC IP52 |
Operating Temp. | -20 ºC to +60 ºC |
Humidity | 5% to 95%, no condensed |
Dimensions | 220(L)*200 (W)*48(H)mm |
Application software interface | Provide API SDK,Demo in VC and VB. |
Weight | 1.5KG |
1. With high performance Impinj UHF reader chip IndyR2000,achieve best multi-tags read effect, best read rate and best read range
2. Apply for: supply chain, fixed assets management, manufacturing and etc.
