Product Details
Place of Origin | Guangdong, China | Brand Name | VANCH | |
Model Number | VI-710 |
Product Description

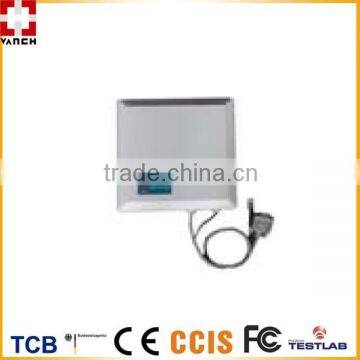

2.4G Active RFID Reader for Vehicle Tracking/Car Parking up to 100m
l Application:Vehicle management; intelligent transportation; electric bike anti-theft system; student leaving / arriving school and message service system; Access control, asset management; warehouse management.
1. Frequency 2.4GHz-2.5GHz
2. Support multi communication interfaces: TCP/IP,RS232,RS485,Wiegand26/34/66
3. Notify users the working state through the lamp, buzzer and status signal
4. Reading distance can be adjusted
5. Time interval on read the tag can be set;
6. tags upload speed can be set;
7. trigger working,256 tags buffering capacity
8. Highly reliable design for industrial structure to meet demanding environment
Specification | |
Model# | VI-710 |
| |
Performance Index | |
Frequency range | 2.4GHz-2.5GHz |
Communication Interface | TCP/IP,RS232,RS485,Wiegand 26/34/66(or customized) |
Working type | active(transfer data once reading tag ) |
Communication Type | active/passive; |
communication rate | RS232,RS485 communication rate can be set |
Reading distance | 3-100m (can be adjustable) |
Reading Accuracy | > 99.999999% |
anti-collision capability | superior anti-collision capabilityable to read the complete 200 tags within 3 sec |
Application software | Provide with API SDK and so on |
Tag Performance | |
Frequency range | 2400-2500MHz |
Bandwidth | 100MHz |
Gain | 16dBi |
Horizontal Beam width | 30° |
Vertical Beam width | 25° |
Front to Back Ratio | ≥25dB |
VSWR | ≥25dB |
Input impedance | 50Ω load |
Polarization | Vertical Polarization |
Mechanical and Electrical Performance | |
Dimension | 215mm×215mm×78 mm; |
Operating Voltage | DC7.5-12V |
Operating Current | < 200mA |
Weight | 1.0KG |
Humidity | 5% to 95% |
Protection grade | IEC IP54 |
Work temperature | -25 ºC to +75 ºC |
Storage temperature | -40°C to 85°C |
Shell material | ABS, cast by aluminum, with mounting bracket, Control installation direction |
Standard carton box with protecting material for each devices
Goods will be shipped to you by international express, such as DHL, FEDEX, UPS, TNT and EMS etc.
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution
4.Products are CE and FCC certified
Shenzhen Vanch Intelligent was established in2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields
