Compact Structure 6ton Crane Application Hydraulic Winch

Specifications:

1) Drive: hydraulic

2) Force: 5kn-550kn acceptable according to your request

3) Rope speed:  10-500m acceptable according to your request

4) Brake: automatic hydraulic brake

5) Paint: as per your specifications

6) hydraulic motor: inside impinged radial piston motor / outside impinged motor are recommended.

Merits:

No matter the planetary reducer or hyd. motor, all the components equipped in the winch come from famus brand technical and design, f.e.the motor design from SAI in Italy; the balance valves design from SUN in USA; all of the seal and high strength hex socket screws imported from German, Italy and Taiwan, the casting adopt nodular cast
iron to ensure the satisfied performance and appearance.

We manufacture Italian SAI motor for many years and base on that we develop new product of hydraulic motor. It was tested by Shanghai Hydraulic Research Institute and be certified that combination property of SMS hydraulic motor is the same lever as original hydraulic motor of SAI compamy Italy.

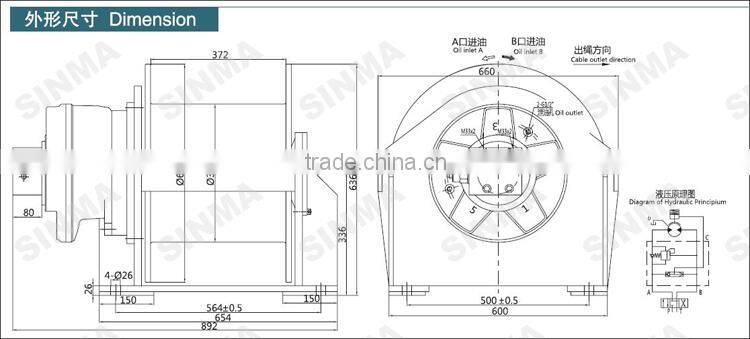

Dimension:

Our Motor Selection:



                                        (Picture1: inside impinged radial piston pump)

                   (Picture2:outside impinged radial piston pump)

                                   (Picture3: axial piston pump)

illustration:
