Hydraulic Winch Company Supplying dp Hydraulic Winch/hydraulic Winch System
- Ningbo
- T/T
You May Like
-
Low Energy Consumption Low Noise Hydraulic Winch for Lifting
-
Vessel Tugger Hydraulic Winch
-
Special Designed Tugger Winches for Work Barge
-
Marine Hydraulic Tugger Level Wind
-
Low Energy Consumption Low Noise Hydraulic Winch for Crane/drilling/boat
-
Low Energy Consumption Low Noise 0.5-40ton Hydraulic Winch for Crane/drilling/boat
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Sinma | |
| Model Number | XHSJ7 | Power Source | Hydraulic | |
| Application | Other, Crane/ Boat | Capacity | 200KN |
Product Description
Sinma hydraulic winch is composed of oil distributor, SM hydraulic motor, Z brake, C reducer, reel and stand.
The oil distributor includes one-way balance valve, brake and high pressure shuttle valve.
SM winch has its own valve group, so that it makes hydraulic system more simple and increases stability of the transmission device. The hydraulic valve group of SM winch solves the problem of empty hook vibrating and fall again during hoisting. So SM winch can lift and put down stably. When starting and working, SM winch is high efficiency, low energy consumption, low noise and beautiful form.
Specifications:
1) Drive: hydraulic
2) Force: 5kn-550kn acceptable according to your request
3) Rope speed: 10-500m acceptable according to your request
4) Brake: automatic hydraulic brake
5) Paint: as per your specifications
Merits:
No matter the planetary reducer or hyd. motor, all the components equipped in the winch come from famus brand technical and design, f.e.the motor design from SAI in Italy; the balance valves design from SUN in USA; all of the seal and high strength hex socket screws imported from German, Italy and Taiwan, the casting adopt nodular cast
iron to ensure the satisfied performance and appearance.
We manufacture Italian SAI motor for many years and base on that we develop new product of hydraulic motor. It was tested by Shanghai Hydraulic Research Institute and be certified that combination property of SMS hydraulic motor is the same lever as original hydraulic motor of SAI compamy Italy.

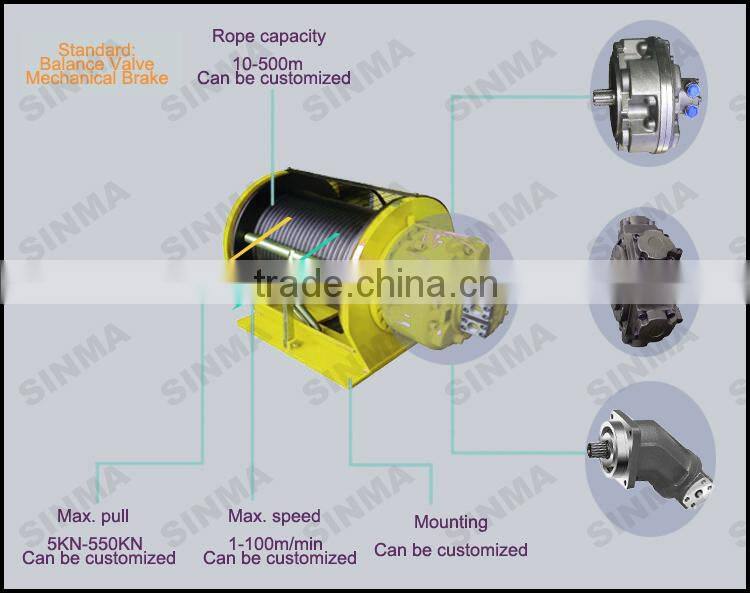

Our Motor Selection:

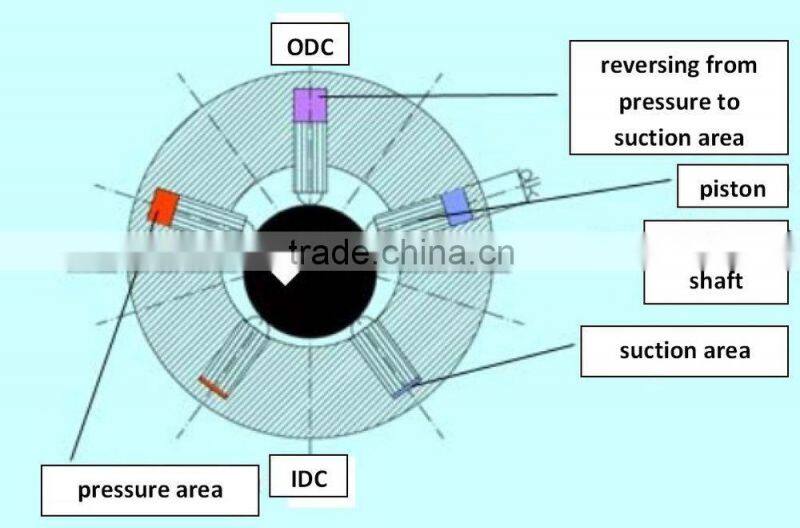

(Picture1: inside impinged radial piston pump)

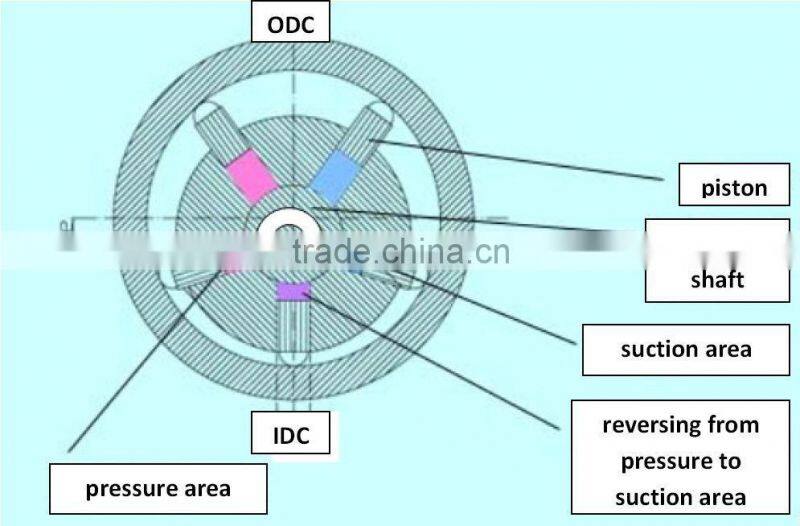

(Picture2:outside impinged radial piston pump)

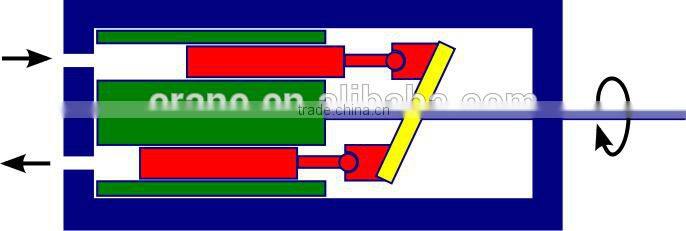

(Picture3: axial piston pump)

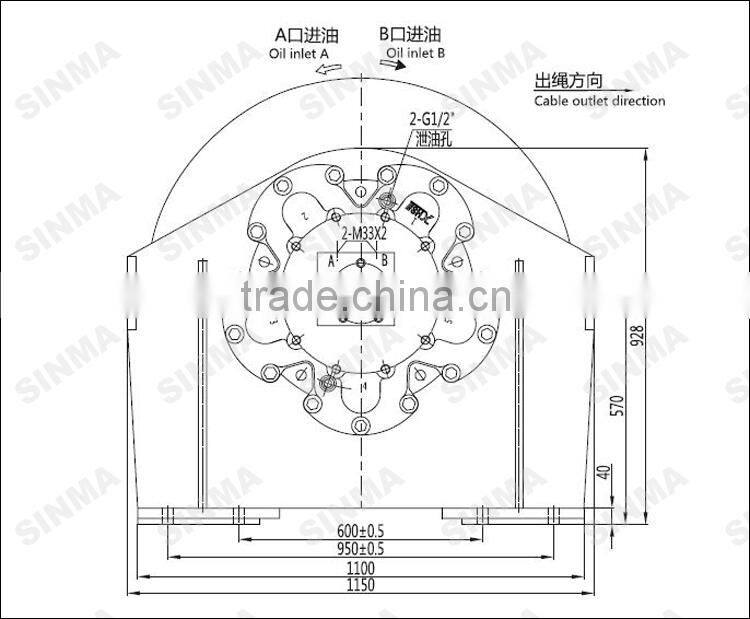

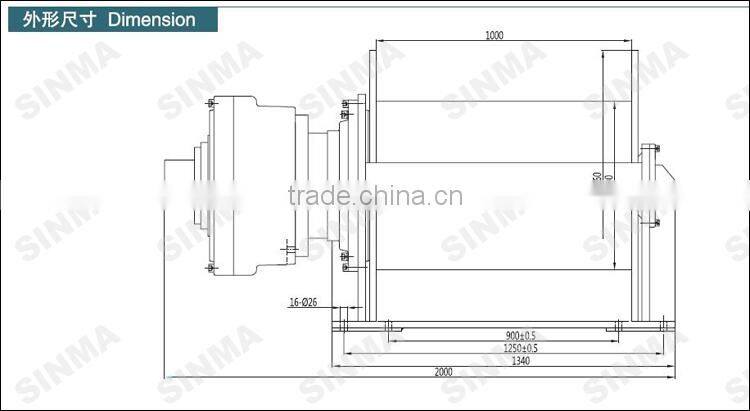

illustration:

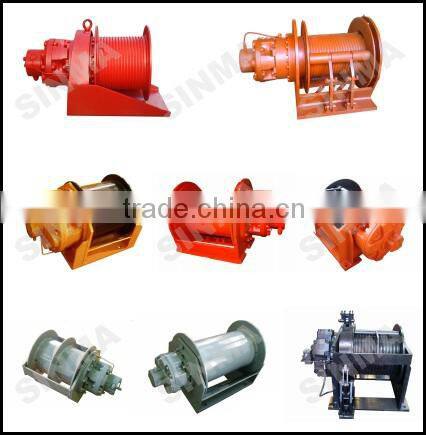

Our Scope Of Winch Products:
Hydraulic Winch List (Partial):
| XHJ2.5/3/4/5/6/7 Hydraulic Winch | ||||||||||
| Model | First layer | Reel bottom diamete (mm) | Total displacement (ml/r) | Difference of working pressure (Mpa) | Diameter of steel cable (mm) | Steel cable capacity (m) | Model of hydraulic motor | Model of planetary reducer | Weight (kg) | |
| Pull force(KN) | Rope speed(m/min) | |||||||||
| XHJ2.5-10-60-10-ZP | 10 | 0-25 | 238 | 610 | 15.1 | 10 | 60 | XHM2-110D51 | C2.5-5.5 | 120 |
| XHJ2.5-20-50-12-ZP | 20 | 0-25 | 238 | 1442 | 14 | 12 | 50 | XHM2-200D51 | C2.5-7 | 120 |
| XHJ3-30-66-15-ZP | 30 | 0-35 | 305 | 2455 | 14.4 | 15 | 66 | XHM6-500D120101 | C3-7 | 300 |
| XHJ3-40-64-16-ZP | 40 | 0-35 | 305 | 3267 | 14.6 | 16 | 64 | XHM6-600D120101 | C3-5.5 | 300 |
| XHJ4-50-87-20-ZP | 50 | 0-40 | 380 | 4961 | 13.6 | 20 | 87 | XHM11-1000D480101 | C4-5 | 685 |
| XHJ4-60-68-21.5-ZP | 60 | 0-40 | 380 | 6138 | 14.2 | 21.5 | 68 | XHM11-1100D480101 | C4-5.5 | 685 |
| XHJ5-80-103-24-ZP | 80 | 0-40 | 470 | 9983 | 14.5 | 24 | 103 | XHM16-1800D480101 | C5-5.5 | 1200 |
| XHJ5-100-90-28-ZP | 100 | 0-40 | 470 | 14113 | 13 | 28 | 90 | XHM16-2500D480101 | C5-5.5 | 1200 |
| XHJ6-120-176-30-ZP | 120 | 0-30 | 600 | 16714 | 17 | 30 | 176 | XHM31-3000D480101 | C6-5.5 | 2300 |
| XHJ6-150-153-34-ZP | 150 | 0-30 | 600 | 19904 | 18 | 34 | 153 | XHM31-3500D480101 | C6-5.5 | 2300 |
| XHJ7-180-143-38-ZP | 180 | 0-30 | 640 | 24140 | 16 | 38 | 143 | XHM31-5000D480101 | C7-5 | 2600 |
Certification:
Contact me:
Contact Us
- Jiangsu Sinma Machinery Co., Ltd.
- Contact nameDonald Ma Chat Now
- Phone86-516-8789 9999
- Address76 Zhengxing Rd, Jinshanqiao Development Zone, Xuzhou, Jiangsu
