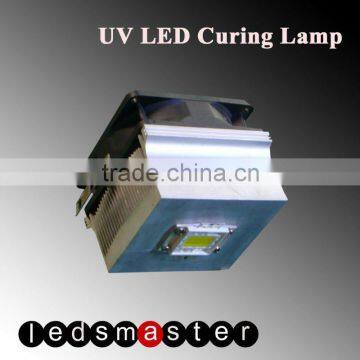

120W UV LED area light source curing system

Specifications

UV LED area light source curing system
Dominant Wavelength: 375nm
Work Current: 1000 - 4000mA
Power: 120W

Unlike traditional UV lamps, which limits on heat sensitive materials and an external fan system is needed. This area light source offers industrial strength curing with a large illumination area for high process throughput, while ensuring uniform intensity from the center to the edge and enables printing on almost all kinds of substrates even on thin film, thin plastics, foam plastic (ceiling tile), paper, and leather.

Unique Features and Benefits:
1, Extra-long guaranteed life: 20000+ hours , provides lower cost of ownership
2, Rapid Cure - Instant on/off, light instantaneously on with no warm up required
3, Narrow UV output spectrum
4, One peak wavelength of output power (multiple peaks possible as required by process)
5, High intensity, emits no heat- able to cure heat sensitive materials, no fuming of cured material normally caused by excessive radiant power from conventional lamps
6, Safe operation - no UVB, no ozone, no bulb break, low voltage, no mercury
7, Predictable radiant output power with limited drop off with life
8, Uniformly arrayed LED and optimal designed lens groups guarantees uniform and stable irradiation, the intensity change from the center to the edge is no more than 3%.
9, Maximum UV intensity up to 4000mW/ cm2
10, Compact - Easily embedded into automated manufacturing lines and equipment
11,Many kinds of circuit technique design (patented). The whole system will not be affected by the damage of one LED module.
12, Five working modes: constant current, PWM, step, intelligent optical and manual modes, which are specially designed for eliminating cementing stress of UV adhesives


UV LED area light source illumination
Unique Features and Benefits:
Two wavelengths of LED available: 365nm, UVA385-400nm
UV intensity: 50mW/cm2, 100mW/cm2, 200mW/cm2 (365nm)
              800mW/cm2, 4000mW/cm2 (385-400nm)
Emitting window: Available in configurable UV emitting L×W from 20-2000mm×20-2000mm
Cool method: air cooled( a mini fan installed) or water cooled
Controller System
