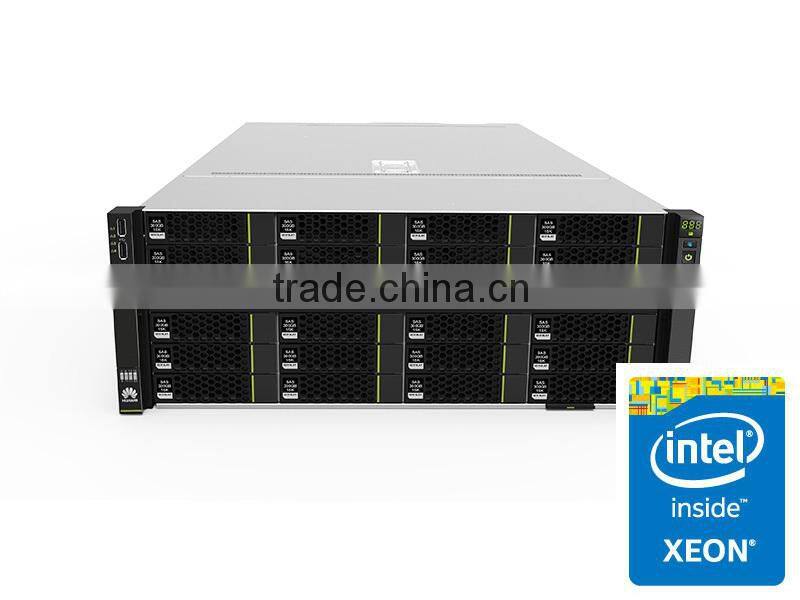

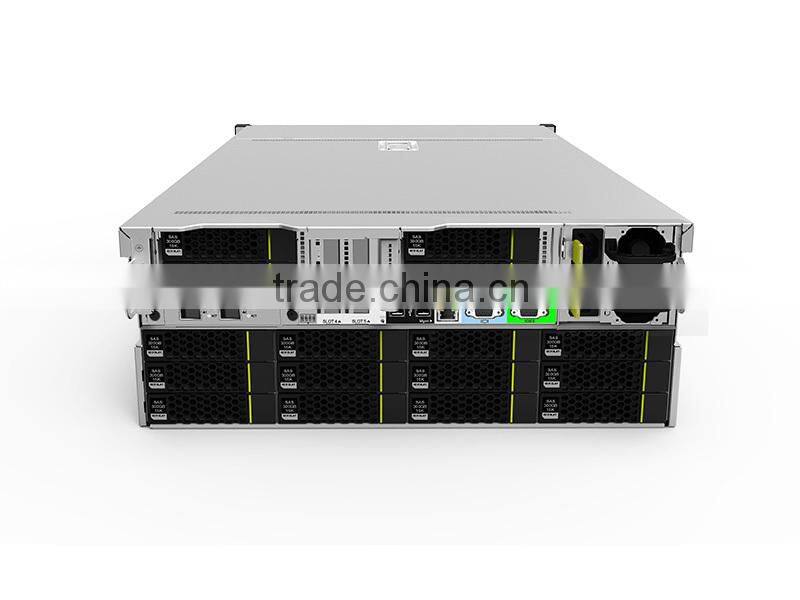

Original Huawei FusionServer 5288 V3 4U Rack Server

Original Huawei FusionServer 5288 V3 4U Rack Server

Meet tomorrow’s Big Data challenges today with Huawei’s FusionServer 5288 V3 Rack Server. Offering ultra-large storage capacity, flexible resource expansion, and high computing performance, this 2-socket rack server is the ideal choice for cold data and cloud storage, video surveillance, and Big Data applications.

Huawei server with Intel® Xeon® processor.

The Huawei FusionServer 5288 V3 (5288 V3 for short) is a newgeneration 4 U two-socket storage rack server. It provides optimal computing performance, ultra-large local storage capacity, and flexible expansion capabilities. It is an ideal choice for cold data storage, video surveillance, cloud storage, and Big Data applications in media, financial, public security sectors.

•Ultra-large local storage capacity adapts to fast data increase

•Smart and refined power control technology ensures high energy efficiency. The LED digital management panel allows intuitive fault location

High bandwidth and ultra-large local storage capacity
•Supports up to forty 3.5-inch hard disks, providing the needed flexibility for service expansion.
•Supports two mini SSDs (SATA DOMs) grouped as a RAID 1 array for the operating system (OS), freeing up significant capacity in hard disks.
•Provides two types of disk enclosures and multiple RAID controller configuration options, allowing flexible configurations for different requirements.
•Supports the latest 12 Gbit/s SAS technology, meeting requirements for high performance transmission in Big Data analytics.

High performance and scalability
•Uses the latest Intel® Xeon® E5-2600 v3 series processors. Each processor supports a maximum of 16 cores and provides two 9.6 GTbit/s QuickPath Interconnect (QPI) links between processors.
•Supports up to sixteen 2133 MHz DDR4 DIMMs to provide a maximum memory capacity of 1 TB (configured with 64 GB memory).
•Provides up to six PCIe slots, offering expandable I/O space with high availability.
•Provides I/O performance surpassing traditional hard disks when used with Huawei PCIe SSD high-performance storage cards.

High energy efficiency with intelligent power control
•Uses 80 Plus Platinum power supply units (PSUs) that comply with Energy Star specifications.
•Uses the dynamic energy management technology (DEMT) to adjust server operating status dynamically and limit power consumption to an optimal level.
•Uses power capping to allocate power supply and heat dissipation resources on demand and increase resource utilization and deployment density without affecting services.
•Supports high-voltage DC power supplies, eliminating conversion between AC and DC power supplies and minimizing power conversion loss.
•Uses proportion integration differentiation (PID) to control heat dissipation and fan speed adjustment policies, implements stepless speed regulation and on-demand allocation of heat dissipation resources, and minimizes power consumption and noise.

Efficient management and maintenance
•Provides a digital LED fault diagnosis panel to facilitate device management.
•Provides a data recorder, similar to a flight recorder, to facilitate fault locating when the server collapses.
•Implements Serial over LAN (SOL), remote KVM, and remote startup and shutdown of the server through an independent iBMC.
