GCL / Bentonite Geo- Synthetic Clay Liner Used in Solid Waste Landfill / Lake Construction
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Hongxiang | |
| Model Number | HXGC-01 |
Product Description
Specifications
GCL1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction
4.Top quality

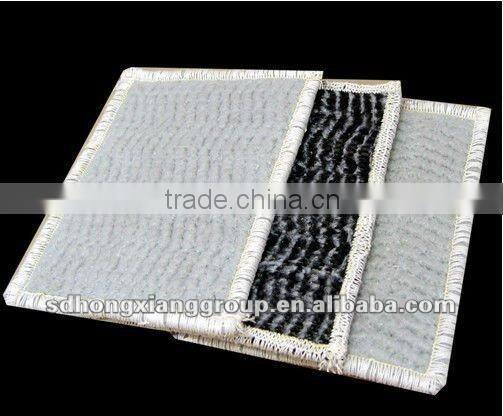

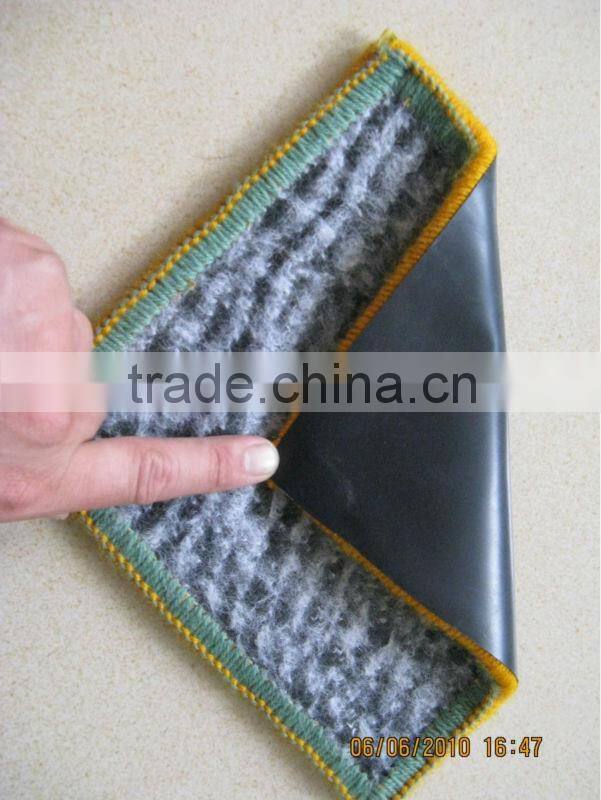

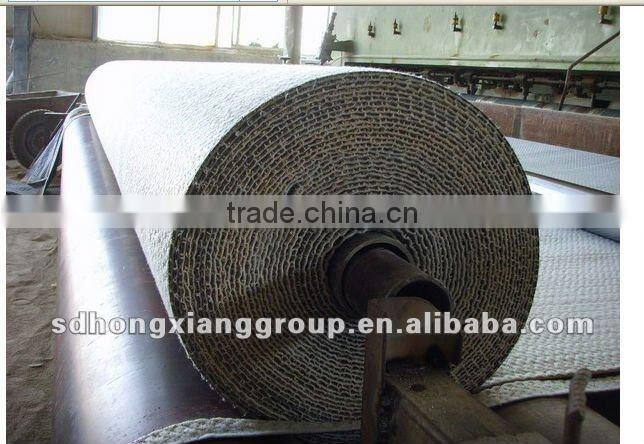

GCL / bentonite geo- synthetic clay liner used in solid waste landfill / lake construction
Specification:
Mass per unit ≥ 4000g / m²
Width: 4-6 m
roll size: 5.8 x 30m
Characteristics:
1) compacted with clay liner, it has the advantages of
small size, light weight, good flexibility and compactibility
2) easy for construction and suitable for uneven settlement.
3) not affected by temperature
4) permanent waterproofness
5) eco-friendly
Usage:
Seepage proofing, anticorrosion, leaking stoppage and reinforcement
1. Municipal engineering, underground construction of subway, buildings as well as the roof tank.
2. Environmental sanitation, solid waste landfill, sewage farm, industrial waste
3. water conservancy, lake, river, dam and reservoir.
4. Garden and park, artificial lake and golf cause pool.
5. Petrochemical engineering, mining industry and agriculture engineering
GCL Specification
Item | Specification | |||
GCL-NP | GCL-OF | GCL-AH | ||
Mass per unit g/m2 | ≥ 4000 (not less than the specified value) | ≥ 4000 (not less than the specified value) | ≥ 4000 (not less than the specified value) | |
GCL expansion index ml/2g | ≥24 | ≥24 | ≥24 | |
Blue absorption power g/100g | ≥ 30 | ≥ 30 | ≥ 30 | |
Tensile Strength N/ 100mm | ≥ 600 | ≥ 700 | ≥ 600 | |
Elongation at maximum load % | ≥ 10 | ≥ 10 | ≥ 8 | |
Peel strength N / 100mm | Nonwoven geotextile and woven geotextile | ≥ 40 | ≥ 40 | - |
PE geommebrane and nonwoven geotextile | - | ≥ 30 | - | |
Permeability coefficient m/s | ≤ 5.0x10-11 | ≤ 5.0x10-12 | ≤ 1.0x10-12 | |
Hydrostatic pressure resistant | 0.4 Mpa , 1h, no leakage | 0.6 Mpa ,1h,no leakage | 0.6Mpa ,1h, no leakage | |
Filter loss ml | ≤ 18 | ≤ 18 | ≤ 18 | |
Durability of bentonite ml/ 2g | ≥ 20 | ≥ 20 | ≥ 20 | |
