Disconnector isolator switch GN22-12C GN22-10C GN22
- shanghai ningbo
- T/T D/P D/A Credit Card
You May Like
-
High Voltage Indoor Disconnectors GN22-10 GN22-12
-
GW9-12 GW9-10 HGW9-12 HGW9-10 Isolation switch
-
11KV 12KV 24KV 33KV 40.5KV outdoor High voltage isolation switch
-
GW1-24 Three Pole Outdoor Disconnector with Fuse-bases(Export)
-
Isolation switch contacts , Disconnectors contacts
-
Disconnectors Accessories , Disconnectors contacts
Product Details
| Place of Origin | Zhejiang, China | Brand Name | hossin | |
| Model Number | GN22-12C GN22-10C GN22 | Max. Current | 2000A 3150A 4000A 6300A 10000A | |
| Max. Voltage | 0.4KV 0.5KV 9KV 11KV 12KV 15KV 20KV 21KV 24KV 33KV 36K 40.5KV 33KV |
Product Description

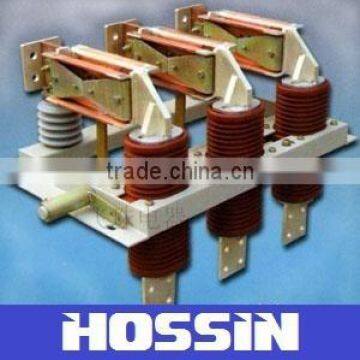

Disconnector isolator switch,GN22 Indoor
GN22-12 indoor high voltage isolation switch is high voltage switchgear used to rated voltage 12Kv, ac 50Hz power system.
GN22-12 series indoor HV rotation disconnecting switches is a new type disconnecting switches , which special designed for XGN2-12 HV switchgear , with rated voltage 12kV and three phase AC 50Hz indoor facility. It mainly openclosed circuit on condition with voltage and no load , make circuit breaker and main bus reliable and effective with disconnecting and earth, to guarantee safe for maintenance staff and component , avoid accident .
The use of environmental conditions
1.Ambient temperature: not higher than +40 °C , not less than -15°C (at -30 °C to allow storage and transportation).
2. Altitude: not exceed 1000m.
3. Relative humidity: daily average of not more than 95%, month average of not more than 90%. saturated vapor pressure daily average of not more than 2.2 kPa, month average not more than 1.8 kPa.
4. Earthquake intensity: not more than eight.
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration.
Item | Unit | Data | ||
rated voltage | KV | 12 | ||
rated frequency | Hz | 50 | ||
rated current | A | 2000 | 3150 | |
rated short time withstand current | KA | 40 | 50 | |
rated peak withstand current | KA | 100 | 125 | |
rated short time duration | S | 4 | ||
rated insulated level | power frequency withstand voltage | KV | interelectrode,earth42 fracture 49 | |
lightning impulse withstand voltage peak value | KV | interelectrode,earth75 fracture85 | ||
