Pyrolysis Gas Compressor

FOB Price

US$ 20,000 - 29,100 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Piston
Configuration	Stationary	Power Source	AC Power
Lubrication Style	Oil-free	Mute	Yes
Place of Origin	Henan, China	Brand Name	YJ
Model Number	ZW-1.67/250	Voltage	380v
Dimension(LWH)	320018001400mm	Weight	3000kg
Certification	ISO9001	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

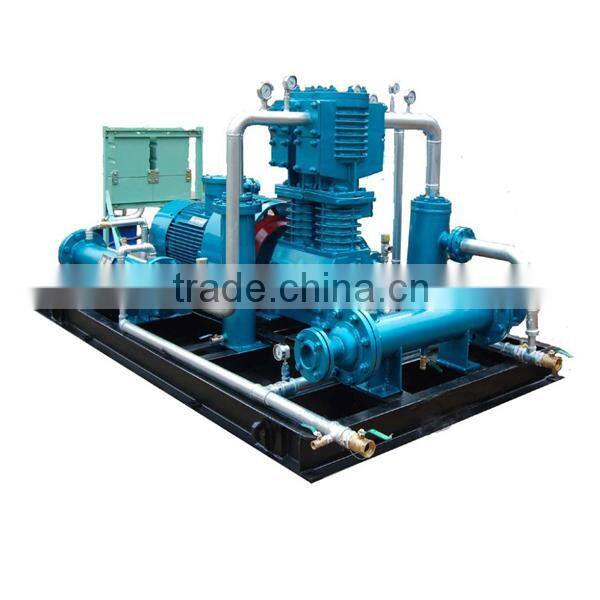

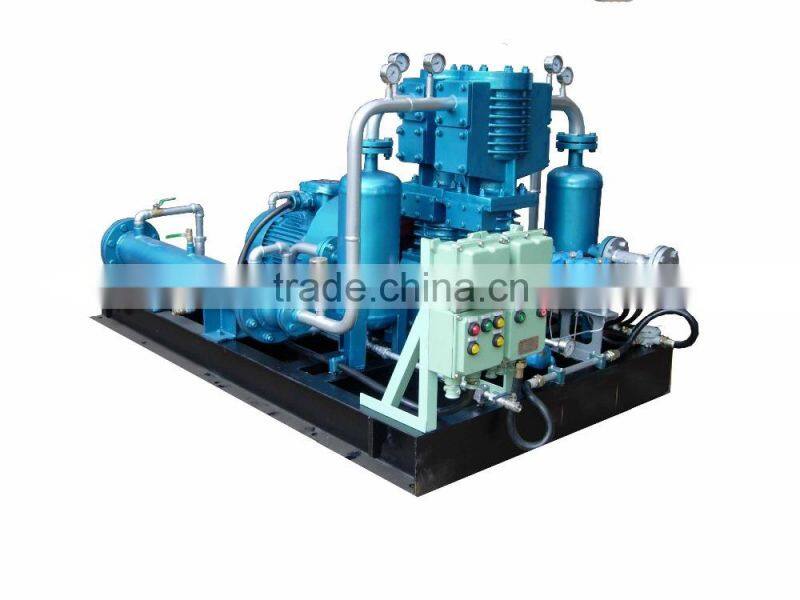

Pyrolysis gas compressor

Scope of application of pyrolysis gas compressor

Host (including chassis and the main motor): according to the design drawings of assembled compressor host.
Auxiliary (including frame): the buffers, air coolers, inlet gas and liquid separators, shield, non explosion-proof star triangle control cabinet and other accessories marked according to general plan.
Pipes and accessories: according to data supplied by pipeline design drawings, supply the fixed variety of straight pipe as well as various types of valves, instrumentation and piping accessories.
Matched Equipment: meter cabinet, electric control cabinet operating box. But does not include high voltage switchgear.

Main parts working life

Name	Life(hours)
Piston ring	8000
Piston supporting ring	8000
Packing	8000
Valve plate, buffer plate, spring	8000
Piston rod	24000
Main bearing	24000
Connecting rod big end bearing bushing	20000
Connecting rod small end bearing bushing	20000
