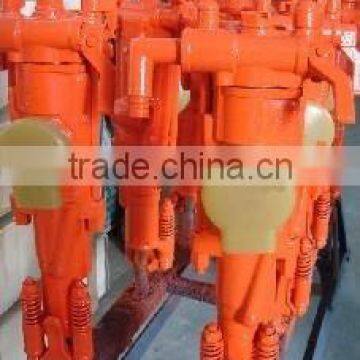

Portable air leg rock drill YT28 KAISHAN Brand
- any port of china
- T/T Credit Card PayPal
You May Like
-
Portable rock drill pneumatic hammer YO18 hand hold rock drill
-
Portable rock drill pneumatic hammer YO20 hand hold rock drill
-
Portable rock drill pneumatic hammer YT23 hand hold rock drill
-
Portable rock drill pneumatic hammer YT27 hand hold rock drill
-
Portable rock drill pneumatic hammer YT28 hand hold rock drill
-
Portable rock drill pneumatic hammer G10 hand hold rock drill
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KAISHAN | |
| Model Number | YT28 | Hammer Type | Other | |
| Hammer Material | Steel | Application | Pick Hammer |
Product Description
Specifications
1)advanced equipment, technology2)excellent quality
3)good Service
4) competitive price
CHARACTER:
Safe and easy to operate
High efficiency and reliability
Best product quality control from cutting edge forging process to product completion
Durable with minimal maintenance
Specification
1.it is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
2. it is matched with the Model FY200A Oil reservior and Model FT160A or FT160B Air-leg, it can perform wet drilling and blast holes from different and angles.
Specification
| Weight | 26kg |
| Length | 661mm |
| Cylinder Dia. | 80mm |
| Piston Stroke | 60mm |
| Air Hole Inner Dia. | 25mm |
| Water Hose Inner Dia. | 13mm |
| Drill Steel Shank Dimensions | 22x18mm |
| Dia. Of Bit | φ34-φ42mm |
| Working Air Pressure | 0.5-0.6Mpa |
| Air Consumption | ≤55 ≤81L/Sec |
| Impact Energy | 73J |
| Impact Frequency | ≥34 ≥37 Hz |
rock drill series
jack hammer
jack hammer | |||||
Model | YO18 | Y18P | Y19A | YO20 | Y26 |
Weight(kg) | 18 | 18 | 19 | 20 | 26 |
Length(mm) | 550 | 550 | 600 | 561 | 650 |
Cylinder size*trip(mm) | 58*45 | 58*45 | 65*54 | 63*55 | 65*70 |
Working pressure(Mpa) | 0.35-0.63 | ||||
Impact frequency(Hz) | ≥32 | ≥30 | ≥28 | ≥33 | ≥23 |
Impact energy(J) | ≥22 | ≥22 | ≥28 | ≥26 | ≥30 |
Air consumption(m3/min) | ≤20 | ≤24 | ≤37 | ≤33 | ≤47 |
application
Rock Drill
characters:
1,high quality materials
2. scientific forging
3.heat treatment
4.safty and economy.
use:
1.widely used in coal, metallurgy, railway, transportion,
2.water conservancy, infrastructure and defense engineering in the level of all kinds of rocks,
The rock drill is used for rock drilling, blasting holes and other drilling worksin the quarries, small coal mines and other constructions.
