Home > Products > Oil press machine > Multipurpose Vegetable Oil Press Herb Oil Press
Multipurpose Vegetable Oil Press Herb Oil Press
- QINGDAO TIANJIN SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Small Type Screw Oil Presser Machine Homemade Corn Oil Press
-
Refined Soybean Oil Machine Soybean Oil Presser Quality Choice
-
Good Oil Extraction Machine Rosehip Oil Press Machine
-
Mini Oil Press for All Kinds of Raw Materials
-
Canola Oil Press Machine Oil Making Machine
-
Mini Coconut Oil Mill Refined Coconut Oil
Product Details
| Usage | Other, Suitable for all kinds of oil plants | |||
| Type | Other, Cold & Hot Pressing Machine | Automatic Grade | Automatic | |
| Production Capacity | 90% | Place of Origin | Henan, China | |
| Brand Name | JINZHEN | Model Number | JZ-OP001 | |
| Voltage | 220V | Power(W) | 180W | |
| Dimension(L*W*H) | 385*180*260mm | Weight | 15KG | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Multipurpose vegetable oil press herb oil press
Screw oil press machine is mainly used for the individual home or oil production,this machine use vacuum filtering, automatic temperature control function, high yield efficiency, finished oil product has quality good
and taste.
Applicability is wide and almost all kinds of oil crops can be pressing by this kind of oil press machine., Including peanut, soybean, canopy, rapeseed, walnut, cottonseed, and so on.
The machine also adopts the forced blanking device, feeding uniform, pressing speed is high.
| Model | JZ-80A | JZ-100A | JZ-120A | JZ-130A | JZ-160A |
| Screw diameter | 80mm | 100mm | 120mm | 130mm | 160mm |
| Main motor power | 5.5kw | 7.5kw | 11kw | 18.5kw | 18.5kw |
| Vacuum pump power | 0.5kw | 0.5kw | 1.1kw | 1.1kw | 1.1kw |
| Heater power | 3kw | 3.5kw | 6kw | 6kw | 6kw |
| Handle capacity | 100-150kg/h | 200-250kg/h | 300-400kg/h | 400-500kg/h | 600-700kg/h |
| Machine weight | 800kg | 900kg | 1300kg | 1320kg | 2000kg |
| Diamension(L*W*H) | 148*63*157mm | 220*81*158mm | 220*165*175mm | 236*110*192mm | 280*130*230mm |

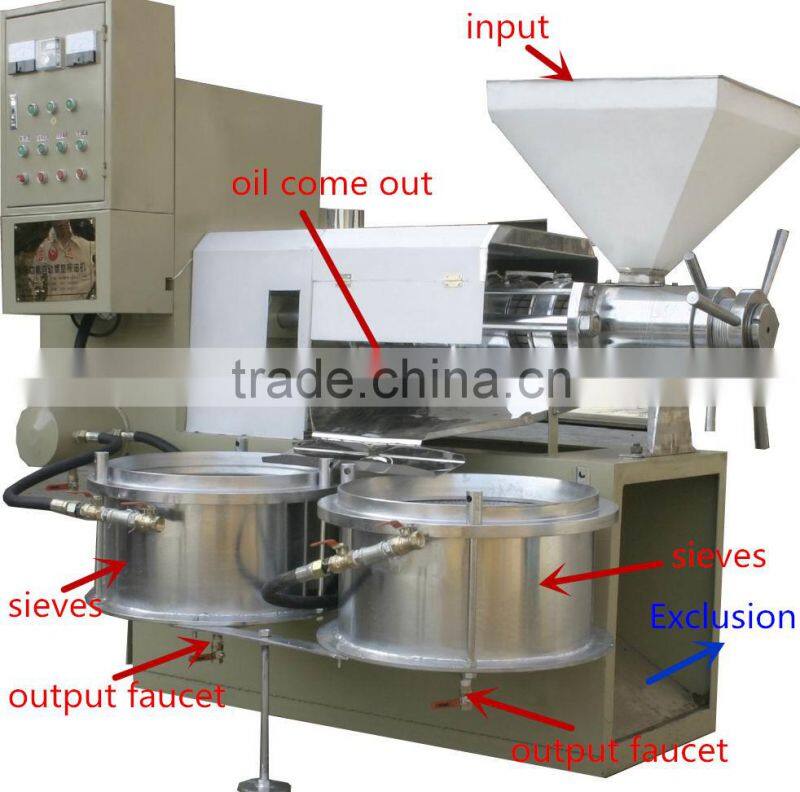

When machine runs, processed raw material from the hopper into the pressing chamber, The screw rotate
and push raw material depper, to squeeze. Because during this process, the raw materil pushing is in the machine running, pressing chamber, squeezer and raw material had a great frictional resistance, so make a relative motion.
Also the heat through friction can meet the oil process operation needs, Improve the yield efficiency,
make the pressing be easier, and the oil will diascharging from gap.
High oil extraction rate - Compared with the old equipment, normal oil extraction rate can be higher than
2 to 3%, for example, processing every 500kg peanuts, on average, final oil can be more than 1-3kg,
annual economic benefit is very considerable.
Energy saving - Equal production this machine can lower 40% electric power, save 6 KWH per hour, electricity production can save $5.
Province -- the same production can save Labour 60%, 1 to 2 people to organize production, can save
labor results about $7.
Widely used - multifunctional machine, can squeeze peanuts, sesame, sesame, rapeseed, canopy, cottonseed, soybean, and so on more than 30 oil crops. Multi-stage press, one time squeeze finished.
Oily pure - vacuum filter residue and ensure the pure oil, conform to the health and quarantine standards.
Small space occupied - 10-20 square meters will be enough for this oil press machine.
Standard export package, custom suffocating free
Air shipping and Sea shipping, we will find the best way for you!
Why choose us ?
1. All the steel come from AN Gang which is one of the best steel.
2. 24 hours online or mobile service.
3. Technical personnel overseas services.
4. Regular telephone interviews.
5. Every single product has to pass strict inspection before leave factory.
