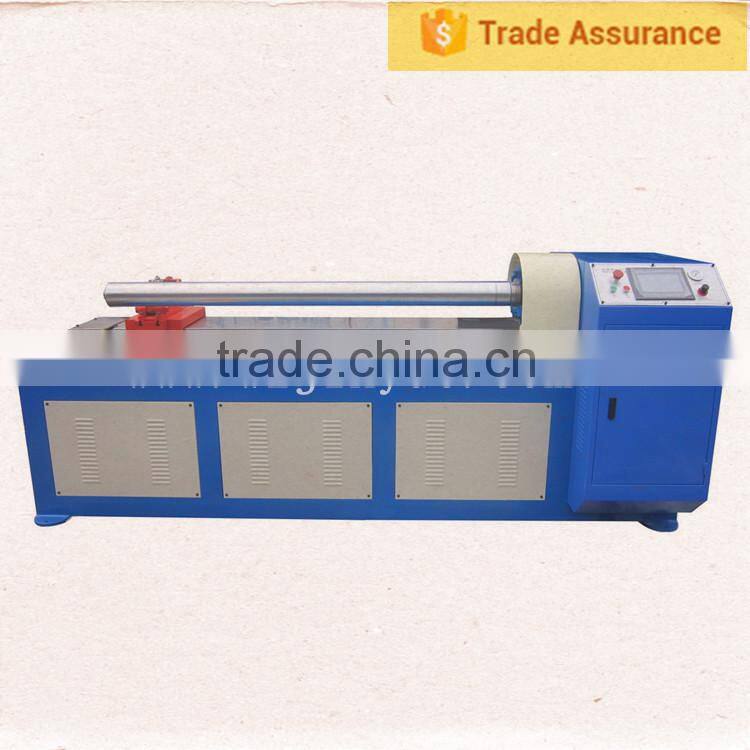

Q5 - 1500 Automatic Paper Tube Core Pipe Cutting Machine
- Ningbo port or Shanghai port
- T/T
You May Like
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Cutting Machine | Place of Origin | Zhejiang, China | |
| Brand Name | wzjinyue | Model Number | Q5-1500 | |
| Voltage | AC380V / AC220V | Power(W) | 2.2 KW | |
| Dimension(L*W*H) | 2800*750*1300 | Weight | 800kgs | |
| Certification | Other, CCIS ( PRC ) SGS | Warranty | one year |
Product Description

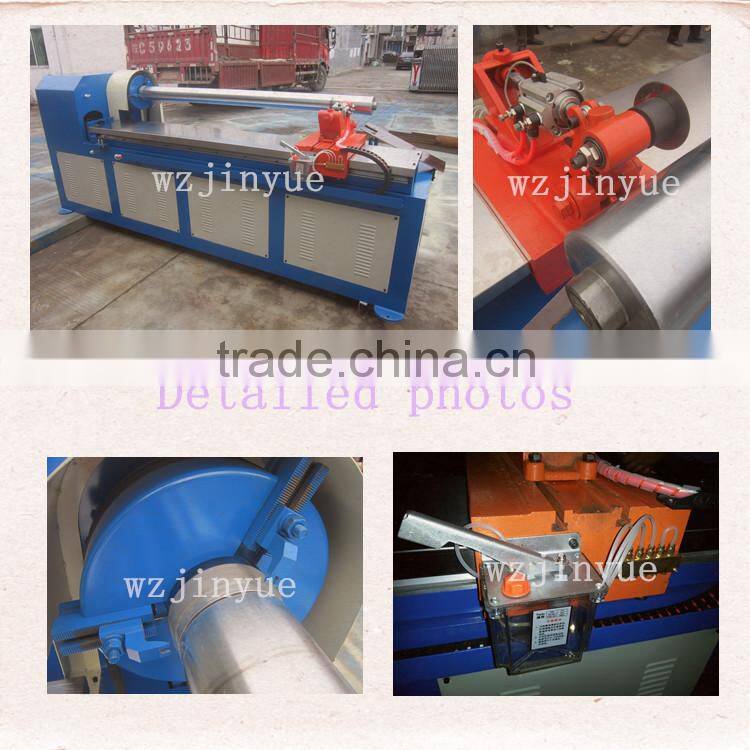

Q5 - 1500 automatic paper tube core pipe cutting machine
USE:
Suitable for large quantity and need to cut short-length paper tube cutting.
FEATURE:
1. Each cut need just 0.5s. (need to change for the different thickness );
2. Circuit adopt import plc programmable logic controller control, and color touch-screen operation;
3. With automatic off, automatic folder management, automatic shutdown;
4. Stable performance, fully automatic production ,system self-diagnostics and warning;
5. Positioning servo systems, precision ball screw drive, cutting the resolution up to 0.01mm
Technical Parameter | |||
Tube length | 10-1500 mm | PLC controller | Delta DVP12SC |
Tube diameter | 50-200 mm | Touch screen | MCGS TPC7062 |
Tube wall-thickness | 1-20 mm | Executive part | CHINT |
Knife quantity | 1 | Signal part | Omron |
Cutting way | Tube rotate only | Pneumatic part | AIRTAC |
Load and unload | manual | Main motor | 2.2 KW |
Feeding way | Pneumatic | Mobile screw | Taiwan |
Operator | 1 person | Move track | Taiwan |
Speed control | Transducer | knife | 2 |
Mainframe size | 2800*750*1300 mm | Useful tool | 1 set |
Weight | 800 KG | ||
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
Q5 - 1500 automatic paper tube core pipe cutting machine
