Q3 - 1500 High Precision Paper Tube Cutting Machine
- ningbo port
You May Like
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Cutting Machine | Place of Origin | Zhejiang, China | |
| Brand Name | wzjinyue | Model Number | Q3-1500 | |
| Voltage | 3*380 | Power(W) | 2.2 KW | |
| Dimension(L*W*H) | 2600*750*1300 mm | Weight | 800 kgs | |
| Certification | Other, CCIS | Warranty | 1 year |
Product Description

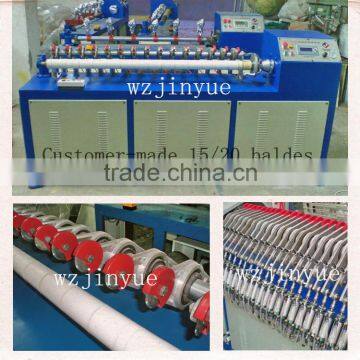

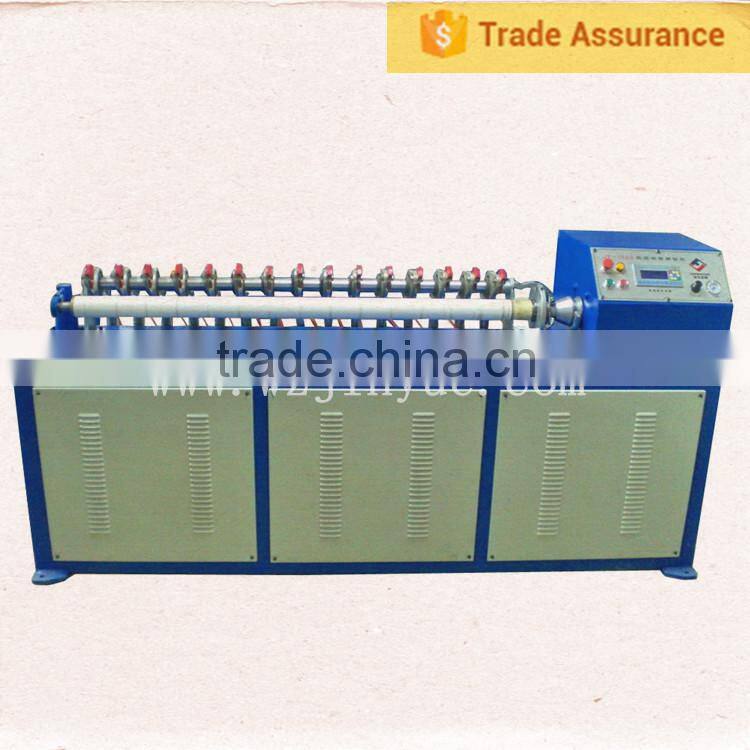

Q3 - 1500 high precision paper tube cutting machine
USE:
Suitable for long-length and high yield paper tube cutting. chemical fiber tubes, OPP film tube, etc
FEATURE:
1.Planetary cutting principle, each cut just 0.5 seconds;
2.Main circuit adopt Mitsubishi plc programmable controller;
3.With automatic off, automatic folder management, automatic shutdown;
4.Stable performance and easy operation;
5.High precision: accuracy can be 0.1mm;
6.paper-tube rotate, blade-axis without rotate, the life of machine is longer than the normal one.
After cutting, the port of paper tube has polished effect
Technical Parameter | Mainframe size & Weight | ||
Tube length | 50-2500 mm | Mainframe size | 3600*750*1300 mm |
Tube diameter | 50-200 mm | Weight | 1200 KG |
Tube wall-thickness | 1-20 mm | Control system | |
Knife quantity | 10 | PLC controller | Delta |
Cutting way | Tube rotate only | Executive part | DELIXI |
Load and unload | manual | Signal part | SHHG |
Feeding way | Pneumatic | Pneumatic part | SAZN |
Operator | 1 person | Main motor | 2.2 KW |
Speed control | Transducer | knife | 2 |
Useful tool | 1 set | ||
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
Q3 - 1500 high precision paper tube cutting machine
