Q6 - 1500 automatictube tube core cutting machine
- 10 Set / Sets per Month
- ningbo port
You May Like
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Cutting Machine | Place of Origin | Zhejiang, China | |
| Brand Name | wzjinyue | Model Number | Q6-1500 | |
| Voltage | 3*380 | Power(W) | 2.2 KW | |
| Dimension(L*W*H) | 5300*2200*1500 mm | Weight | 1500 kgs | |
| Certification | Other, CCIS | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

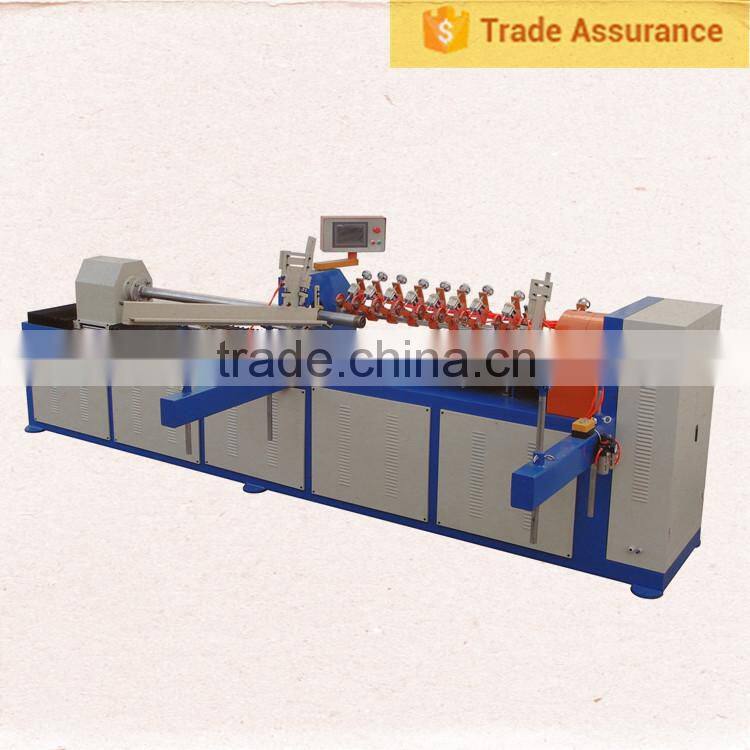

Q6 - 1500 automatictube tube core cutting machine
USE:
Apply to all kinds of high-grade paper tubes cutting, such as chemical fiber paper pipes,
OPP film pipe, tape paper tubes.
Basic parameter:
•Tube I.D.: 30-200mm
•Tube wall thickness: 1-20mm
•Tube length: 60-1500mm
FEATURE:
1.cutting knife independent drive, can set each cutter knife working condition separately
2.circuit adopt imported PLC control, color touch screen man-machine operation.
3.Load and unload paper pipes automatically
4.Alloy tungsten steel knife, cutting effect to be very flat.
Technical Parameter | Control system | ||
Tube length | 60-1500 mm | PLC controller | Delta |
Tube diameter | 30-200 mm | Touch screen | MCGS |
Tube wall-thickness | 1-20 mm | Executive part | CHINT |
Knife quantity | 10 | Signal part | Omron |
Cutting way | Tube rotate only | Pneumatic part | AIRTAC |
Load and unload | manual | Main motor | 2.2 KW |
Feeding way | Pneumatic | Turn shaft motor | 1.5 KW |
Operator | 1 person | Mobile screw | Taiwan |
Speed control | Transducer | Move track | Taiwan |
Mainframe size & Weight | knife | 2 | |
Mainframe size | 5300*2200*1500 mm | Useful tool | 1 set |
Weight | 1500 KG | One instruction manual | |
1.OEM service is welcome!
2.We will provide all the details to you during the mass production
3.Customize your mould according to your need
4.Your requirements and complains are highly respected
5.Necessary test and certification can be obtained as you request
6.Our technician and engineers are available to go abroad for machine commissioning and teach how to operate machines.
7.Any spare part of our machines, you can buy from us.
With 15 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details in the below, click “Send”NOW!
