Product Details
| Place of Origin | Guangdong, China | Brand Name | SHEEN | |
| Model Number | SR600-16 | Type | Composite Sheet | |
| Application | LED lighting -Notebook an desktop pc -CPU modules -Microprocessors ... | Thickness | 0.005inch~0.04inch(0.127~1.016MM) | |
| Grade | Industrial Grade | C Content (%) | 99% |
Product Description
Excellent Heat Stability High Quality Graphite Material Sheet For LED
| Product Information |
| Product Name | Excellent Heat Stability High Quality Graphite Material Sheet For LED | |
| Item No. | SR600-16 | |
| Thickness (inch/MM) | 0.005”~0.04″ | |
| Thickness Tolerance | ± 10% | |
| Material | Natural Graphite with Additive Polymer | |
| Typical Thermal Conductivity | 16.0W/m-K | |
| Tensile Strength(1400kpa) | 215psi | ASTMF-152 |
Thermal Resistance (in2 °C/W)@100psi | 0.029 | |
| Length | No Maximum | |
| Dimensions | Die-cut into specific dimensions | |
| Electrical Performance | Electric | |
| Adhesive coatings | Optional | |
| Certificate | ROHS compliant | |
| Introduction | The SR600-16 are high-performance and heat-conductive interface materials with the reasonable prices.They can be used in applications where no requirement for electric insulation is specified.The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained. | |
| Features and Benefits | 16W/mK thermal conductivity - Electric - Adhesive coatings are optional - Can be die-cut into specific dimensions -ROHS compliant | |
| Typical Applications Include | -LED lighting -Notebook an desktop pc -CPU modules -Microprocessors -Hot and Cold plates -TelecoMMunication Hardware | |

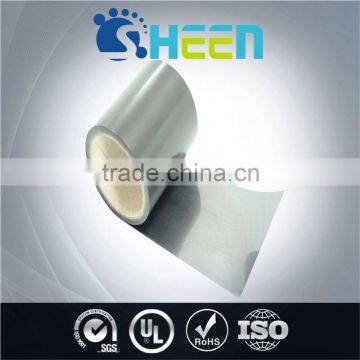

| Product Display |
| Hot Sale |
| " target="_blank">Thermally conductive " target="_blank">pad > | " target="_blank">Thermally conductive " target="_blank"> tape > | " target="_blank">Thermal silicone RTV > | " target="_blank">Thermal grease > |
| " target="_blank">Phase change thermal " target="_blank"> interface materials > | " target="_blank">Thermally conductive " target="_blank"> silicone pug > | " target="_blank">Thermally conductive " target="_blank"> insulators > | " target="_blank">Thermally conductive " target="_blank"> graphite sheets > |
| " target="_blank">Thermally double " target="_blank"> component silicone > | " target="_blank">Thermally conductive " target="_blank"> plastics > | " target="_blank">Epoxy adhesive > | " target="_blank">More products > |
| Product Advantage |
|
|
|
|
Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid. |
| Company Overview |
| Certificate |
| Contact |
| We can make many specifications according to your request! For more information. Please contact us. | ||||||||||
|
| FAQ |
1. What are your main products? We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. 2. What about the product quality and which certificate do you have? We have UL certificate and RoHS certificate. 3. How long does it take to deliver after order? For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements. 4. What about your after-sale service? We fully guarantee our product quality and will provide free technical guidance on operations. |
