Home > Products > Shaped stone cutting machine series > All-Purpose Shape-Profiling Stone Cutting machinery

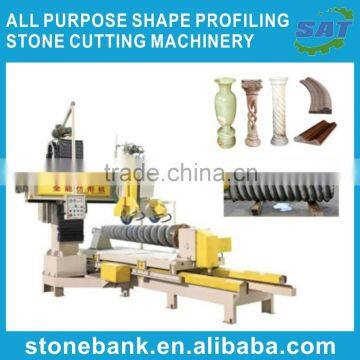

All-Purpose Shape-Profiling Stone Cutting machinery
- 30 Set / Sets per Month
- T/T Credit Card
You May Like
Product Details
| Type | Stone Cutting Machine | Place of Origin | Guangdong, China | |
| Brand Name | SAT | Model Number | XZC-280W | |
| Voltage | 380V 50Hz |
Product Description
The machine has the function of auto shape cutting,cutting sides,grinding sides,moving back-
ward,imitating straight stone-line,arc stone stone line.Co;umn,pillar,column head,column cap,whorl pillar,vase.On the base of auto shape cutting,
the machine has been adding the length of vertical grinder and cross beam,enlarged the length
of rip rotate across in 360 as vertica180.It can shape and process are stone-line with the serices shaking working platform.It can process the column,column head,column
cap,whorl pillar,vase and other special art craft with wild,it runs nicely and stable with high
quality and performance.It is the first chioce for the stone art carving and material factories
bacause on structure hardness and nicety.
TECHNICAL PARAMETER
Power supply | 3P AC380V 50Hz | Input power | 15KVA |
Main power | 7.5W | Principal dimensions | 5000x2300x3000mm |
Maximum crossing travel | 1200mm | Gross weight | ≈4800kg |
Speading travel of working platform | 3000mm | Diameter of bearing | 600mm |
Maximum diameter of saw blade | 350-600mm | Cut-to-size slabs | 3000x2000x100mm |
Cut-to-size arc | R3000x1200x600mm | Cut-to -size border | 3000x1000x300mm |
Maximum diameter of column,vase,capital,pedestal | 600mm | ||
Maximum length of roman-styled column,spiral column | 2500mm | ||
