Model-3000 thin slab cutting machine High quality
- 20 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
You May Like
Product Details
Condition | New | Type | Stone Cutting Machine | |
Use | Marble | Place of Origin | Guangdong, China | |
Model Number | 3000 | Voltage | 380V 50Hz | |
Power(W) | 22500 | Dimension(L*W*H) | 6600X8200X4680mm | |
Weight | 7500kg |
Product Description
Specification

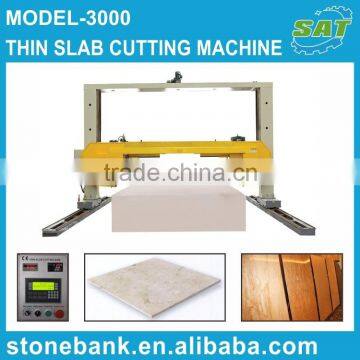

Model-3000 GANTRY THIN SLAB BAND SAW CUTTING MACHINE
Machine dimension | 6600x8200x4680mm | Water put | 100L/min |
Machine setting area | ≥90m² | Weight | 9800kg |
Power full | 380V 50HZ | Blade size | 13200x125x2.2 |
Total power | 22.5kw | Max production dia | 3000x5000x2000mm |
Main motor power | 18.5kw | Cutting thickness | 5-700mm |
Pressure system power | 1.5kw | Working speed | 0-100mm/min |
front/back power | 1.5kw | working pressure | 5-7Mpa |
Rise/down power | 1.5kw | Machine lubricating oil | CD40 |
Hydraulic pressure oil | 46# | Hydraulic pressure system valum | 25L |
This machine is used to cutting marble,composite board and artificial stone.It adopts the hydraulic compensation system to insure the cutting stationarity.It can auto adjust the speed for different hardness.
This machine with the special design of circular strap,so that it’s unlimited by the length od stone not only suitable lor composite board cutting,but also for composite board cutting.
Machine show
1.Payment Terms
(1)50% of contract value will be paid by T/T in advance as down payment;
(2)50% of contract value will be paid by T/T before the machine delivery..
2. Delivery Terms
Within 30 days after receipt of down payment.
3. Packing
To be packed in standard packing, wooden form.
4. Start-Up
This includes all actions necessary to put the above-mentioned equipment in operation until the completion of the production acceptance standards.
5. Training
Includes on-site basic operation and maintenance training.
Warranty
The Seller guarantees that the equipment is completely brand-new and will conform to the technical specifications. The mechanical guarantee on machinery and equipment shall be 12 months after the acceptance date. During the guarantee period, if the accessories or equipment are damaged, due to the Buyer’s insufficient maintenance or improper operation of the equipment, the Seller will replace or repair it at Buyer’s charge. If the said damages are due to faults in design or workmanship, the Seller will replace or repair it at his own cost. (Vulnerable parts excluded)
