Home > Products > 5 Gallon Water Filling Line > 5 Gallon Barrel Bottle 19L Water Filling Machine
5 Gallon Barrel Bottle 19L Water Filling Machine
- SHNGHAI PORT
- T/T Credit Card
You May Like
-
5 Gallon Filling System For Bottle Water Washing Filling Capping Three In One
-
Full Automatic 3&5 Gallon Jar Water Filling Machine
-
5 Gallon Barreled Water Bottle Filling Plant/Manufacturer
-
5 Gallon Pure Water Filling Machine
-
5 Gallon Water Filling Machine/20 Liters Water Filling Machine/Water Bottling Machine Quality Choice
-
QGF 3-5 Gallon Barreled Drinking Water Auto Washing Filling and Sealing Unit
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Barrel | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380/ 415 V | Power | 3.9 KW | |
| Place of Origin | Jiangsu, China | Brand Name | BEIERDE | |
| Model Number | QGF | Dimension(L*W*H) | 5100*2100*1600 mm | |
| Weight | 4T | Certification | ISO; CE; SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description

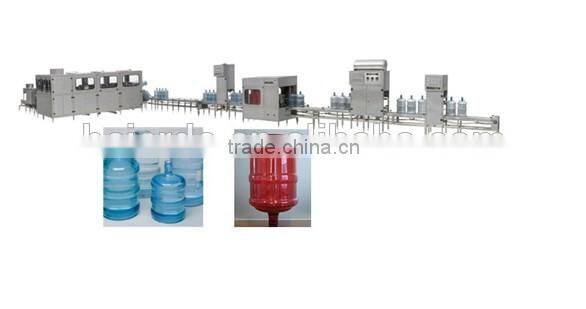

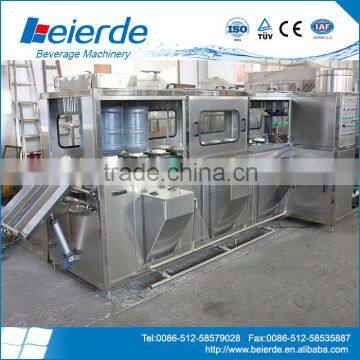

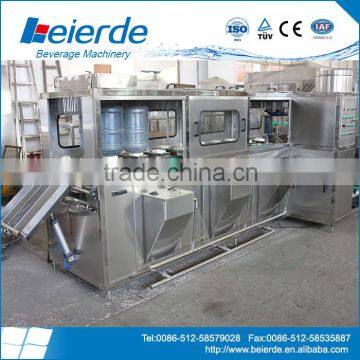

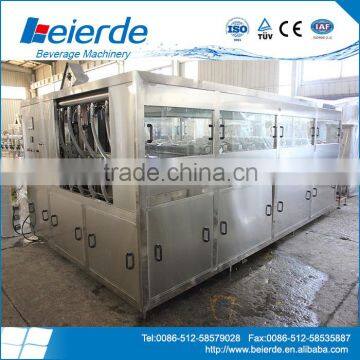

QGF Series Barrel Water Filling Production Line Machine is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideals for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, Strong for erosion proof ability, easy to washing. Mostly electric components are adopted SIEMENS, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic barreling machine.
PRODUCTS
CHARACTERISTICS:
The parts with touch water adopt high-quality stainless steel. The cylinder gear runs smoothly and the fixed position is correct. It adopts inserting-type washing technology to remove washing blind angle.
APPLICATION:
It is especially used for 5 Gallon barrel pure water washing, filling, capping production line.
Product Description
1) The machine combines the functions of rinsing, filling and capping.
2) Whole body of the machine is made of stainless steel with anti-corruption and easy-rinsing.
3) The main electrical parts are from Siemens and Omron.
4) Pneumatic parts are imported.
5) Rinsing nozzles adopt American spraying system technology.
6) With compact structure, high efficiency and stable operation, this is a highly automatic unit with machine, electricity and pneumatics in one machine
Technical Specifications
Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 3 | 4 | 5 | 6 |
Barrel volume (mm) | 3/5 Gallon | |||||
Capacity(B/H) | 120 | 300 | 450 | 600 | 900 | 1200 |
Gas Pressure | 0. 4-0. 6Mpa | |||||
Gas Consumption | 0.6 | 0.9 | 1.8 | 2.5 | 3.6 | 4.8 |
Power(KW) | 1.75 | 3.0 | 3.8 | 5.6 | 7.5 | 8 |
Size(mm) | 3190x650x1550 | 3100x900x1650 | 3550x1100x1800 | 3800x1100x1800 | 3800x1500x1800 | 3800x1800x1800 |
Weight(KG) | 800 | 1350 | 1860 | 2300 | 3500 | 4000 |
Packing materail: Standard wooden package.
Delivery time: 30 Days after receiving downpayment and bottle sample.
What service can we offer you?
• Fully new machine with good wooden package will be delivery to you.
• Your inquiry related to our product & price will be replied within 24hours
• Well-trained & experienced staff is to answer all your inquiries in English and Chinese
• Experienced engineer will be dispatched in 7 days after receiving customer’s demand.
• Working time: 8:30am ~6:00pm, Monday to Saturday (UTC+8).
• OEM & ODM projects are both available
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
Contact Us
- Zhangjiagang Beierde Beverage Machinery Manufacture Co., Ltd.
- Contact nameAdmin Huang Chat Now
- Phone0086-512-58579028
- Address27 Sanxing economical developing area in Jinfeng town, Suzhou, Jiangsu
