100-900 BPH 5 Gallon Filling Machine/plant Cost
- Shanghai Port
- T/T
You May Like
-
Automatic 5 Gallon Water Filling Machine/5 Gallon Water Bottle Plant Cost
-
450 Bottles 5 Gallon Bottles Water Filling Machine in China
-
QGF-300 20 Litre Water Bottled Water Filling Machine
-
450 Bottles 5 Gallon Water Filling Machine (washing-filling and Capping)
-
Beierde Brand 20 Liters Water Bottle Filling Machine/production Line
-
Plastic Bottle 20 Liters Water Bottle Filling Machine/production Line
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Mechanical | |
| Voltage | 220V/380V | Power | 6.5KW | |
| Place of Origin | Jiangsu, China | Brand Name | BEIERDE | |
| Model Number | QGF | Dimension(L*W*H) | 2500x500x1800 | |
| Weight | 3,000kg-7,000kg | Certification | CE & ISO9001, ISO9001 and CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

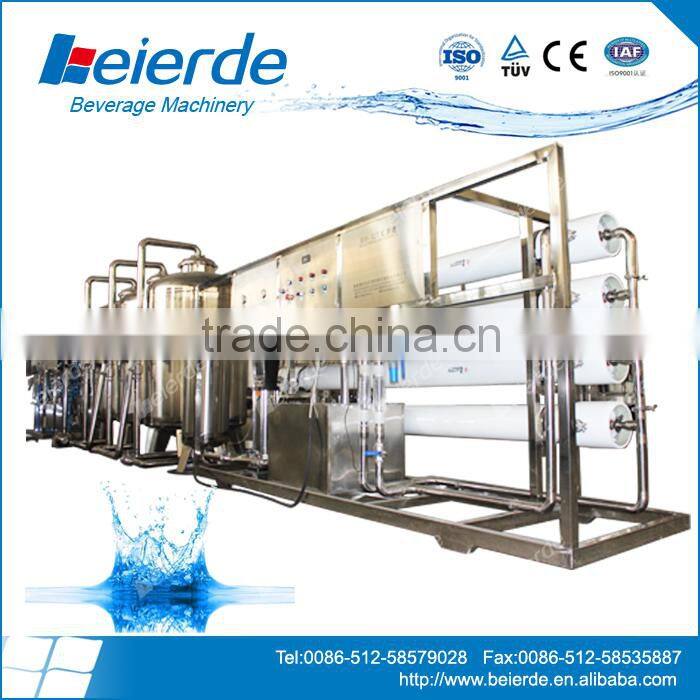

1. Water Treatment System
1.With high quality of super-low-pressure TFC compound RO membrance precise filter technique, the ability of getting rid of metallic ions can reach 99%. And with other filters, you can produce pure water conforming to the hygienic standard.
2.Active carbon can absorb chlorine residue 100%, protect RO membranes from damage, also gets rid of color and smell, improve the taste of pure water.
3.Water pressure protects system at all the pumps, connect the electricity source, open the water input value. When the pressure is lower than the rated voltage, the pump will stop automatically.
4. Making water soft if the hardness of original water, It will be prevent membranes from fouling and keep the flux of pure water.
5.The apparatus also has flocculants function, RO membranes stopping filth preparation, HP range regulator connected with the medicine-adding element, you can adopt any of them according to the water quality of your place.
6.With the electro conductivity monitor on the control panel, you can check the water quality at any time.
7.Safe and reliable electrical system design; With automatically flush of RO membrane. And with low-pressure-protecting system, the apparatus will start or stop according to the water level in the pure water tank connected with the apparatus.
2. 100-900 BPH 5 Gallon filling machine/plant cost

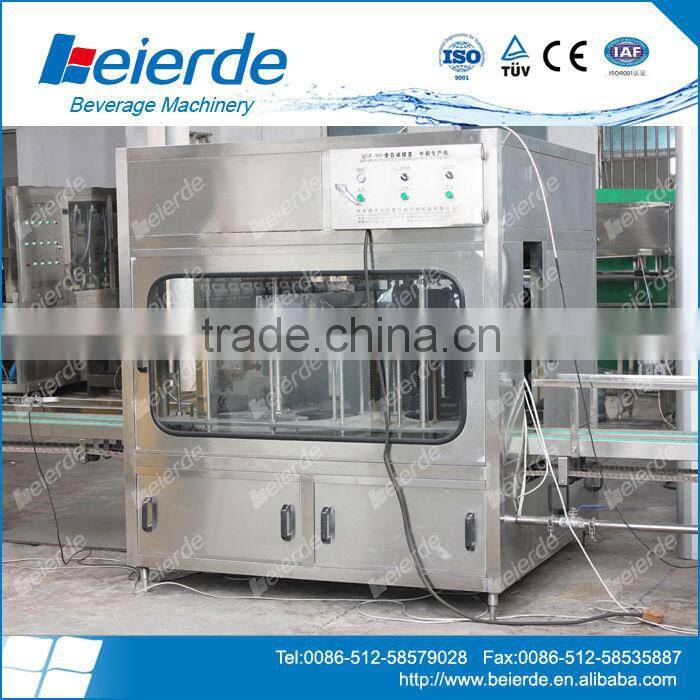

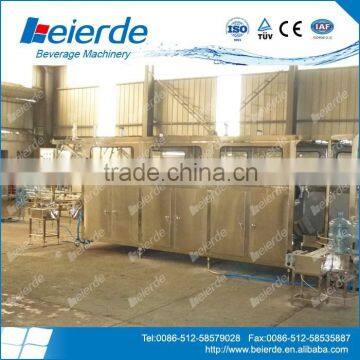

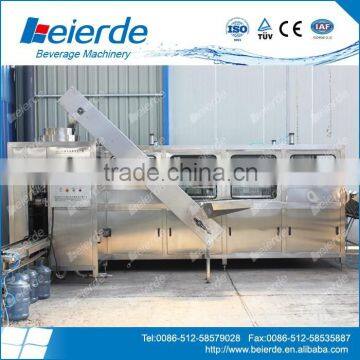

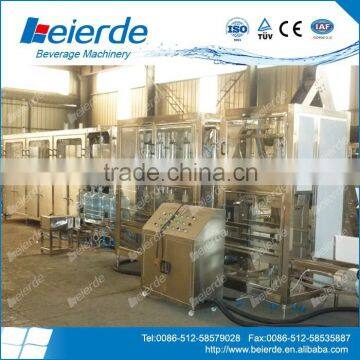

The QGF series filling processing line was designed for 3 or 5 Gallon, it was integrated washing part, filling part and capping part in one unit, in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer. The sealer can seal caps automatically. This product is well-design and high stability. The 3/5 Gallon water filling machine including auto cap pull out machine, auto bottle insider/outsider washing, 3 in 1 washing-filling-capping machine, lamp inspection, auto bagging machine and film shrinking tunnel etc.
Processing of 100-900 BPH 5 Gallon filling machine/plant cost
That is an automatic washing-filing-capping processing, from:
Start:
Step 1. Automatic cap pull out
Step 2. Automatic outside bottle brushing
Step 3. Automatic inside bottle brushing
Step 4. Moving washing-filling- capping machine--------up bottles
Step 5. Washing (using raw water, Iye and sterile water)
Step 6. Filling and capping
Step 7. Lamp check
Step 8. Auto bagging machine
Step 9. Film Shrinking Tunnel
Finish.
Product Specification
| Model | Production Capacity | Total Power(KW) | Dimension |
| QGF-100 | Max 120BPH | 2.8 | / |
| QGF-300 | Max 300BPH | 3.3 | / |
| QGF-450 | Max 450BPH | 4.5 | / |
| QGF-600 | Max 600BPH | 5.7 | / |
| QGF-900 | Max 900BPH | 6.9 | / |
Product Shows
Outside washer
