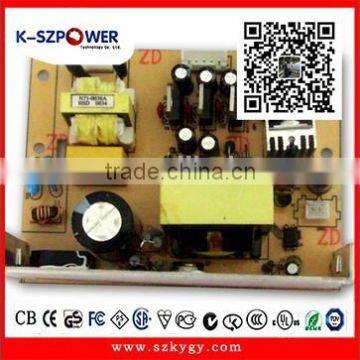

2015 k-127 YGY AC DC12v 5a smps metal case open frame switching power 60w supply

FOB Price

USD $1 - $10 / Unit

100 Units(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

SPECIFICATIONS
OUTPUT
MODEL	K--65-5	K--65-12	K--65-15	K--65-24
DC Voltage	5V	12V	15V	24V
Rated Current	12A	5.2A	4.3A	2.7A
Rated Power	60W	65W	65W	65W
Ripple & Noise	100mV	100mV	100mV	100mV
Voltage Tolerance	±1%	±1%	±1%	±1%
Load Stability	±3%	±2%	±2%	±2%
Setup, Rise, Hold Up Time	200ms,50ms,20ms at full load

INPUT
Voltage Range	90~264VAC 47~63Hz;120~370VDC
Efficiency	76%	79%	80%	80%
Inrush Current	Cold-start current 20A/115V 40A/230VAC

PROTECTION
Over Load	105%~150%
	Protection type: plusing hiccup shutdown Reset:auto recovery

ENVIRONMENT
Working Temp., Humidity	-10℃~+50℃; 20%~90%RH
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD
Safety Standard	Meet UL60950-1.TUVEN60950-1 approved
EMC Standard	EN5022 CLASS B EN61000-3-2-3 EN61000-4-2.3.4.5.6.8.11 ENV50204

OTHERS
Dimension	12776.242mm(LWH)
Weight	0.22Kg
Packing	54PCS/14.2Kg/1.35CUFT
