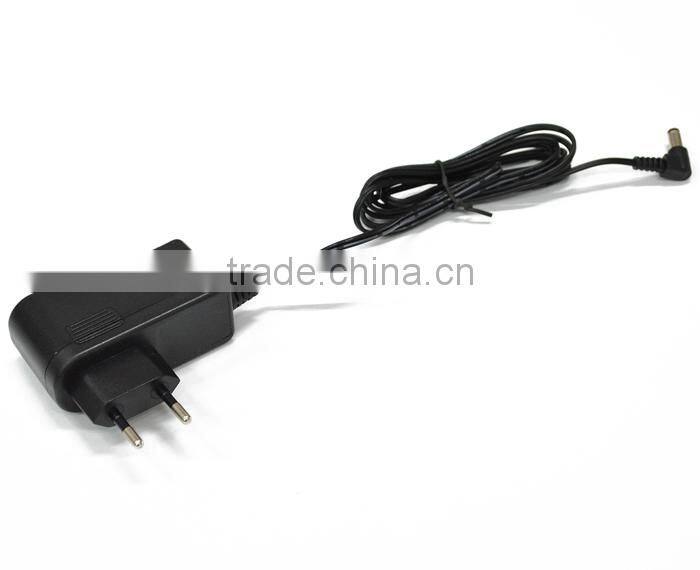

2015 K-144 YGY 8.4v Li-ion Battery Charger 8.4v500ma 8.4v1a Supplier's Choice

Application
1 To Charge Router,Wireless,Equipment
2 To Power Digital Products
3 To Power Networking Modem, Hub

4.Suitable for  UPS, E-bike, Motor, Solar systems, Torch, Lamps.etc.

CCTVs, securities, antennas, fans, radios, videos, toys, aquariums, desk lamps, LED lamps and more


 led power lighting ,led display ,led stripes .and street light

Digital cameras, Electric Bicycle, Mechanical equipment, Portable Electric Device, Phone, MP3/MP4, Boat Device, Rechargeable bus.
5To Power CCTV, Camera,Telephone,DVR, LED Display, Lighting,LEDS.Set-top Box, Speaker, Scanner etc.

Electrical Specification
1 Universal Input:  100-240Vac 50/60Hz

100V AC/60Hz (Japan), 120V AC 50/60Hz (North America), 220V AC/50Hz (China, Korea), 230 to 240V AC, 50/60Hz (Europe, Russia), 240V AC, 50/60Hz (Australia and New Zealand)

AC pins:EU US UK AUS Korea Japan South Africa plugs(power cable)

Power cable:1.5Meters(as your requirment)

DC cable length:1.5Meters

Cooling :Nature

DCjack:4 pin,6 pin,Kukdong connector,Banana female or male connector(as your demand)
2 Output Voltage at no load: 4.2V  8.4V  12.6V  16.8V  21V  25.2V  29.4V  42V  54.6V (Optional)

   Hight charging voltage : 4.2V  8.4V  12.6V  16.8V  21V  25.2V  29.4V  42V  54.6V
3 Output voltage&Current:  4.2v1.5a  8.4v1.2a  12.6v1a  16.8v0.5a   (Optional)
4Rated Power: 15Wmax

5Ripple & Noise:  Output voltage 1%, Ripple&Noise≤120mv

6Efficiency:85%

7Aging(burn-in) test:8 hours 100% full load burin-in testing Cooling by free air convection

8.Temperature: Case 65 °C Max.

9.Ac input current:450MA

10.input plug: Input plug: EU/VDC (EU), US (North America), PSE (Japan), SAA (Aust, NZ), BS (UK and HK), Brazil, South Africa, CCC (China), EK (Korea)  (Optional)

11.AC cable including: US,EU,UK type available

12.Packing type: Blister or color box

13.usage:   UPS, E-bike, Motor, Solar systems, Torch, Lamps.etc.

14.advantage:Its advantages: very low-ripple and noise, good regulation, low-disturbance noise but more heavy, bigger size, than switching power supply

15.No-load input power (240V AC): ≤0.5W at Rated Voltage(adapter at no load) (EI28 can do CEC IV, CEC V)Efficiency: CEC V and ErP II

16.Output voltage precision: 5%Regulation: ±1% line, ±5% load

Mechanical Specification

1 Size:  75mm(L)*29mm(W)*72mm(H)

2 Weight: 95g
3 Color: Metal housing no waterproof type

Safety Certification
1 CCC PSE
2 SAA, C-Tick,KC,ROHS,
3 UL /cUL, FCC
4 CE, CB, GS, BS1363

Energy Standard
1 MEPS
2 CEC-V
3ERP V
4 Energy Star
5 No load Standby Power: <0.3W

Protection Function
1Over voltage protection
2 Over current protection
3  Short circuit protection Polarity Reverse Protection

4.Over temperature protection

5.Thermal cut-off capability

6.over-load protection

Environmental Protection
1 RoHS, REACH , CPSIA or PAHs Compliant On Request

Operation And Storage Condition
1Operation Temperature: -20°C to 40°C
2 Operation Humidity: 20% to 90% R.H.
3 Storage Temperature: -20°C to 75°C
4 Storage Humidity: 1% to 90% R.H.
5 MBFT: > 50,000Hours

6 loading regulation:5%

7 Line regulation:1%

8 Inrush current:Limited 30A when cold starting

Packing Information
1 Industrial packing, white box or color box packing
2 Carton Size: 44cm*39cm*29cm

3 Gross Weight: 10kg

4.Quantity/Carton:100pcs
