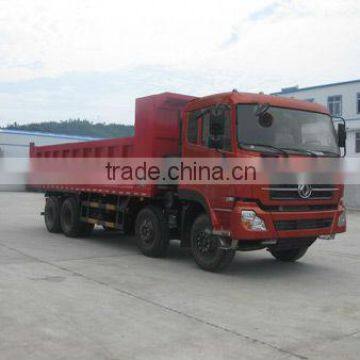

Dongfeng Heavy Duty 8x4 Dump Truck 28-35CBM

FOB Price

US$ 58,000 - 62,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Fashion design
2.Mature technology and stable performance
3.Competitive Price
4.CCC, ISO9001

Dongfeng heavy duty 8x4 dump truck 28-35CBM

Products Technical Specification
Brand-Series		DONGFENG T-LIFT
Chassis Model		DFL3310A13
Emission Standard		Euro 3
Fuel type		Diesel
Cabin		D310,Half row,With A/C,Sleeper
Whole vehicle main dimensions (mm)	Overall dimensions (L×W×H)	1139025003450
	Crago body dimensions	840023001500
	Wheel base	1850+4200+1350
	Front overhang	1500
	Rear overhang	1000
	Min. ground clearance	510
Weight data (kg)	G.V.W	31000
	Curb weight (chassis)	15005
	Max payload	40000-65000
Whole vehicle main performance	Max. speed (km/h)	80
Whole vehicle main performance	Max. slope of climb (%)	35
Engine	Model	L340 30
	Maximum power	250kw /340hp
	Number of cylinders	6
	Displacement (L)	8900
	Engine Manufacturer	Dongfeng
Transmission	Brand and Model	FAST,16JS168T
Transmission	Number of gears	16 forward gears & 2 reverse
Axle	Front Load capacity (ton)	7.5
Axle	Rear Load capacity (ton)	16
Suspension	Front	9- Leaf spring
Suspension	Rear	13-leaf spring
Clutch	Clutch	Φ430
Steering	Brand	ZF
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking
Brake system	Parking brake	drum brake system
Electric device	Rated voltage	24V
Tyres & Quantity		12.00R20 & 12+1
Fuel tank capacity		350 L
Cargo body Description
Cargo body dimensions (mm)		840023001500
Cargo body material		Equipped with material of carbon steel Q235
Cargo body thickness		Side 8mm thickness;bottom 10mm thickness
Lifting System		Equipped with front hydraulic ram, HYVA (FC191) BRAND

If need more information ,please feel free to contact me.

Welcome to visit our company in China!
