Home > Products > Conveyor Belt > Polyester Rubber Conveyor Belt for Rubber Belt Conveyor

Polyester Rubber Conveyor Belt for Rubber Belt Conveyor

FOB Price

US$ 5 - 50 / Meter

50 Meters(Min. Order)

Port Xingang Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Huayun
Model Number	Conveyor belt

Product Description

polyester rubber conveyor belt

Mould of polyester rubber conveyor belt

NN100, NN150, NN200, NN250, NN300, NN400 , NN500, NN600

Standards of polyester rubber conveyor belt
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etcTypes:
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type,

Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type,

High-grade type and etc.

polyester rubber conveyor belt with nylon canvas have the following merits:
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.

Specification and technical data of polyester rubber conveyor belt

Fabric type	Fabric structure		Fabric specs	Ply Thickness (mm/p)	strength (N/mm)					Cover thickness (mm)		Width (mm)	Length (m)
Fabric type	Wrap	Weft	Fabric specs	Ply Thickness (mm/p)	2ply	3ply	4ply	5ply	6ply	Upper	Lower	Width (mm)	Length (m)
Nylon (NN)	Nylon (N)	Nylon (N)	NN-100	0.75	200	300	400	500	600	1.5 ~ 12	0 ~ 4.5	400 ~ 2200	≤300
			NN-150	0.80	300	450	600	750	900			400 ~ 2200
			NN-200	0.90	400	600	800	1000	1200			500 ~ 2200
			NN-250	1.15	500	750	1000	1250	1500
			NN-300	1.25	--	900	1200	1500	1800
			NN-400	1.45	--	--	1600	2000	2400			800 ~ 2200
			NN-500	1.55	--	--	2000	2500	3000			800 ~ 2200

Adhesion and elongation of the belt

Belt carcass	Adhesion strength			Elongation
	Between plies N/mm	N/mm Between rubber and carcass		Longitudinal elongation elongation at break%≥	Longitudinal elongation at reference load%≤
		Cover thickness ≤1.5mm	Cover thickness ≥1.5mm
Nylon canvas	≥4.50	≥3.20	≥3.50	10	4.0

According to the customer’s requirements, the belts could be made into endless belt, and the covering

rubber could be made into pit, chevron and level type etc.

Production process for polyester rubber conveyor belt

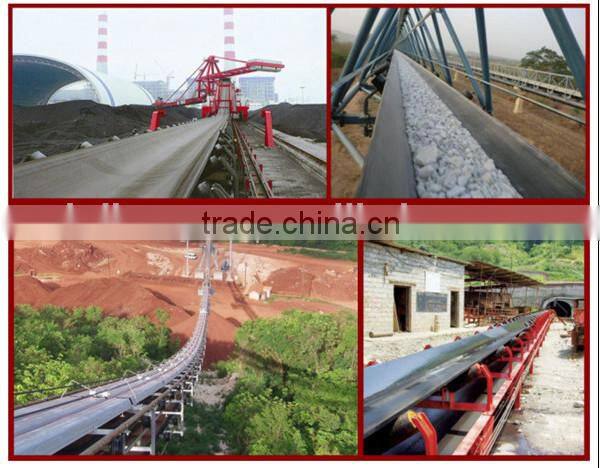

Useage:

It is suitable for conveying materials at medium or long distance and under conditions of heavy load and high speed.

Our research and development center, test equipment

Certifacations

Our company and customers

For more details,please inquiry us!
