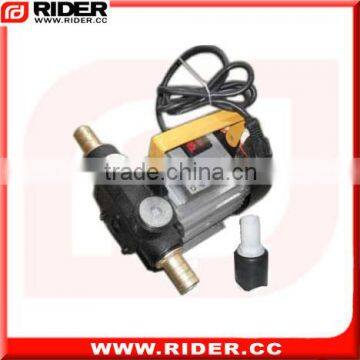

550W AC 220V diesel high pressure pump

FOB Price

US$ 41.04 - 74.38 / Piece

50 Pieces(Min. Order)

Port Ningbo&Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Rider
Model Number	GS-EO-P220	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Oil
Power	Other, Electric, 550W	Standard or Nonstandard	Standard
Fuel	Other, electric	Pressure	High Pressure
Application	Other, oil transfer

Product Description

Specifications

550W DC 220V diesel fuel rotary transfer pump,diesel oil transfer pump, diesel fuel pump..

Product Description

Voltage: AC220V/50HZ & AC110V/60HZ
Rated Power 550W
Speed Range 2950rpm
Pump flow rate 20-80 L/min
Max suction 5m
Max lift 15m
inlet/outlet port fitting 1" BSPT
Relief valve: Yes

Ideal for fueling diesel and kerosene.
The heavy duty motor drives the wearproof vane.
Be allowed to continuous work for hours.
Relief valve inside the pump head will efficiently protect the motor when overload.
It's of great self-sucking strength and swift fueling.

Packaging & Shipping

Overall View Size: 30x21x23cm

Packing 2pcs/ctn
Outer Carton 45x32x25cm
G.W./N.W. 21/20KG
Qty for 20'GP 1620pcs
Qty for 40'GP 3240pcs

More products

Model	Specification	Packing info.	Feature
GS-EO-P12	Voltage DC 12V Rated Power 0.27HP/200W Type Self Priming Vane type Pump Rated Current 8.5 amps Speed Range 3000rpm No-load speed 4000rpm Max suction 3m Max lift 6m Flow rate 50L/min inlet/outlet port fitting BSPT 3/4" Relief valve Yes	Inner case: 30x17x16cm G.W./N.W: 4.5/4.3kgs Packing 6pcs/carton Outer Carton 53x31x34 G.W./N.W: 30/29kgs Qty for 20'GP 2900pcs Qty for 40'GP 5800pcs	Self Priming Vane type Pump Ideal for fueling diesel and kerosene on construction machinery fields. Cast iron material for pump body. Sintered steel Rotor. Acetalic Vanes. Fluroelastomer Seals Duty Cycle: 30 minutes run time The diesel pump has passed strict heat resistance and earthquake resistance test. Relief valve(venting valve) inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling. The rotating blade is made of powder metallurgy steel, more durable then common steel material. Fuse protection for overload current is optional. Accessary: 7ft power cable with brass battery clips. 3/4" inlet and outlet kirsite fitting and stainless steel filter net for cleaning. clamps, teflon tape, socket head wrench, screws and nuts
GS-EO-P24	Voltage DC 24V Rated Power 0.27HP/200W Rated Current 12 amps Speed Range 3000rpm No-load speed 4000rpm Max suction 3m Max lift 6m Flow rate 50L/min inlet/outlet port fitting BSPT 3/4" Relief valve Yes	Inner case: 30x17x16cm G.W./N.W: 4.5/4.3kgs Packing 6pcs/carton Outer Carton 53x31x34 G.W./N.W: 30/29kgs Qty for 20'GP 2900pcs Qty for 40'GP 5800pcs	Self Priming Vane type Pump Ideal for fueling diesel and kerosene on construction machinery fields. Cast iron material for pump body. Sintered steel Rotor. Acetalic Vanes. Fluroelastomer Seals Duty Cycle: 30 minutes run time The diesel pump has passed strict heat resistance and earthquake resistance test. Relief valve(venting valve) inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling. The rotating blade is made of powder metallurgy steel, more durable then common steel material. Fuse protection for overload current is optional. Accessary: 7ft power cable with brass battery clips. 3/4" inlet and outlet kirsite fitting and stainless steel filter net for cleaning. clamps, teflon tape, socket head wrench, screws and nuts
GS-EO-PKS12	Voltage DC 12V Rated Power 0.27HP/200W Rated Current 8.5 amps Speed Range 3000rpm No-load speed 4000rpm Max suction 3m Max lift 6m Flow rate 50L/min inlet/outlet port fitting 3/4" Relief valve Yes	Qty for pump 1set/carton G.W./N.W: 9/8kgs Carton size: 38.5x31.5x24.5cm Qty for 20'GP 900pcs Qty for 40'GP 1800pcs	Self Priming Vane type Pump Ideal for fueling diesel and kerosene on construction machinery fields. Cast iron material for pump body. Sintered steel Rotor. Acetalic Vanes. Fluroelastomer Seals Duty Cycle: 30 minutes run time The diesel pump has passed strict heat resistance and earthquake resistance test. Relief valve(venting valve) inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling. The rotating blade is made of powder metallurgy steel, it's more durable then common steel material. Fuse protection for overload current is optional. Auto Trigger Cut-Out is optional. Accessary: Aluminium manual nozzle, delivery hose: 1" x 4m oil resistance rubber hose suction hose: 1" x 2m PVC transparent hose with wire core 7ft power cable with brass battery clips. 3/4" inlet and outlet kirsite fitting and stainless steel filter for cleaning. clamps, teflon tape, socket head wrench, screws and nuts
GS-EO-PKS24	Voltage DC 24V Rated Power 0.27HP/200W Rated Current 12 amps Speed Range 3000rpm No-load speed 4200rpm Max suction 3m Max lift 6m Flow rate 40L/min inlet/outlet port fitting 3/4" Relief valve Yes	Qty for pump 1set/carton G.W./N.W: 9/8kgs Carton size: 38.5x31.5x24.5cm Qty for 20'GP 900pcs Qty for 40'GP 1800pcs	Self Priming Vane type Pump Ideal for fueling diesel and kerosene on construction machinery fields. Cast iron material for pump body. Sintered steel Rotor. Acetalic Vanes. Fluroelastomer Seals Duty Cycle: 30 minutes run time The diesel pump has passed strict heat resistance and earthquake resistance test. Relief valve(venting valve) inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling. The rotating blade is made of powder metallurgy steel, it's more durable then common steel material. Fuse protection for overload current is optional. Auto Trigger Cut-Out is optional. Accessary: Aluminium manual nozzle, delivery hose: 1" x 4m oil resistance rubber hose suction hose: 1" x 2m PVC transparent hose with wire core 7ft power cable with brass battery clips. 3/4" inlet and outlet kirsite fitting and stainless steel filter for cleaning. clamps, teflon tape, socket head wrench, screws and nuts
GS-EO-P12S	Voltage DC 12V or 24V Rated Power 0.4HP/300W Rated Current 7.5 amps Speed Range 4000rpm No-load speed 5000rpm Max suction 6m Max lift 11m Flow rate 80L/min inlet/outlet port fitting 1" Relief valve Yes	Packing 6pcs/ctn Outer Carton 55.5x27.5x43cm G.W./N.W: 31/30kg Qty for 20'GP Qty for 40'GP	Big flow rate with new style. Ideal for fueling diesel and kerosene on construction machinery fields. Cast iron material for pump body. 7ft power cable with brass battery clips. The diesel pump has passed strict heat resistance and earthquake resistance test. Relief valve(venting valve) inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling. The rotating blade is made of powder metallurgy steel, it's more durable then common steel material.
GS-EO-PK12/24	Voltage DC 12V/24V Rated Power 0.4HP/300W Rated Current 11/14 amps Speed Range 4000rpm No-load speed 5000rpm Pump flow rate 80L/min Meter flow rate 20-120 L/min Max pressure 3 bar Meter precision ±1% Max suction 6m Max lift 11m Relief valve Yes	Qty 1set/carton Outer Carton 37x32x30cm G.W./N.W. 14/13kg Qty for 20'GP 780pcs Qty for 40'GP 1560pcs	Big flow rate style with pump GS-EO-P12S Ideal for fueling diesel and kerosene on construction machinery fields. Cast iron material for pump body. 7ft power cable with brass battery clips. The diesel pump has passed strict heat resistance and earthquake resistance test. Relief valve(venting valve) inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling. The rotating blade is made of powder metallurgy steel, it's more durable then common steel material.
GS-EO-P220	Voltage: AC220V/50HZ & AC110V/60HZ Rated Power 550W Speed Range 2950rpm Pump flow rate 20-80 L/min Max suction 5m Max lift 15m inlet/outlet port fitting 1" BSPT Relief valve: Yes	Overall View Size: 30x21x23cm Packing 2pcs/ctn Outer Carton 45x32x25cm G.W./N.W. 21/20KG Qty for 20'GP 1620pcs Qty for 40'GP 3240pcs	Ideal for fueling diesel and kerosene. The heavy duty motor drives the wearproof vane. Be allowed to continuous work for hours. Relief valve inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling.
GS-EO-PKS220	Voltage: AC220V/50HZ & AC110V/60HZ Rated Power 550W Speed Range 2950rpm Rated Current 2.5 amps Pump flow rate 20-80 L/min Max suction 5m Max lift 15m inlet/outlet port fitting 1" BSPT Relief valve: Yes Delivery hose Rubber hose 3/4"x4m	Qty for pump 2pcs/ctn Carton for pump 45x32x25cm G.W./N.W. for pump 21/20KG Qty for hose and nozzle 3set /carton G.W./N.W: 16.2/15.kg Carton size 39x32x52cm Qty for 20'GP 400pcs Qty for 40'GP 800pcs	Ideal for fueling diesel and kerosene. The heavy duty motor drives the wearproof vane. Be allowed to continuous work for hours. Relief valve inside the pump head will efficiently protect the motor when overload. It's of great self-sucking strength and swift fueling.
GS-EO-PK220	Voltage: AC220V/50HZ & AC110V/60HZ Rated Power 550W Rated Current 2.5 amps Speed Range 2950rpm Max suction 5m Max lift 15m Pump flow rate 20-80 L/min Meter flow rate 20-120 L/min Meter precision ±1% Max pressure 3 bar inlet/outlet port fitting 1"BSPT Relief valve: Yes Delivery hose Rubber hose 3/4"x4m	Packing 1set/carton Outer Carton 38x33x34 cm G.W./N.W. 17/16kg Qty for 20'GP 750pcs Qty for 40'GP 1500pcs	Ideal for fueling diesel and kerosene on construction machinery fields. Cast iron material for pump body and pump head. With manual nozzle 3/4"NPT and 4m x 3/4" rubber hose. The 220v diesel pump has passed strict heat resistance and earthquake resistance test. The protection grade reached to IP-55. It's of great self-sucking strength and swift fueling. The meter is easy to assemble, adjust and return to zero.
