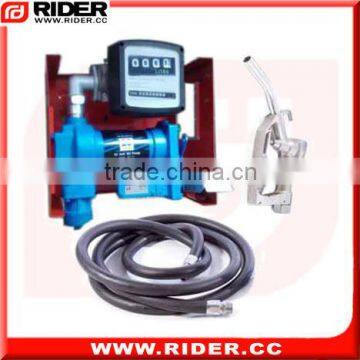

190W 1/4hp 24v 10amp 3600rpm fuel pump gas station

FOB Price

USD $163.46 - $185.86 / Set

10 Sets(Min.Order)

Port Ningbo&Shanghai
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Rider
Model Number	GS-EP-PK24	Theory	Centrifugal Pump
Structure	Other, vane pump	Usage	Oil
Power	Other, Electric, 190W 1/4hp	Standard or Nonstandard	Standard
Fuel	Other, electric	Pressure	High Pressure
Application	Other, oil transfer

Product Description

Specifications

24 Volt DC rotary vane pump
Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane.

Product Description

Voltage DC 24V
Power 190W 1/4hp
Amps 10 amp
Duty cycle 30min
Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel
Max flow 20GPM (75LPM)
Motor Speed 2800rpm
Motor Speed (No-loading) 3600rpm
Discharge pressure 14psi
Min Liquid Temp -15 °F (-26 °C)
Max Liquid Temp 150 °F (66 °C)
Meter flow rate 20-120 L/min
Meter precision ±1%

24 Volt DC rotary vane pump. Anti-explosion design.
Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane.
ball-bearing design for the pump, unnecessary lubrication.
Cast iron material for pump body.
Thermal protection for the motor.
Bypass valve efficiently protect the motor when overload.
Filter screen in the inlet adapter.
Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT
Drum Adapter Thread: 2" NPT
3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter
Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle)
Mechanical meter with aluminium die-casting body.
Easy to assemble, adjust and return to zero.

Packaging & Shipping

G.W./N.W.: 23/21kg
Packing 1set/carton
Outer Carton 43x40x31cm

Product details

More products

Model	Specification	Packing info.	Feature
GS-EP-P12	Voltage DC 12V Power 190W 1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: 37x38x38cm G.W./N.W: 10/9kgs Packing 1pcs/carton Carton size 38x39x39cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT
GS-EP-P24	Voltage DC 24V Power 190W 1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: 37x38x38cm G.W./N.W: 10/9kgs Packing 1pcs/carton Carton size 38x39x39cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT
GS-EP-PKS12	Voltage DC 12V Power 190W 1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: G.W./N.W: 14.5/14kgs Packing 1set/carton Carton size 43x40x31cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle)
GS-EP-PKS24	Voltage DC 24V Power 190W 1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C)	Overall View Size: G.W./N.W: 14.5/14kgs Packing 1set/carton Carton size 43x40x31cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle)
GS-EP-PK12	Voltage DC 12V Power 190W 1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 23/21kg Packing 1set/carton Outer Carton 43x40x31cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EP-PK24	Voltage DC 24V Power 190W 1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 23/21kg Packing 1set/carton Outer Carton 43x40x31cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EP-PK12-1	Voltage DC 12V Power 190W 1/4hp Amps 20 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 17.5/17kg Packing 1set/carton Outer Carton 43x40x31cm	12 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EP-PK24-1	Voltage DC 24V Power 190W 1/4hp Amps 10 amp Duty cycle 30min Max suction lift (Dry) 2.1m for Petrol, 2.5m for diesel Max flow 20GPM (75LPM) Motor Speed 2800rpm Motor Speed (No-loading) 3600rpm Discharge pressure 14psi Min Liquid Temp -15 °F (-26 °C) Max Liquid Temp 150 °F (66 °C) Meter flow rate 20-120 L/min Meter precision ±1%	G.W./N.W.: 17.5/17kg Packing 1set/carton Outer Carton 43x40x31cm	24 Volt DC rotary vane pump. Anti-explosion design. Ideal for petrol, diesel, kerosene, mineral spirits, heptane and hexane. ball-bearing design for the pump, unnecessary lubrication. Cast iron material for pump body. Thermal protection for the motor. Bypass valve efficiently protect the motor when overload. Filter screen in the inlet adapter. Inlet Fitting: 1" NPT, Outlet Fitting:1" NPT Drum Adapter Thread: 2" NPT 3/4" x 4m oil resistant rubber hose with static discharge core,1" x 2m steel core PVC suction hose with filter Inleter 3/4' aluminium manual nozzle. (Optional self-closing nozzle) Mechanical meter with aluminium die-casting body. Easy to assemble, adjust and return to zero.
GS-EO-PK220	Voltage AC230V 50HZ (±10%) Rated Power 600W Speed Range 2800rpm Pump flow rate 40 L/min Max suction 5m Max lift 20m Meter precision ±1% Inlet & Outlet pipe dia BSPT/NPT1" Suction hose 2m Delivery hose especially fuel hose 4m	Packing 1set/carton Outer Carton 46 x 28 x 47 cm G.W./N.W. 14/13KG	Self-priming Pump AC 230V for diesel and kerosene Binding Fittings in brass Backstop to not primed
