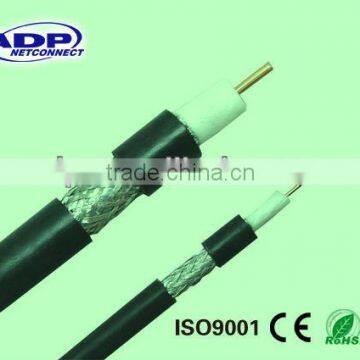

RG6/RG58/RG11 Coaxial Cable
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | adp | |
| Type | Coaxial | Number of Conductors | 1 |
Product Description
Specifications
RG6/RG58/RG11 Coaxial Cable1 ,Stable quality with competitive price
2 ,CE RoHS ISO9001 Certificate
3 ,Good reputation
Note:
1) Center conductor: TC, BC, and CCS available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding wire: AL, BC and TC available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.
Characteristics:
Impedance: 75+/-2 Ohm
Velocity of Propagation: 66%
Capacitance: 93.5pF/m
Return Loss: 23dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
30MHz: 6.30dB 1500MHz: 45.60dB
50MHz: 8.10dB 1800MHz: 50.10dB
150MHz: 14.10dB 2000MHz: 53.00dB
220MHz: 17.10dB 2500MHz: 59.50dB
450MHz: 24.60dB 5800MHZ: 93.10dB
900MHz: 35.00dB
Technical data:
Construction and Dimension | |||||
Item | RG59 | RG58 | RG6 | RG7 | RG11 |
Material of inner conductor | Cu | Cu | Cu | Cu | Cu |
Diameter of inner conductor(mm) | 0.81±0.02 | 19*0.20±0.01 | 1.00±0.02 | 1.29±0.02 | 1.63±0.02 |
Material of dielectric | Foam PE | PE | Foam PE | Foam PE | Foam PE |
Diameter of Dielectric(mm) | 3.66±0.15 | 2.95 | 4.57±0.01 | 5.72 | 7.11 |
Material of Shield | ALfoil+Al brading | BC/TC braiding | ALfoil+Al brading | ALfoil+Al brading | ALfoil+Al brading |
Coverage | 40%--95% | 95% | 40%--95% | 40%--95% | 40%--95% |
Diameter of 1st outer conductor(mm) | 3.90 | 4.90 | 5.90 | 7.52 | |
Diameter of 2nd outer conductor | 4.12 | 5.00 | 7.80 | ||
Material of Jacket | PVCPE | PVCPE | PVCPE | PVCPE | PVCPE |
Diameter of Jacket | 6.30 | 4.95 | 6.90 | 8.10 | 10.16 |
