0.6/1kv ABC Cable

0.6/1kv  ABC Cable

1.Applications of XLPE,PVC or PE insulated  ABC Cable

Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service

for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed

75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

2.Specification of XLPE,PVC or PE  insulated  ABC Cable

service drop cable meets or exceeds the following ASTM specifications:

· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

· B-231 Aluminum Conductors, Concentric-Lay-Stranded.

· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire

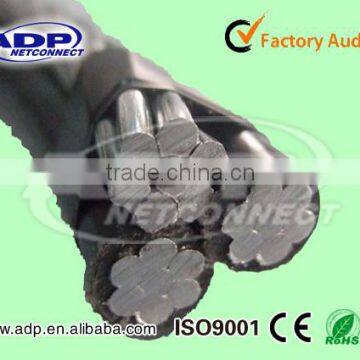

3.Construction of XLPE,PVC or PE  insulated  ABC Cable

Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or

crosslinked polyethylene (XLP). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

4.Teachnical Data of XLPE,PVC or PE insulated ABC Cable

A.Duplex service drop cable:

Code word: ABC cable Chihuahua, ABC cable Vizsla, ABC cable Harrier, ABC cable Whippet, ABC cable Schnauzer, ABC cable Heeler, ABC cable Pekingese, ABC cable Collie, ABC cable Dachshund, ABC cable Spaniel,  ABC Cable Doberman, ABC cable Malemute, ABC cable Setter, ABC cable Shepherd, ABC cable Eskimo, ABC cable Terrier, AB cable Chow, ABC cable Bull

B.Triplex service drop cable

Code word: ABC cable Minex, ABC cable Hippa, ABC cable Prawn, ABC cable Barnacle, ABC cable Shrimp, ABC cable Gammarus, ABC cable Leda, ABC cable Dungenese, ABC cable Cyclops, ABC cable Flustra, ABC cable Lepas, ABC cable Artemia, ABC cable Crab, ABC cable Solaster, ABC cable Sandcrab, ABC cable Echinus, ABC cable Fulgar, ABC cable Arca, ABC cable Patella, ABC cable Oyster, ABC cable Clam, ABC cable Murex, ABC cable Purpura, ABC cable Nassa, ABC cable Melita, ABC cable Portunus, ABC cable Nannynose, ABC cable Paludina, ABC cable Voluta , ABC cable Whelk, ABC cable Periwinkle, ABC cable Conch, ABC cable Neritina, ABC cable Cenia, ABC cable Runcina, ABC cable Triton, ABC cable Mursia, ABC cable Zuzara, ABC cable Limpet, ABC cable Scallop, ABC cable Strombus, ABC cable Cockle, ABC cable Janthina, ABC cable Ranella, ABC cable Cavolinia, ABC cable Clio, ABC cable Aega, ABC cable Cerapus

C.Quadruplex service drop cable

Code word: ABC cable Bay, ABC cable French Coach, ABC cable German Coach, ABC cable Arabian, ABC cable Belgian, ABC cable Shetland, ABC cable Thoroughbred, ABC cable Trotter, ABC cable Walking, ABC cable Clydesdale, ABC cable Pinto, ABC cable Mustang, ABC cable Criollo, ABC cable Percheron, ABC cable Hanovarian, ABC cable Oldenburg, ABC cable Lippizaner, ABC cable Morochuca, ABC cable Chola, ABC cable Morgan, ABC cable Hackney, ABC cable Palomino, ABC cable Costena, ABC cable Grullo, ABC cable Suffolk, ABC cable Appaloosa, ABC cable Gelding, ABC cable Bronco

ABC Cable NFC 33-209

 3x35+54.6+16  3x50+54.6+16  3x70+54.6+16 3x95+70+16  3x120+70+16 3x150+70+16 mm2

 2x16mm2 2x25mm2 2x35mm2 2x50mm2 4x16mm2 4x25mm2 4x35mm2

Parameters:
