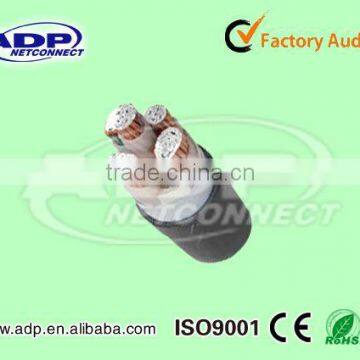

4*35mm2, 0.6/1kv, Steel Tape Armoured Power Cable size
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADP&OEM | |
| Model Number | PVC | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Other, as customer request | |
| Conductor Material | Aluminum | Jacket | PVC |
Product Description
4*35mm2, 0.6/1kv, Steel Tape Armoured Power Cable size
1) Standard: IEC60502, GB/T 12706
2). Voltage: 0.6/1KV
Conductor:
Solid or stranded Copper/Aluminum
-Insulation:
Cross-linked polyethylene( XLPE or PVC)
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Steel tape/Unarmored/Aluminum wire
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)
3). Operating characteristics:
Rated power-frequency voltage u0/u: 0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): Cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter, the bending radius of multi-core cable should not be less than 15 times of the cable diameter
4)Application:
1, For laying indoors, in tunnel or cable trench, unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct.
2, For laying indoors, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear pulling force.
5) Four core electrical power cable specification
| Cable size (sq.mm) | Conductor type | Nominal thickness of PVC insulation(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 20ºC (Ω/km) |
| 4x1.5 | RE or RM | 0.8 | 1.8 | 11.0 | 12.1 |
| 4x2.5 | RE or RM | 0.8 | 1.8 | 11.9 | 7.41 |
| 4x4 | RE or RM | 1.0 | 1.8 | 14.0 | 4.61 |
| 4x6 | RE or RM | 1.0 | 1.8 | 15.3 | 3.08 |
| 4x10 | RM | 1.0 | 1.8 | 18.4 | 1.83 |
| 4x16 | RM | 1.0 | 1.8 | 20.9 | 1.15 |
| 4x25 | SM | 1.2 | 1.8 | 21.9 | 0.727 |
| 4x35 | SM | 1.2 | 1.8 | 24.1 | 0.524 |
| 4x50 | SM | 1.4 | 1.9 | 27.6 | 0.387 |
| 4x70 | SM | 1.4 | 2.1 | 31.4 | 0.268 |
| 4x95 | SM | 1.6 | 2.2 | 36.1 | 0.193 |
| 4x120 | SM | 1.6 | 2.3 | 39.3 | 0.153 |
| 4x150 | SM | 1.8 | 2.5 | 43.5 | 0.124 |
| 4x185 | SM | 2.0 | 2.7 | 48.4 | 0.0991 |
| 4x240 | SM | 2.2 | 2.9 | 54.6 | 0.0754 |
| 4x300 | SM | 2.4 | 3.1 | 60.4 | 0.0601 |
