Underground Cable Steel tape Armoured Copper/CCA/Aluminum Power cable

FOB Price

US$ 0.3 - 5 / Meter

5000 Meters(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ADP&OEM
Model Number	PVC	Insulation Material	XLPE
Type	Low Voltage	Application	Other, as customer request
Conductor Material	Aluminum	Jacket	PVC

Product Description

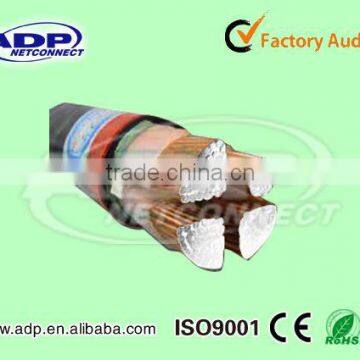

Underground Cable Steel tape Armoured Copper/CCA/Aluminum Power cable

1) Standard: IEC60502, GB/T 12706

2). Voltage: 0.6/1KV
Conductor:
Solid or stranded Copper/Aluminum
-Insulation:
Cross-linked polyethylene( XLPE or PVC)
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Steel tape/Unarmored/Aluminum wire
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)

3). Operating characteristics:
Rated power-frequency voltage u0/u: 0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): Cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter, the bending radius of multi-core cable should not be less than 15 times of the cable diameter

4)Application:
1, For laying indoors, in tunnel or cable trench, unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct.
2, For laying indoors, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear pulling force.

5) Four core electrical power cable specification

Cable size (sq.mm)	Conductor type	Nominal thickness of PVC insulation(mm)	Nominal thickness of PVC sheath(mm)	Approx. cable overall diameter (mm)	Max. D.C resistance @ 20ºC (Ω/km)
4x1.5	RE or RM	0.8	1.8	11.0	12.1
4x2.5	RE or RM	0.8	1.8	11.9	7.41
4x4	RE or RM	1.0	1.8	14.0	4.61
4x6	RE or RM	1.0	1.8	15.3	3.08
4x10	RM	1.0	1.8	18.4	1.83
4x16	RM	1.0	1.8	20.9	1.15
4x25	SM	1.2	1.8	21.9	0.727
4x35	SM	1.2	1.8	24.1	0.524
4x50	SM	1.4	1.9	27.6	0.387
4x70	SM	1.4	2.1	31.4	0.268
4x95	SM	1.6	2.2	36.1	0.193
4x120	SM	1.6	2.3	39.3	0.153
4x150	SM	1.8	2.5	43.5	0.124
4x185	SM	2.0	2.7	48.4	0.0991
4x240	SM	2.2	2.9	54.6	0.0754
4x300	SM	2.4	3.1	60.4	0.0601
